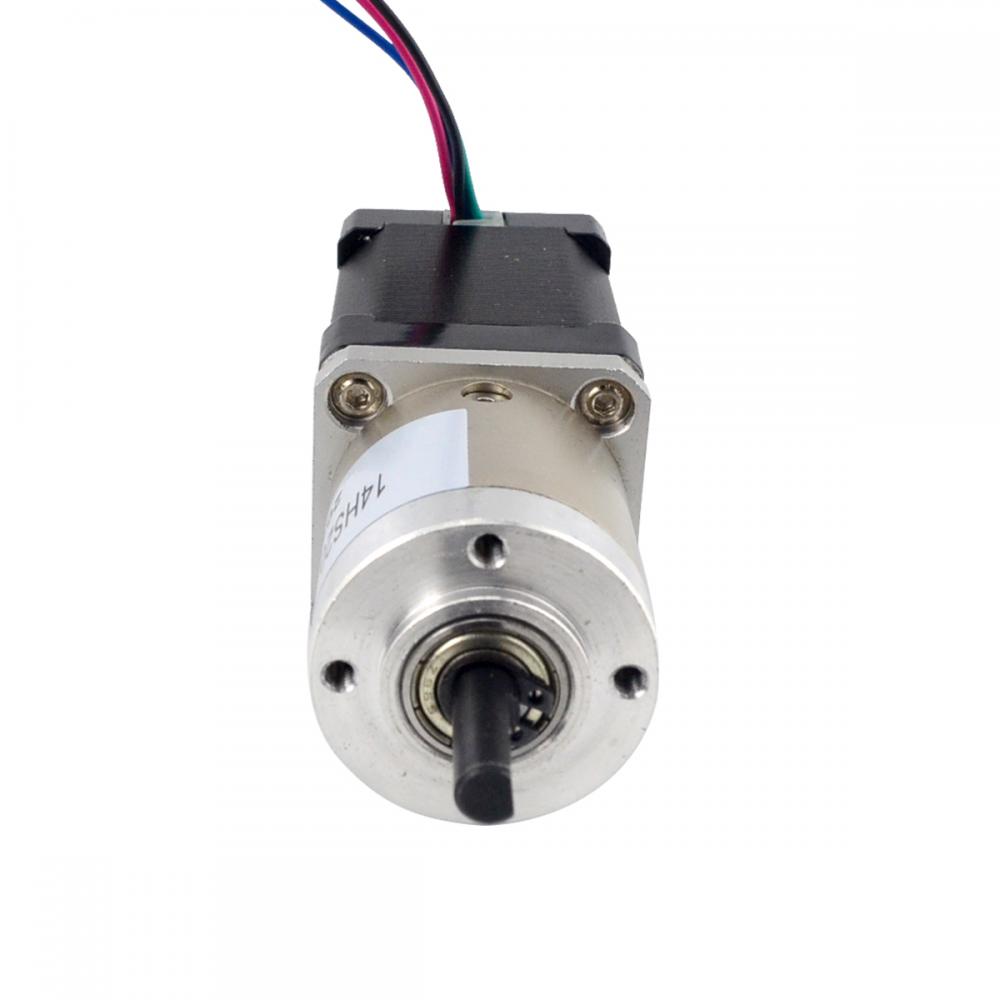

14HS20-1504D-PG14

14HS20-1504D-PG14

D-cut Shaft,Dual Shaft, Torque type planetary gearbox, Gear ratio 13.73, Efficiency 80%, Rated current 1.50A, 2 Phase Bipolar, Nema 14 size, length 52mm(Motor) + 36.8mm(Gearbox)
USD 54.38
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Motor Specification
Inductance(mH) 3.8
Motor Nema Size Nema 14
Phase Resistance(ohm) 2.8
Rated Current(A) 1.5
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 40
Holding Torque w/o Gearbox(oz.in) 56.6
No. of Lead 4
Lead Length(mm) 500
Shaft Diameter(mm) 6
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 80%
Gear Ratio 13.73:1
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 400
Max. Permissible Torque(oz.in) 566.56
Moment Permissible Torque(Ncm) 800
Moment Permissible Torque(oz.in) 1133.12
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Physical Specification
Gearbox Length(mm) 36.8
Weight(g) 450
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
Shaft Length(mm) 18
