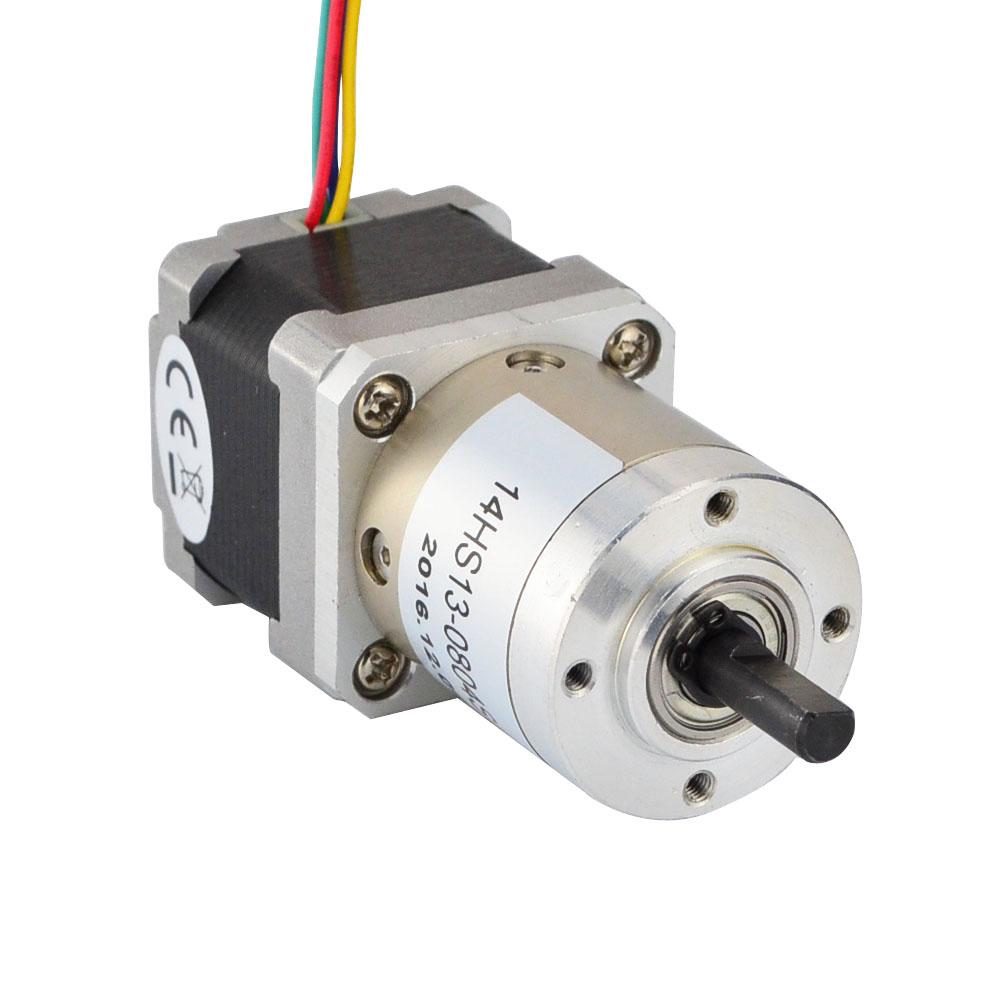

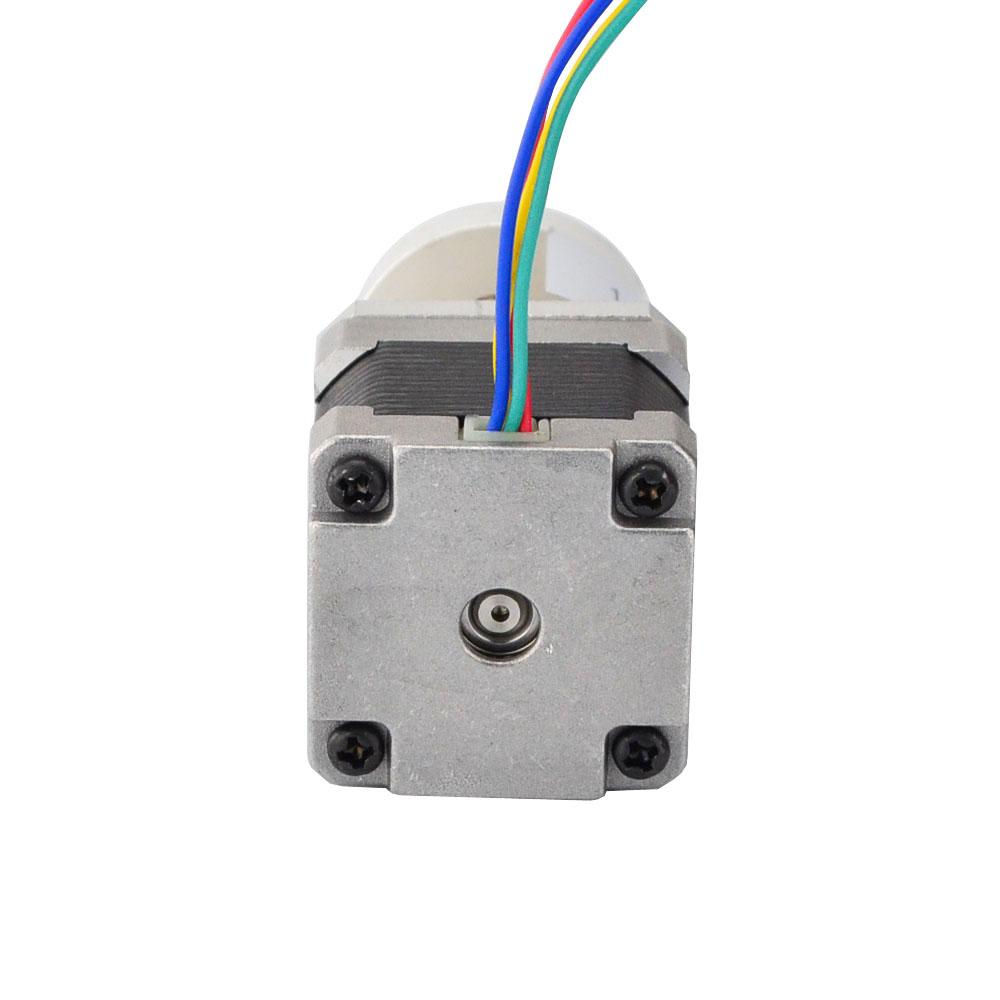

14HS13-0804S-PG27
14HS13-0804S-PG27
14HS13-0804S-PG27
D-cut Shaft,Low Cost,
Torque type planetary gearbox,
Gear ratio 26.85, Efficiency 81%,
Rated current 1.00A, 2 Phase Bipolar,
Nema 14 size, length 34mm(Motor) + 35.8mm(Gearbox)
USD 44.70
Availability: 120
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Motor Specification | |
| Inductance(mH) | 4.5 |
| Motor Nema Size | Nema 14 |
| Phase Resistance(ohm) | 3.2 |
| Rated Current(A) | 1 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 18 |
| Holding Torque w/o Gearbox(oz.in) | 19.8 |
| Gearbox Specification | |
| Backlash at No-load(Max.°) | 1 |
| Efficiency | 81% |
| Gear Ratio | 26.85:1 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 300 |
| Max. Permissible Torque(oz.in) | 424.8 |
| Moment Permissible Torque(Ncm) | 500 |
| Shaft Maximum Axial Load(N) | 50 |
| Shaft Maximum Radial Load(N) | 100 |
| Physical Specification | |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 18 |
| Gearbox Length(mm) | 35.8 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 400 |
| Motor Length(mm) | 34 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
