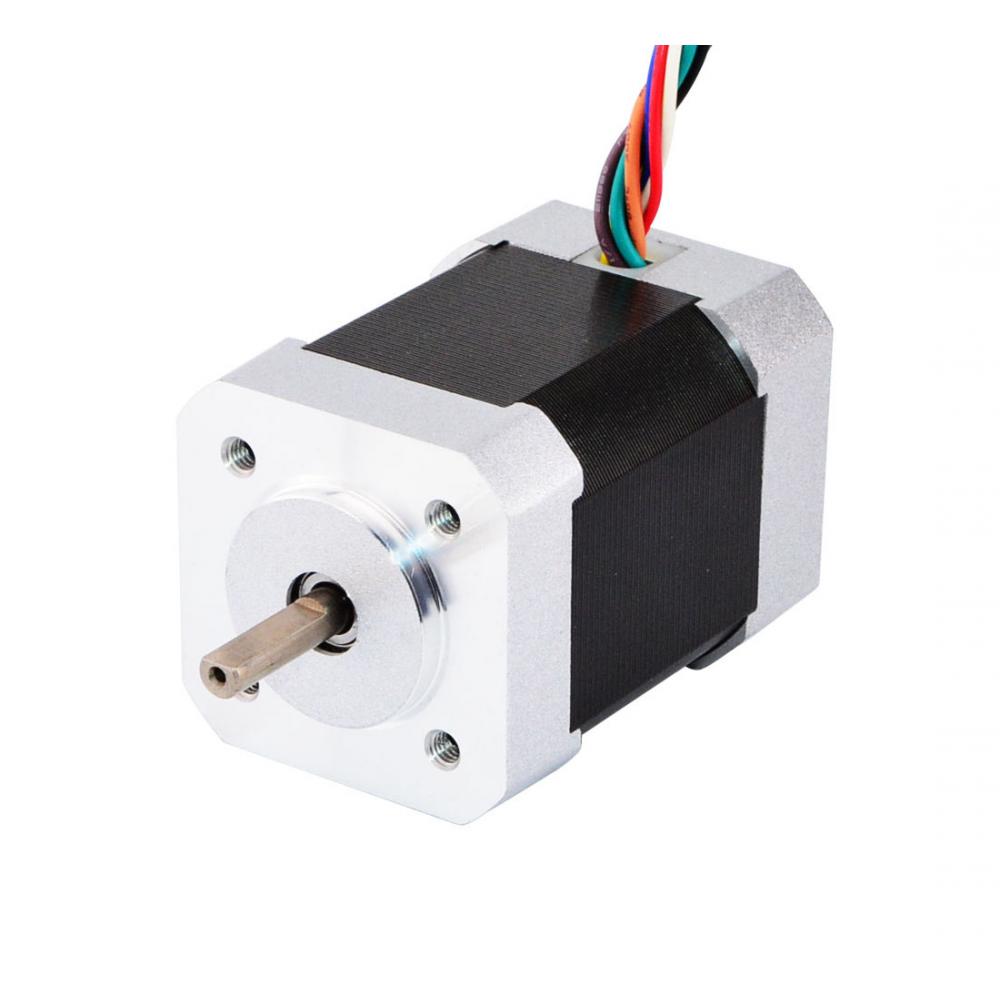

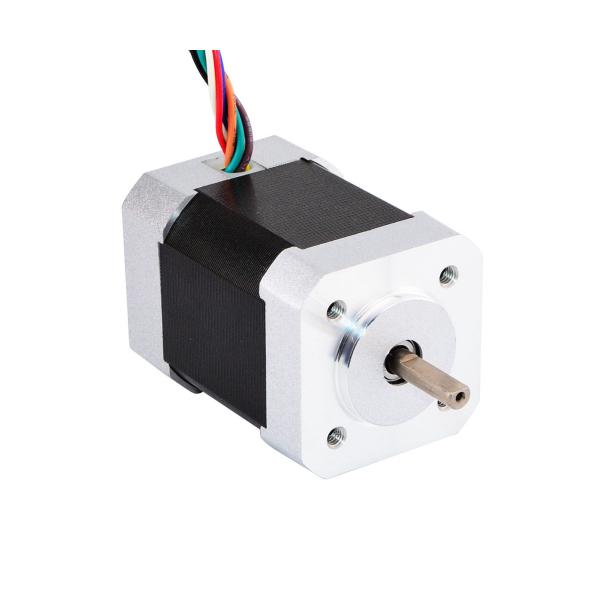

42BLS60-24-01

42BLS60-24-01

D-Cut Shaft, Dual Shaft, 3 Phase, 8 Poles, Rated Voltage 24V, Rated Power 52.5W, Rated Speed 4000RPM, Rated Torque 0.125Nm(17.71oz.in)
USD 39.88
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification(BLDC)
Insulation Class Class B
Phase 3
Poles 8
Rated Current(A) 3.4
Rated Power(W) 52.5
Rated Speed(rpm) 4000±10%
Rated Torque(Nm) 0.125
Rated Torque(oz.in) 17.7
Rated Voltage(V) 24
Sensor Type Hall Sensor
Physical Specification
No. of Lead 8
Weight(g) 600
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Flange Size(mm) 42*42
Body Length(mm) 59.2
