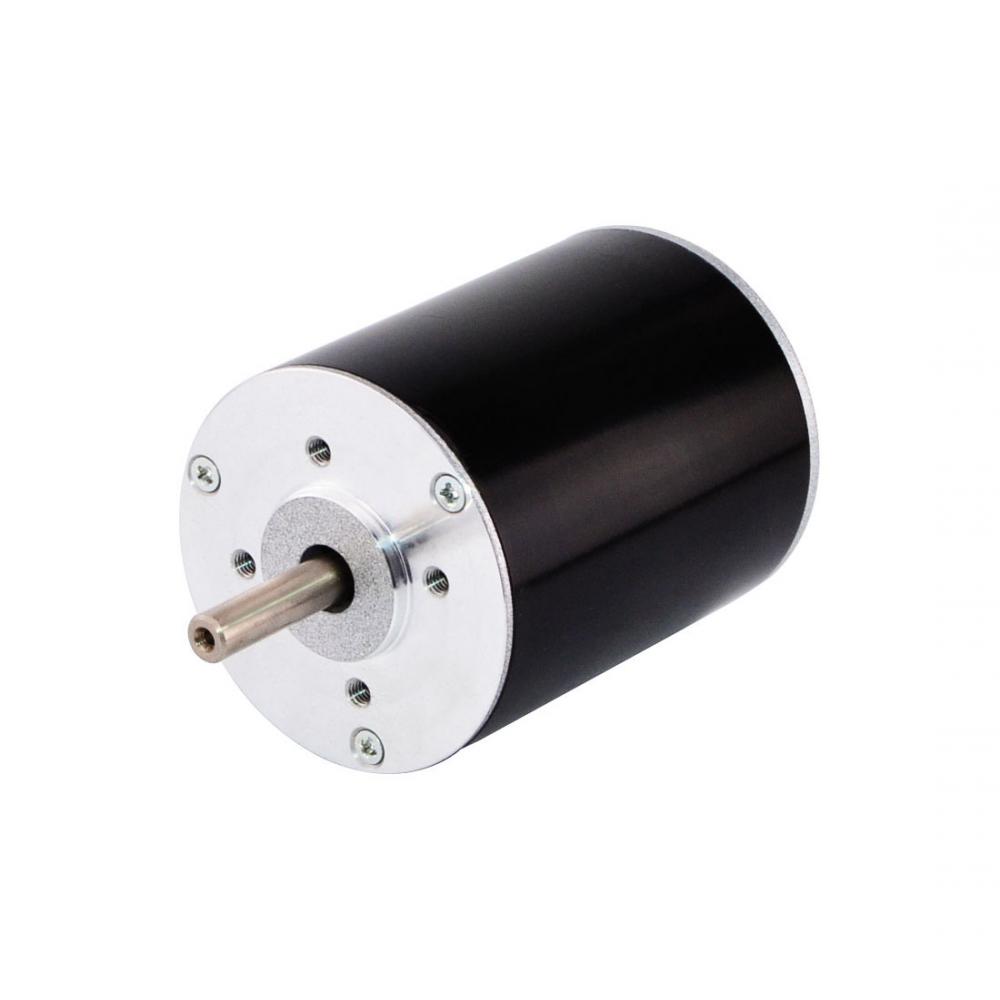

42BLR53-12-01

Low Losses, Low Cost, 3 Phase, 4 Poles, Rated Voltage 12V, Rated Power 15W, Rated Speed 3000RPM, Rated Torque 0.048Nm(67.99oz.in)

USD 39.88
Availability: 68
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification(BLDC)
Insulation Class Class B
Phase 3
Poles 4
Rated Current(A) 1.9
Rated Power(W) 15
Rated Speed(rpm) 3000±10%
Rated Torque(Nm) 0.048
Rated Torque(oz.in) 6.8
Rated Voltage(V) 12
Sensor Type Hall Sensor
Physical Specification
Shaft Diameter(mm) 5
No. of Lead 8
Weight(g) 350
Body Length(mm) 53
Shaft Length(mm) 20
Flange Size(mm) Ф42
