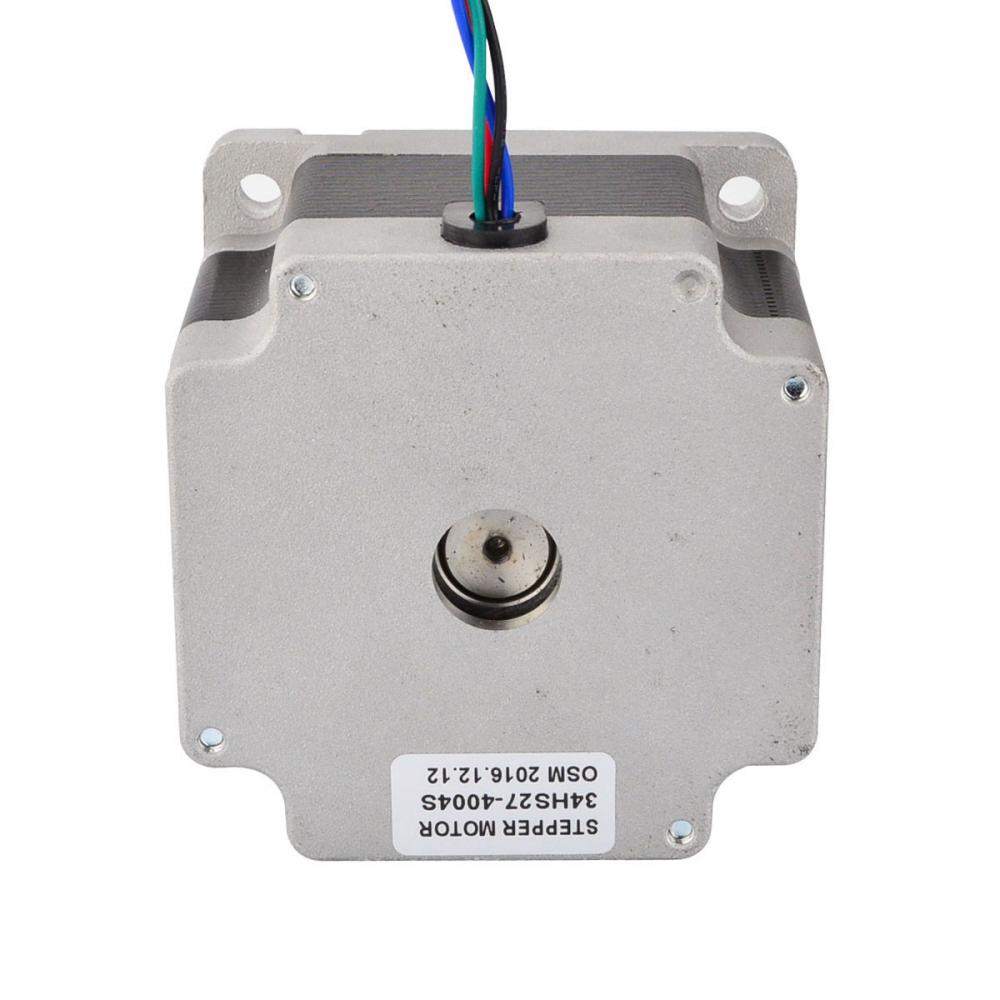

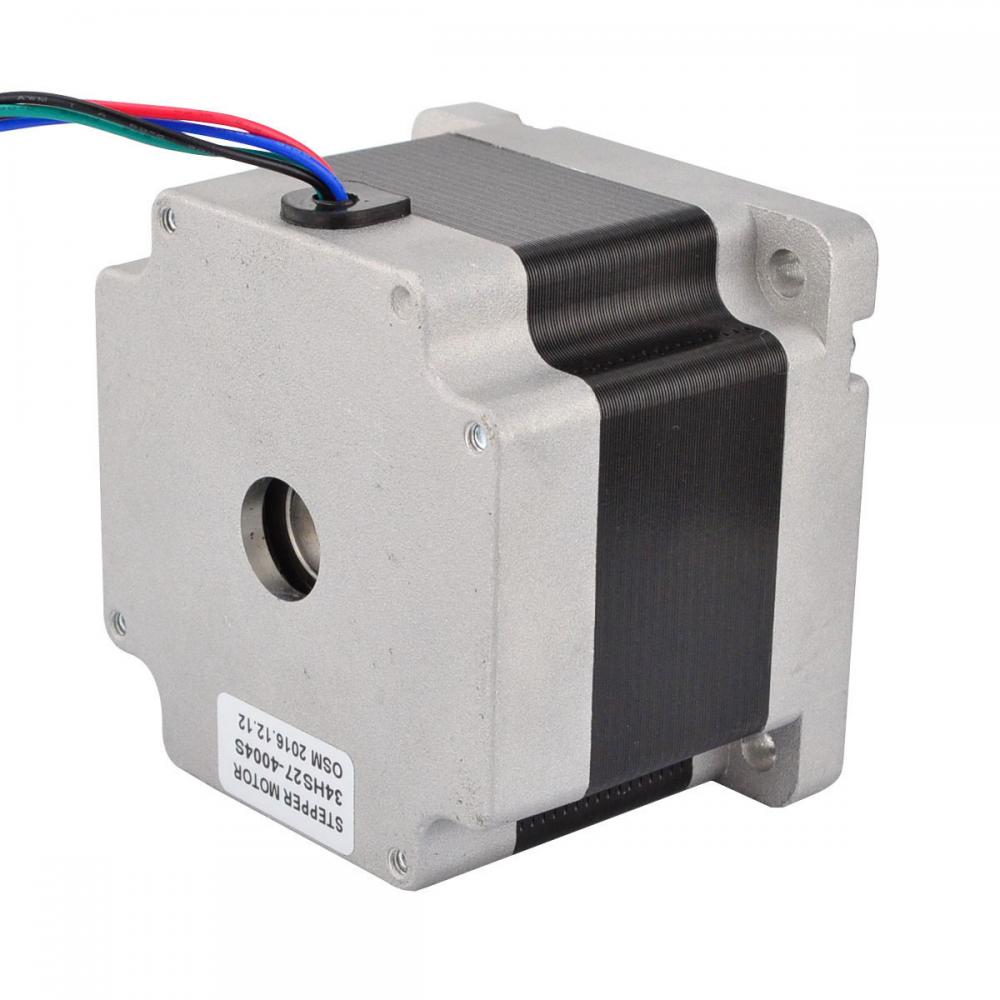

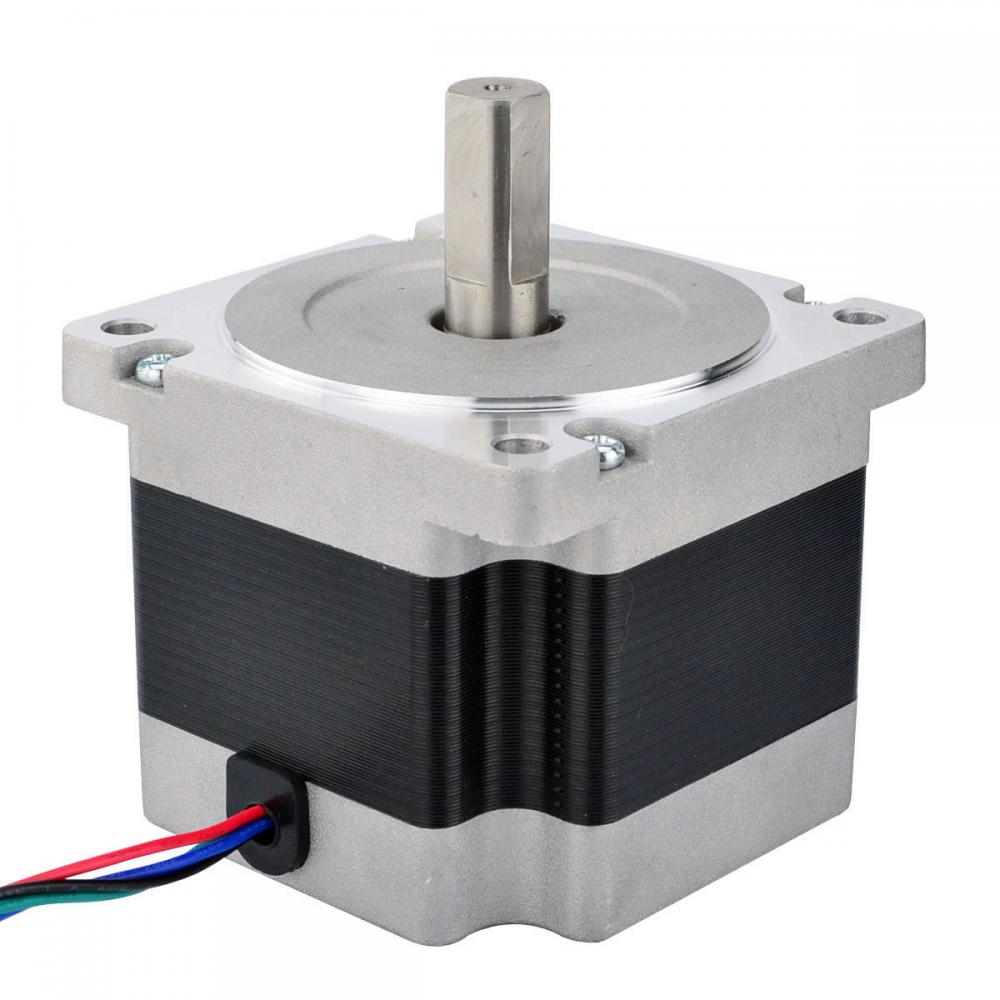

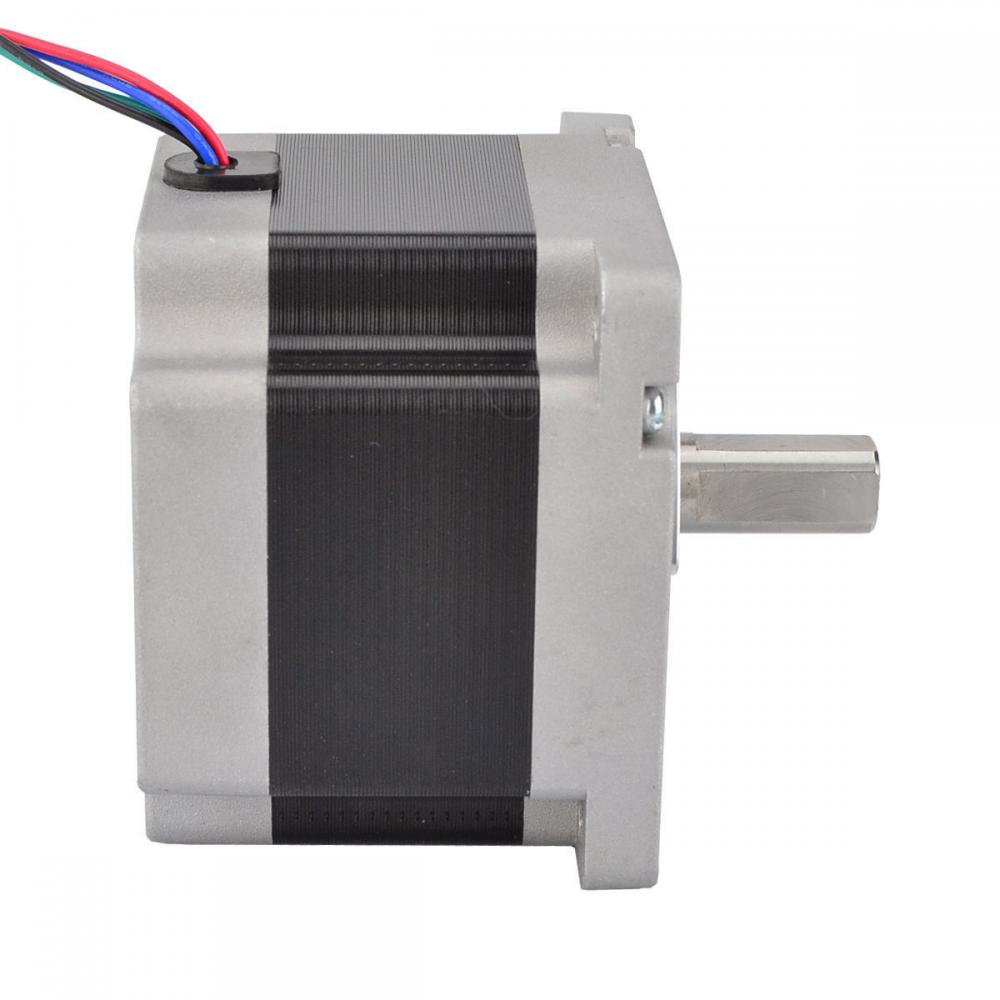

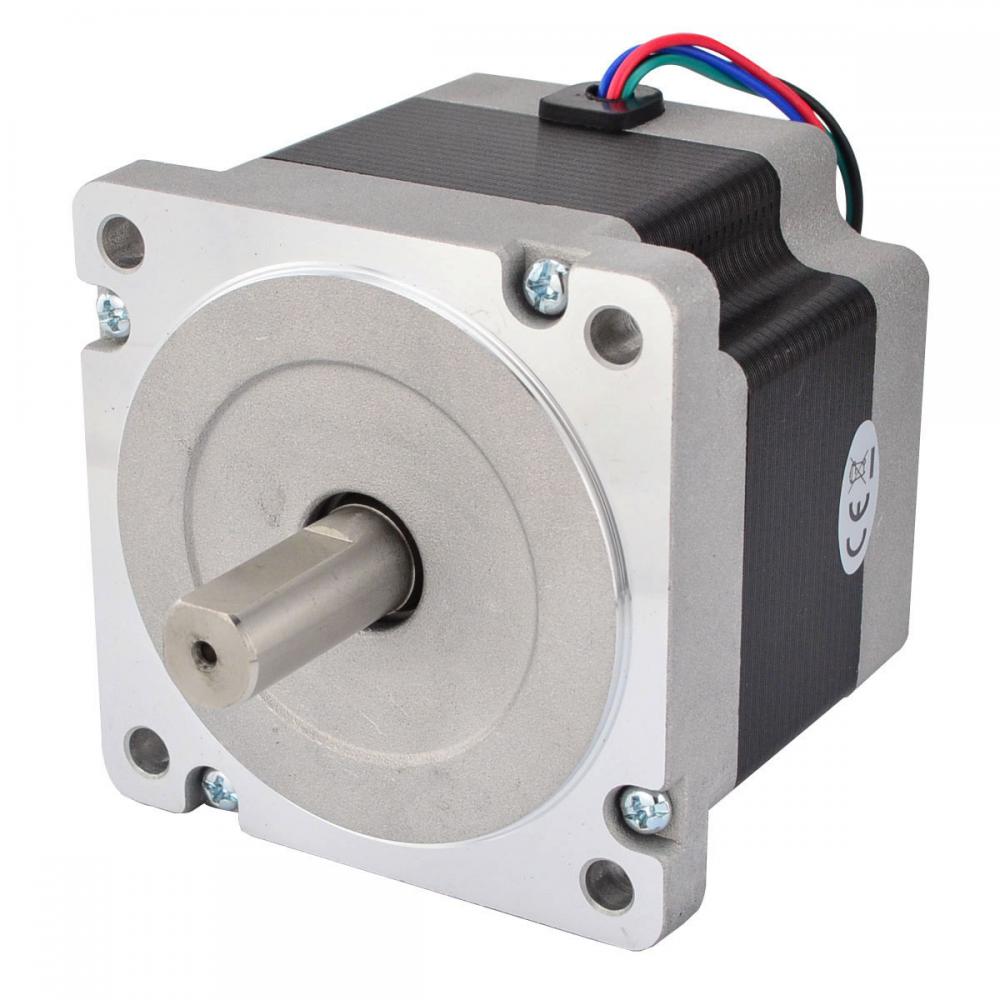

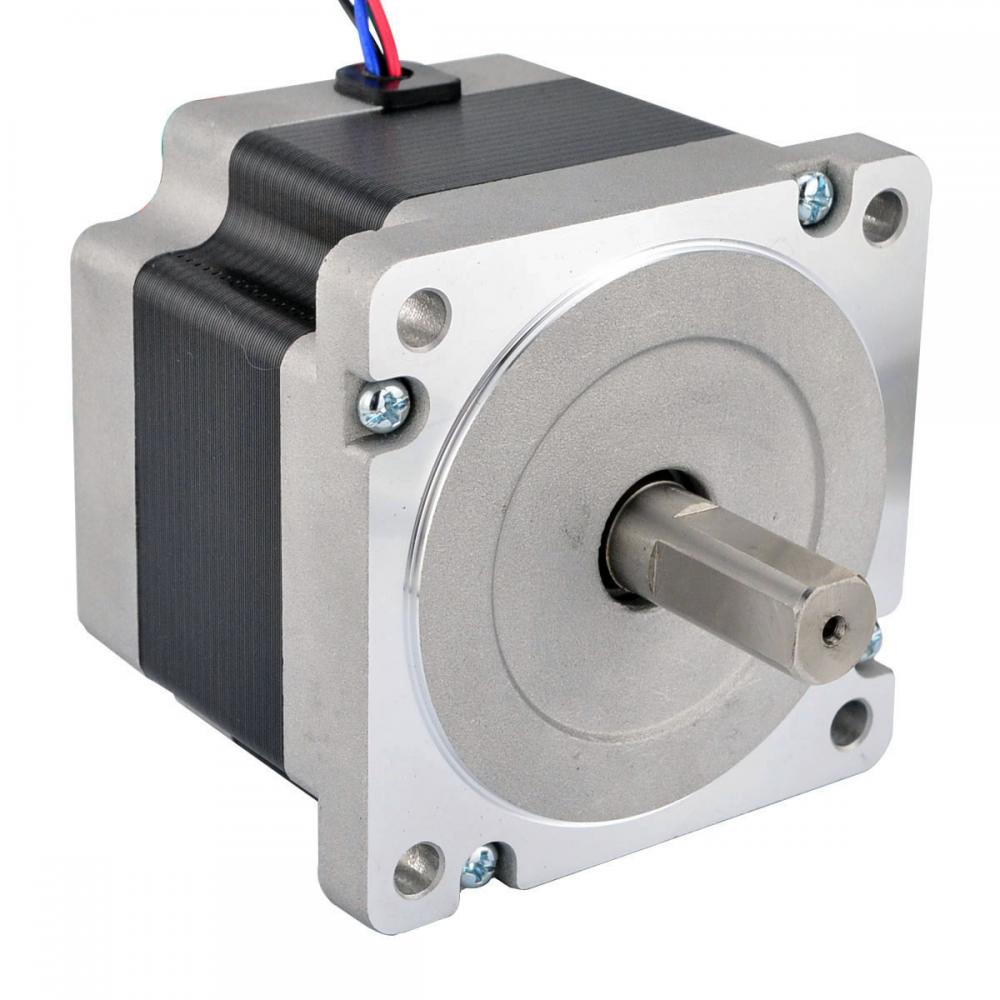

34HS27-4004S

34HS27-4004S

D-cut Shaft, High Torque, Nema 34 - 86x86x68mm, 1.8 deg. (200 steps/rev), Rated current 4.00A, 2 Phase Bipolar, Holding torque 3.40Nm(481.576oz-in)
USD 59.93
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 340
Inductance(mH) 4.4
Phase Resistance(ohm) 0.7
Rated Current(A) 4
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 14
Shaft Length(mm) 32
No. of Lead 4
Lead Length(mm) 500
Weight(g) 1800
Single Shaft/Dual Shaft Single Shaft
Body Length(mm) 68
