11HS20-0674D-PG14

11HS20-0674D-PG14

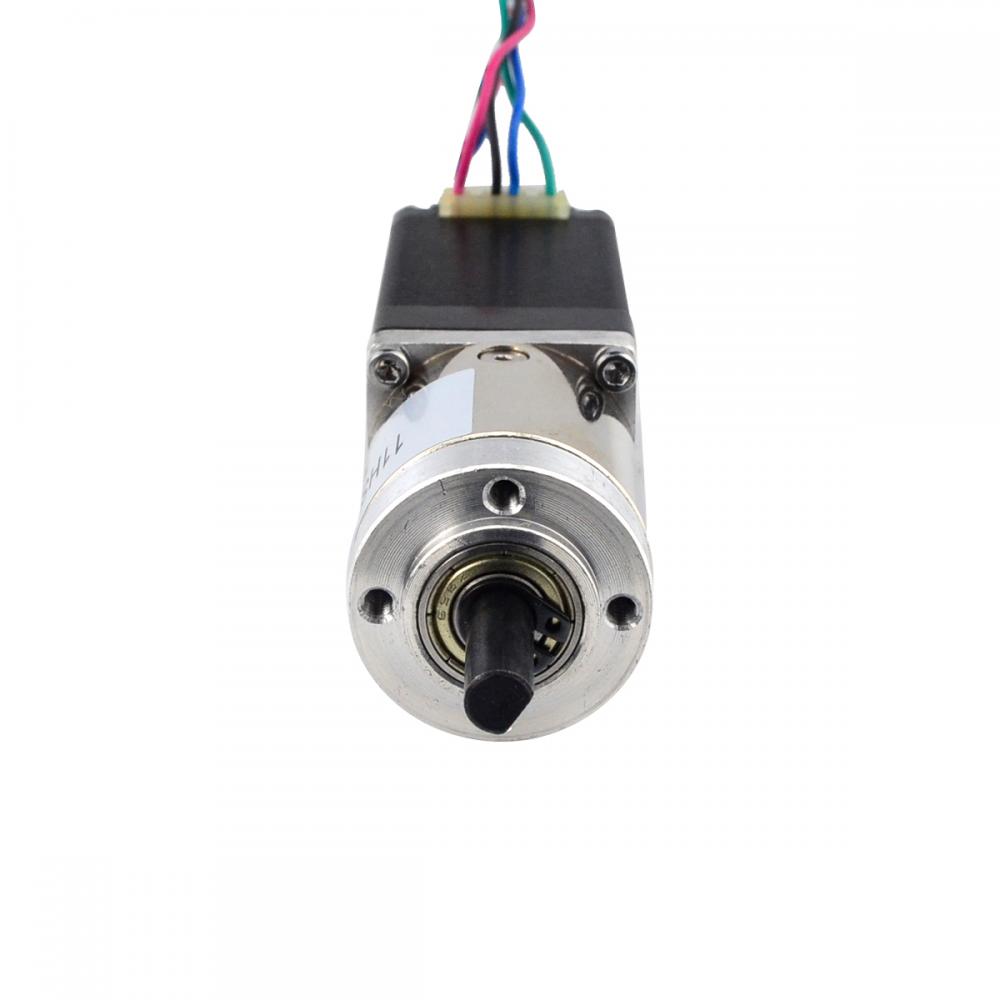

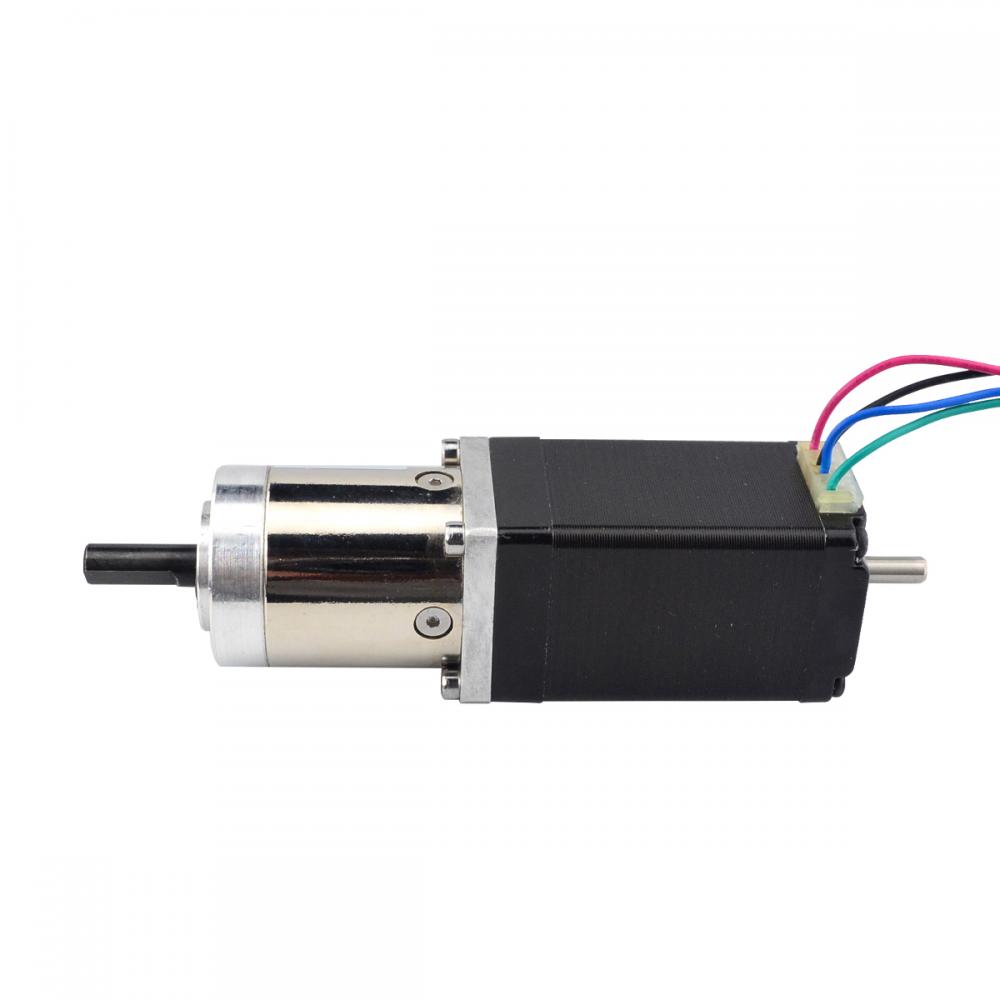

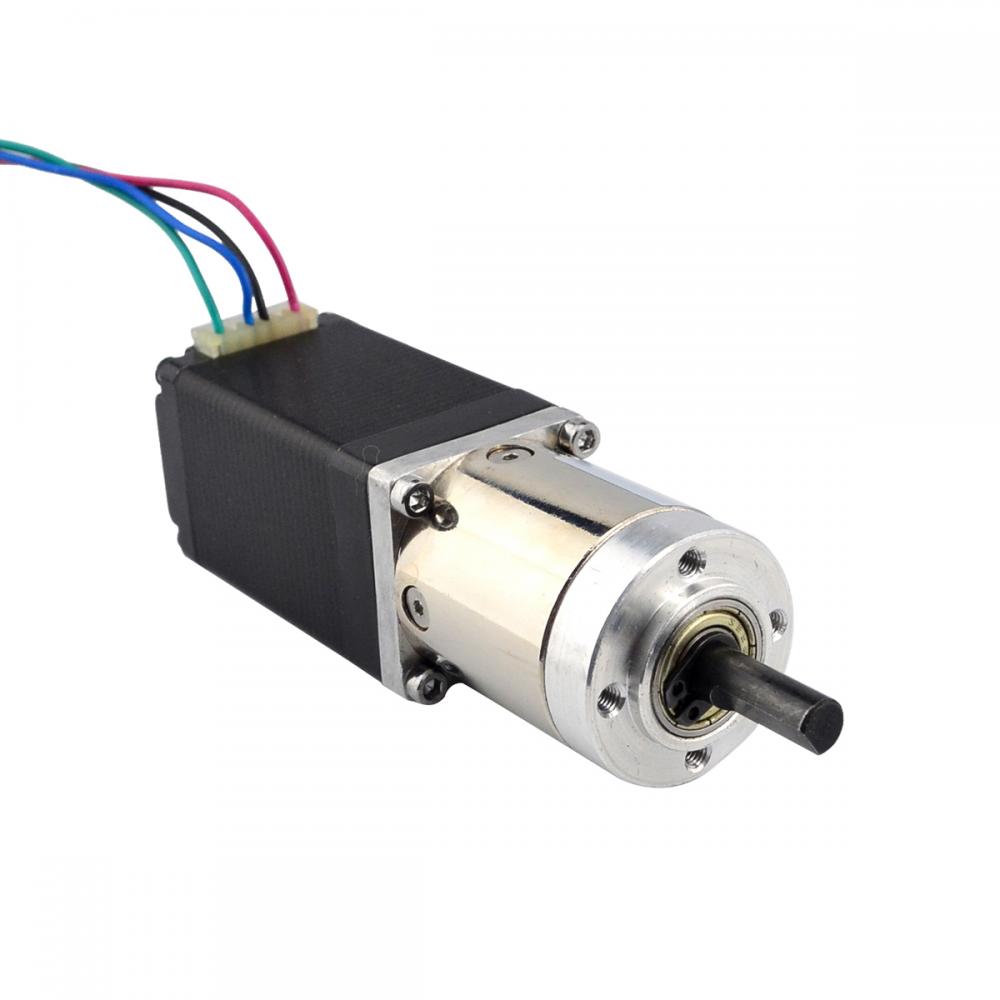

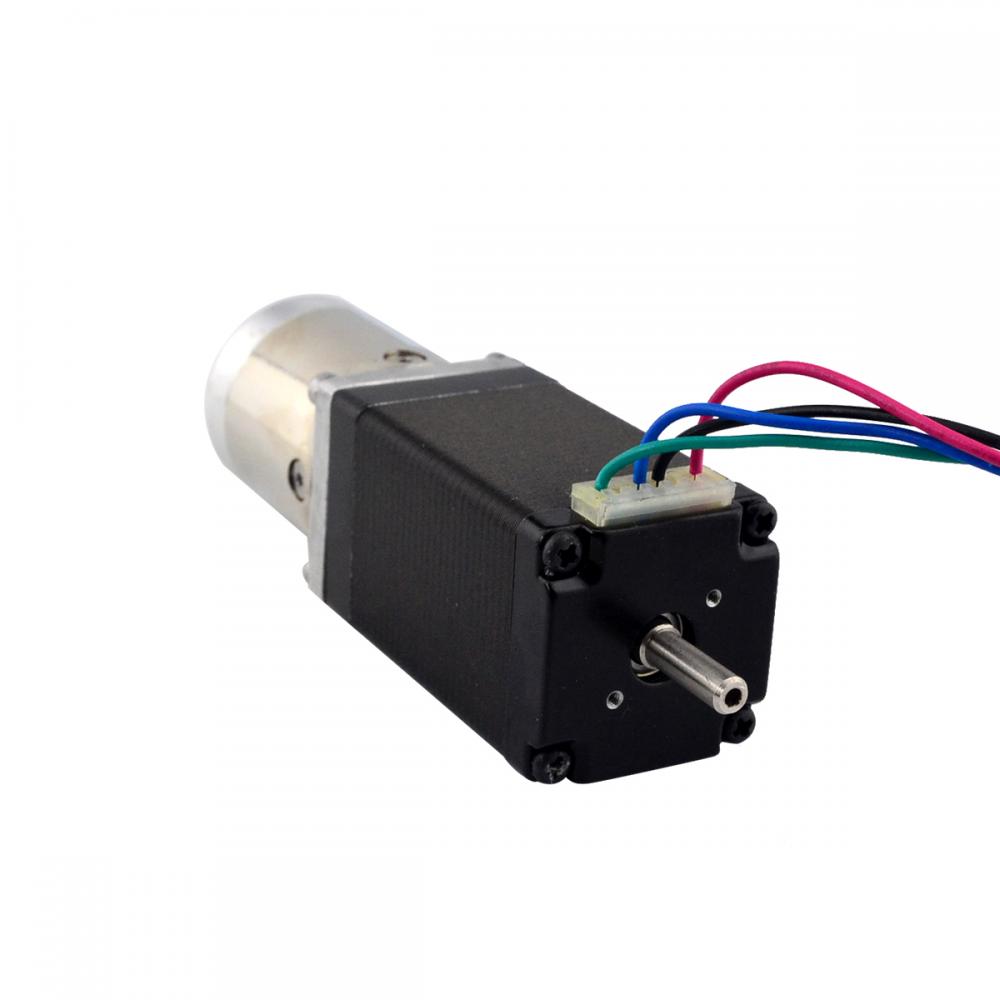

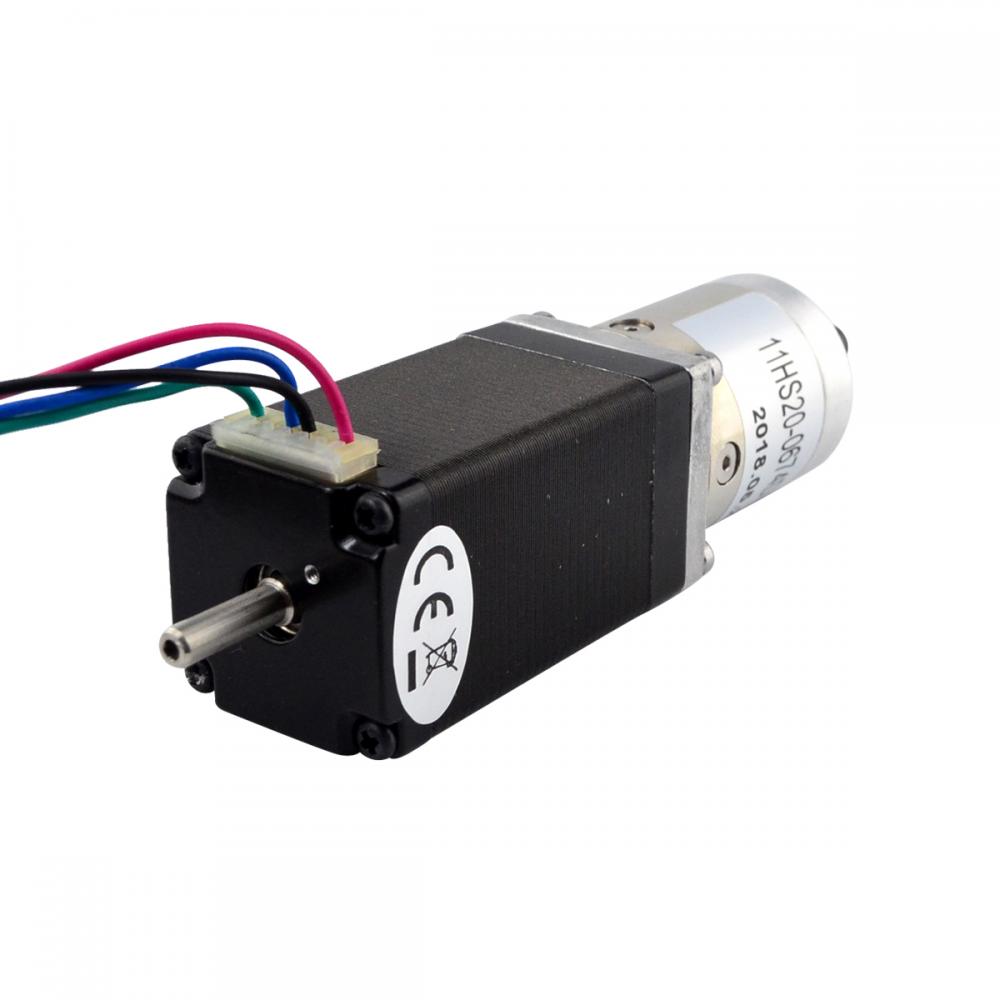

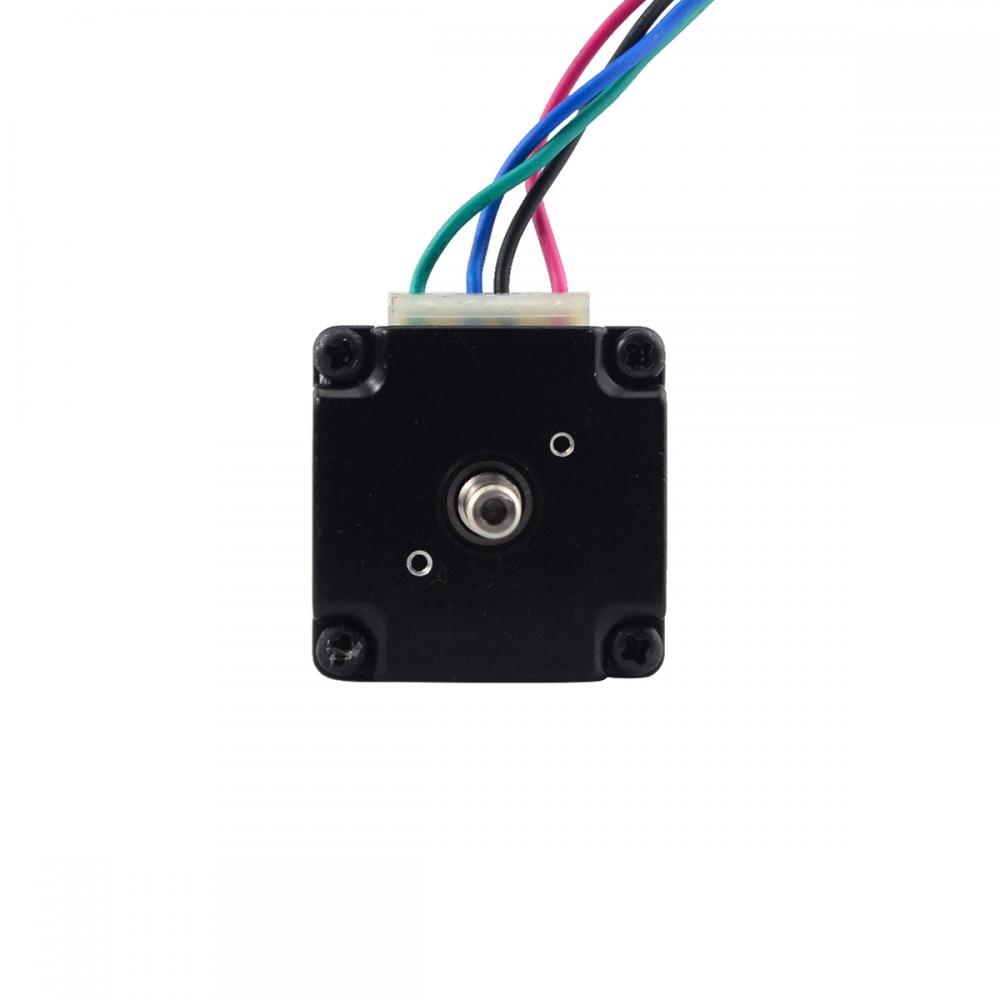

D-cut Shaft,Dual Shaft, Torque type planetary gearbox, Gear ratio 13.73, Efficiency 81%, Rated current 0.67A, 2 Phase Bipolar, Nema 11 size, length 51mm(Motor) + 35mm(Gearbox)
USD 46.55
Availability: 20
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Motor Specification
Inductance(mH) 6.5
Motor Nema Size Nema 11
Phase Resistance(ohm) 12
Rated Current(A) 0.67
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 14
Holding Torque w/o Gearbox(oz.in) 19.8
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 81%
Gear Ratio 13.73:1
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.92
Moment Permissible Torque(Ncm) 500
Moment Permissible Torque(oz.in) 708.2
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Physical Specification
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Gearbox Length(mm) 35
No. of Lead 4
Lead Length(mm) 500
Weight(g) 400
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
