CART 11LS18-07549-250N
11LS18-07549-250N
11LS18-07549-250N

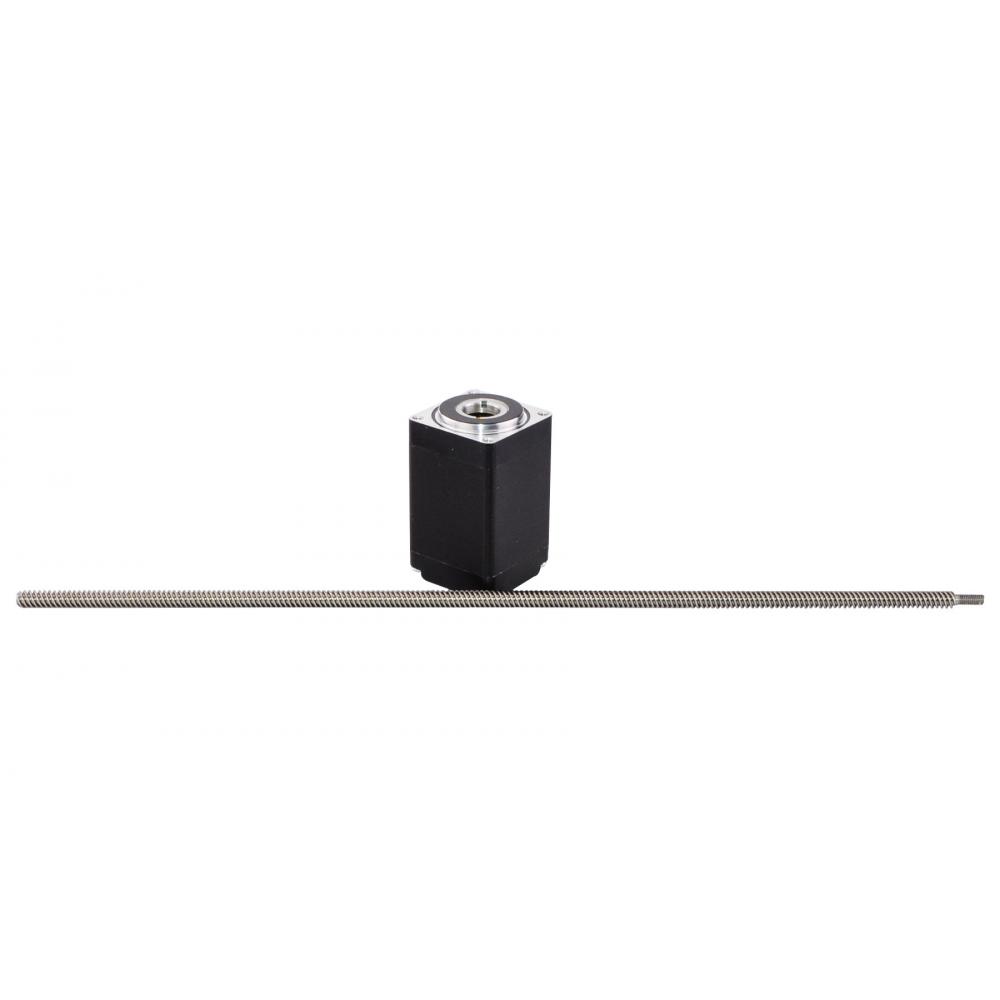

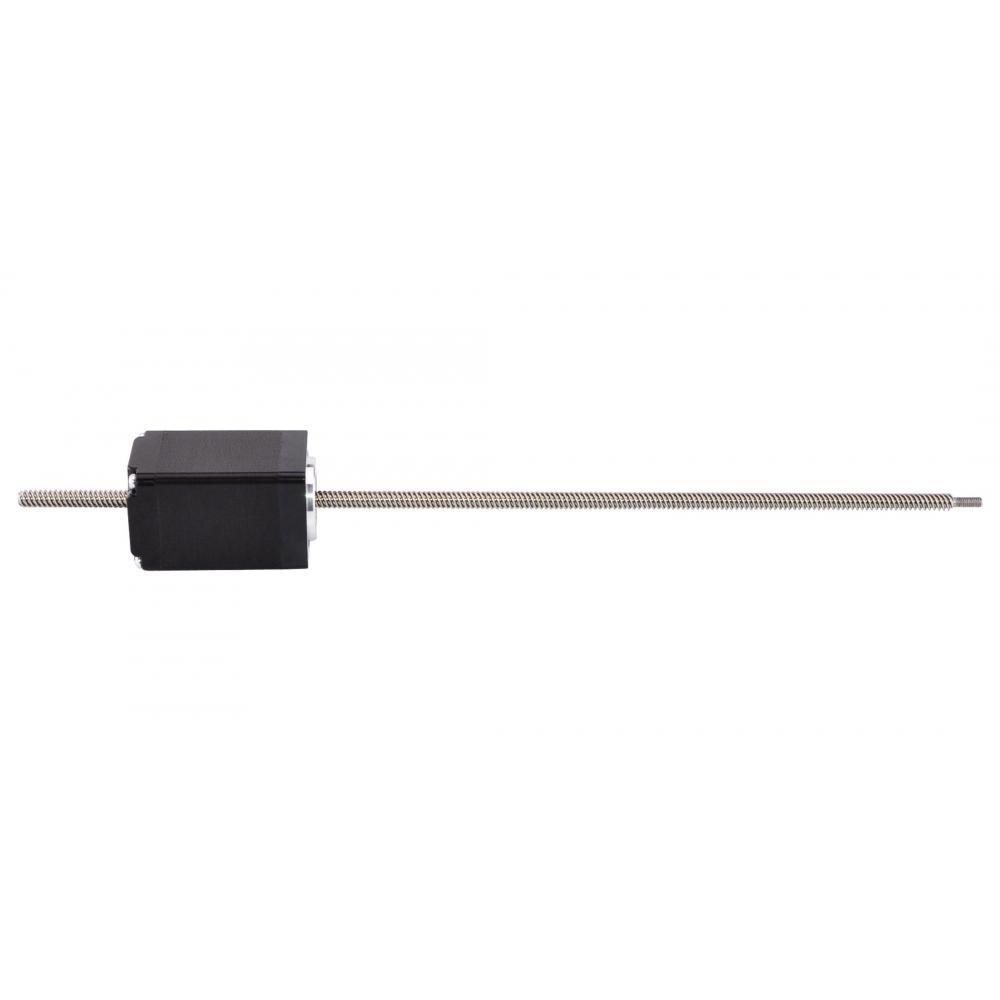

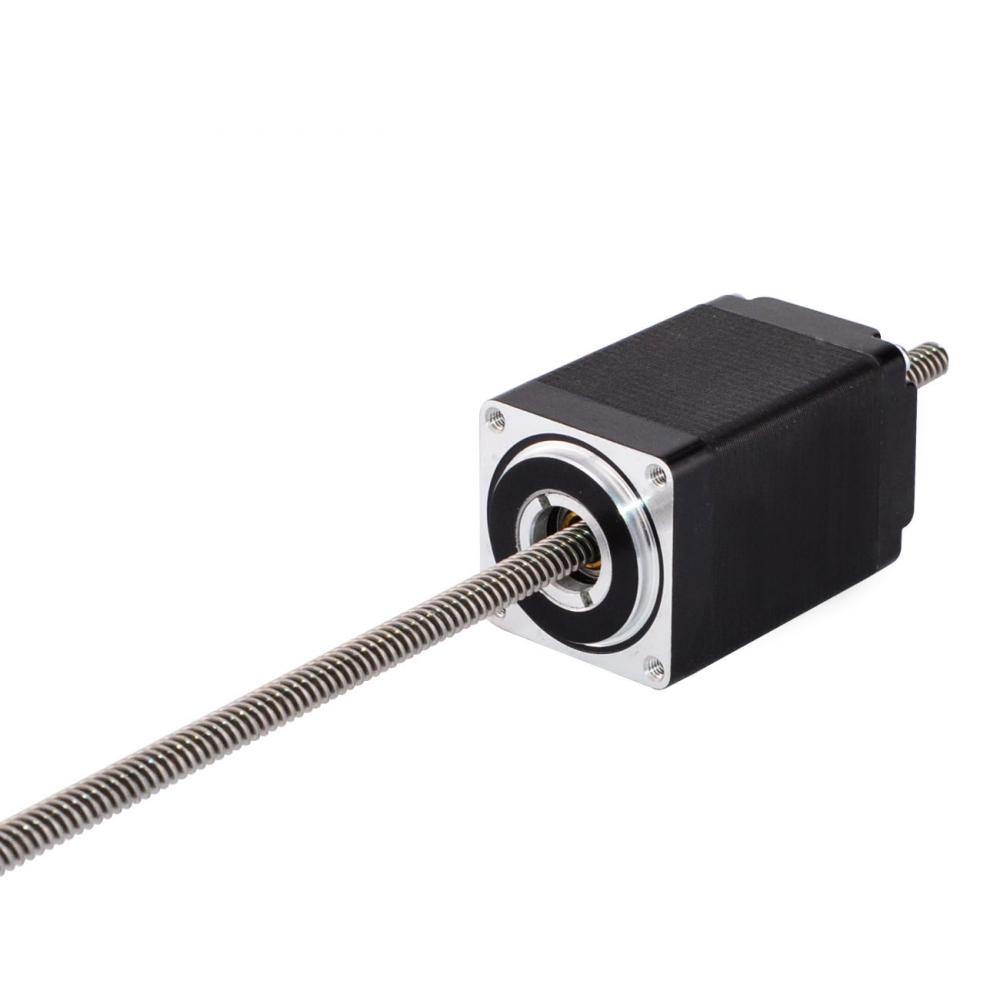

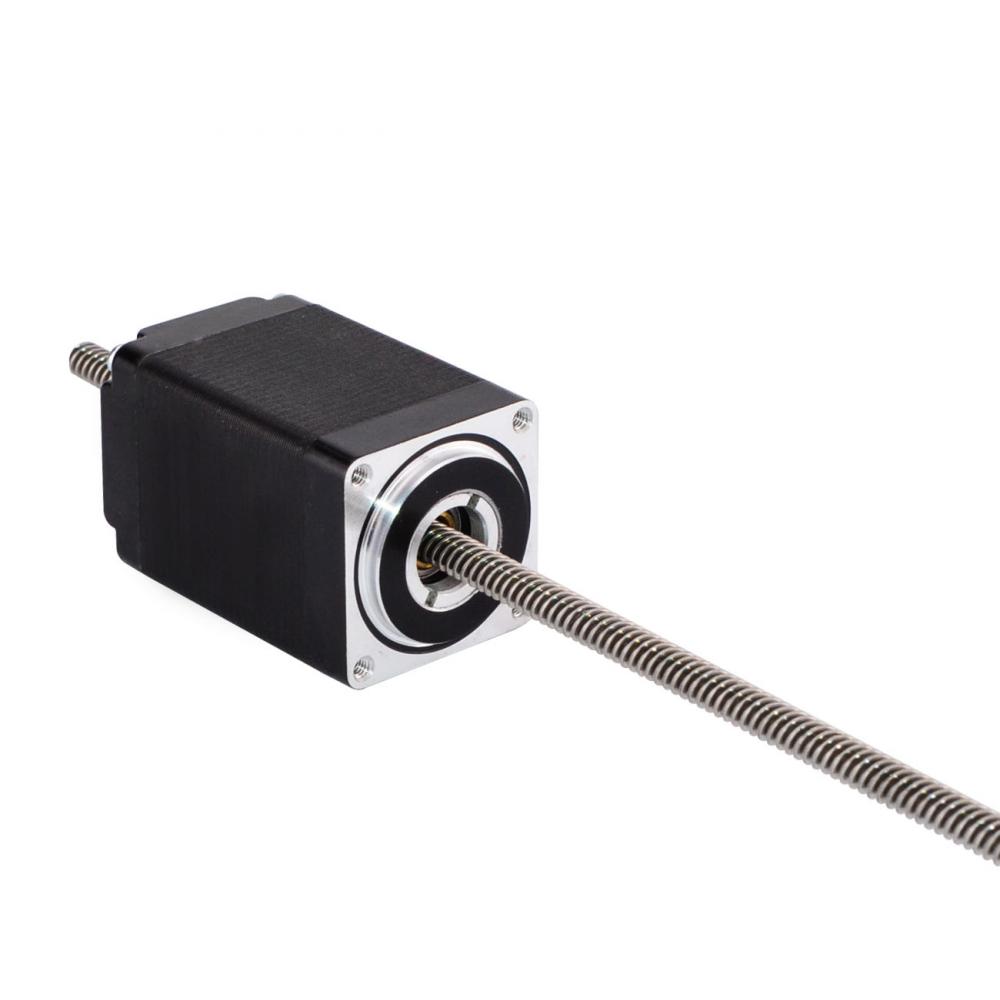

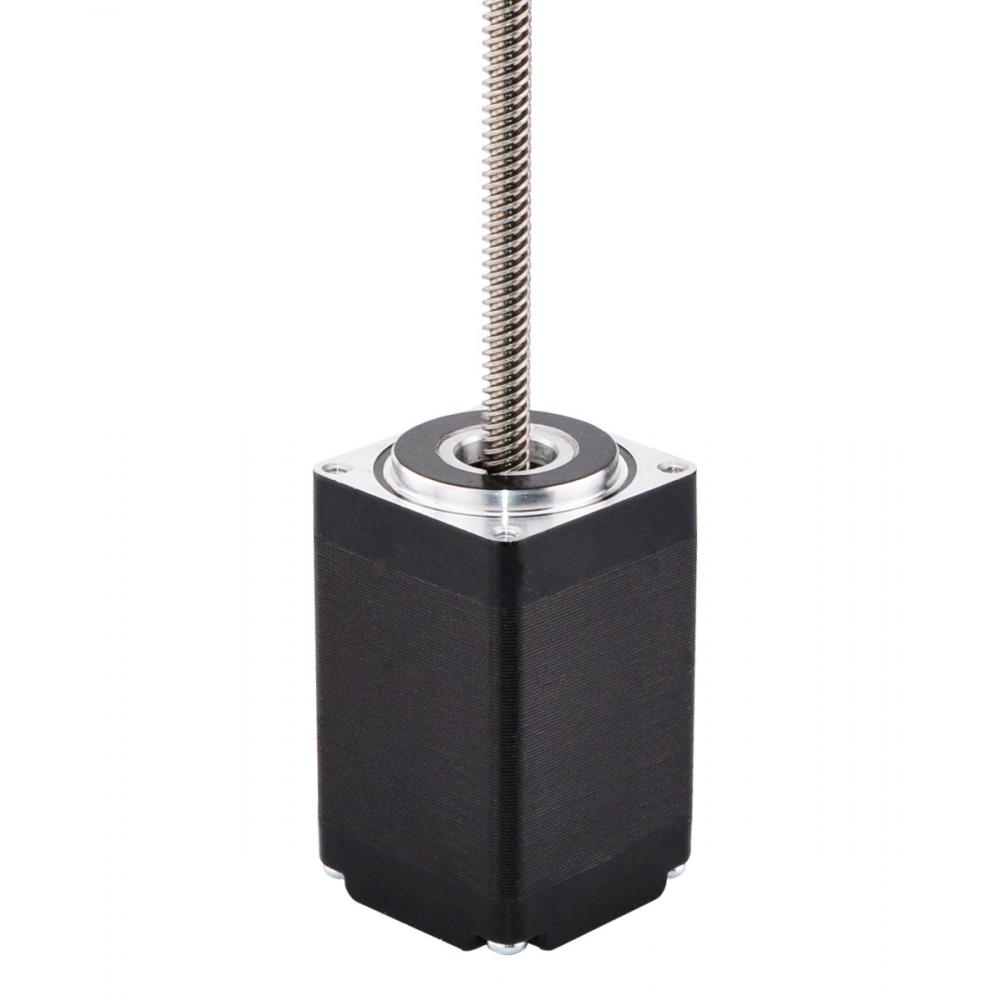

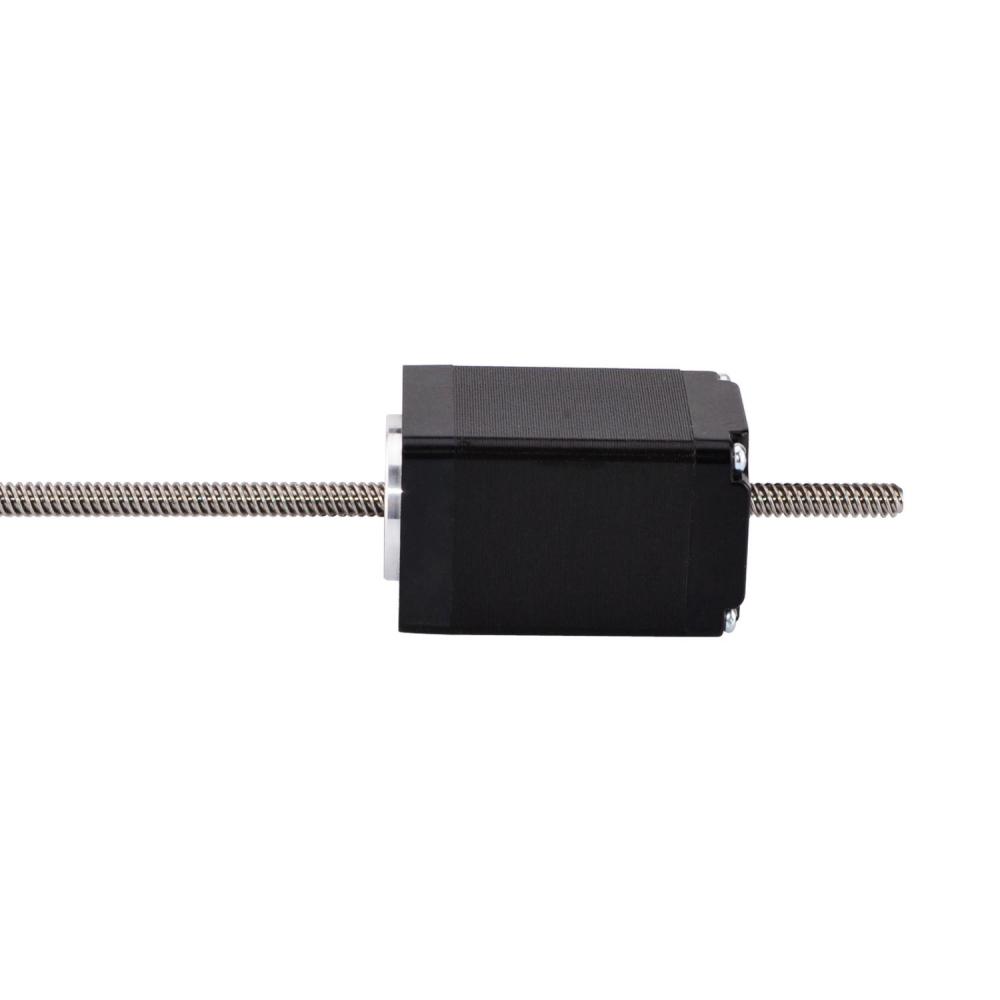

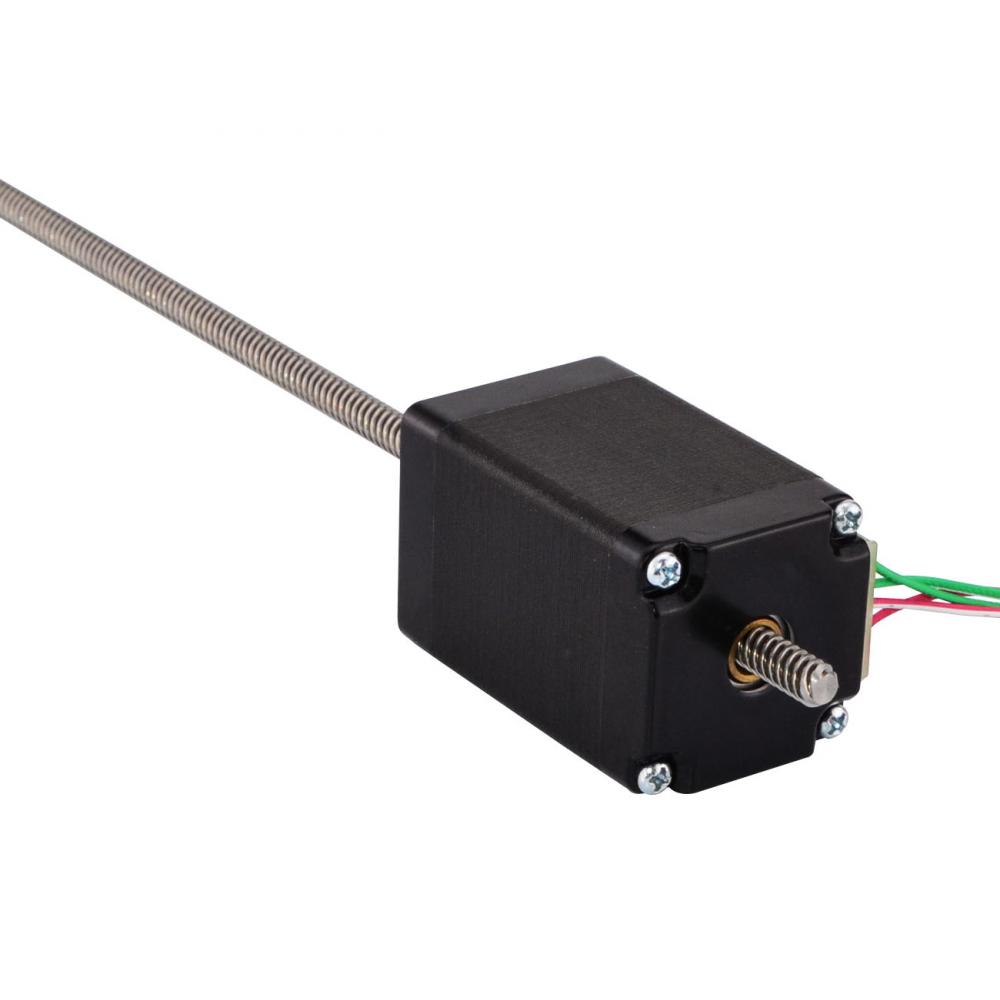

Low Losses,High Efficiency, Precision Non-captive type, Nema 11 - 28.2x28.2x46mm, Lead /Step 0.00635mm, Lead Screw Diameter Φ4.76mm, Lead Screw Length 250mm, Rated current 0.75A, 2 Phase Bipolar
USD 101.55
Availability: 20 Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Inductance(mH) | 5.8 |
| Phase Resistance(ohm) | 6.7 |
| Rated Current(A) | 0.75 |
| Minimal Thrust(N) | 59 |
| Physical Specification | |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 46 |
| Motor Type | Non-Captive |

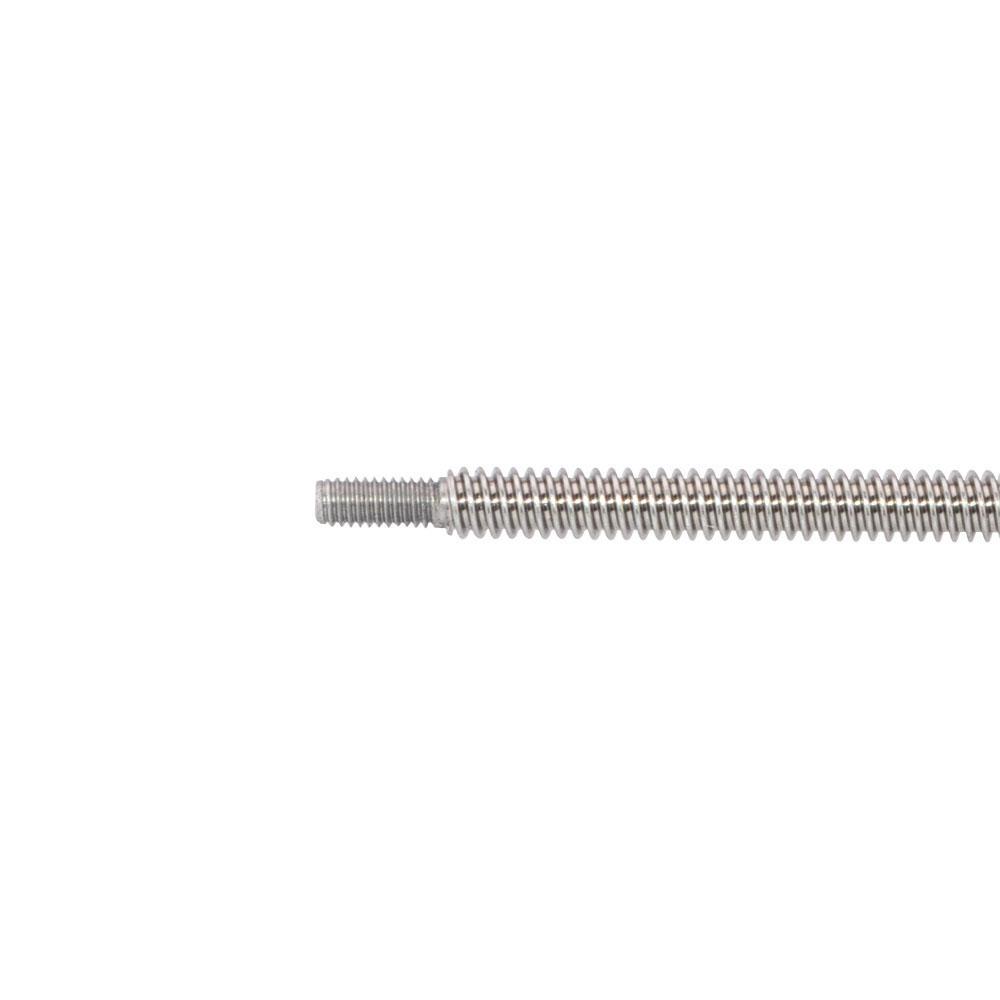

| Lead Screw Diameter(mm) | 4.76 |
| Lead Screw Length(mm) | 250 |
| Lead Travel/Revolution(mm) | 1.27 |
| Lead Travel/Step(mm) | 0.00635 |
