CART 34LS31-3124C-150E
34LS31-3124C-150E
34LS31-3124C-150E

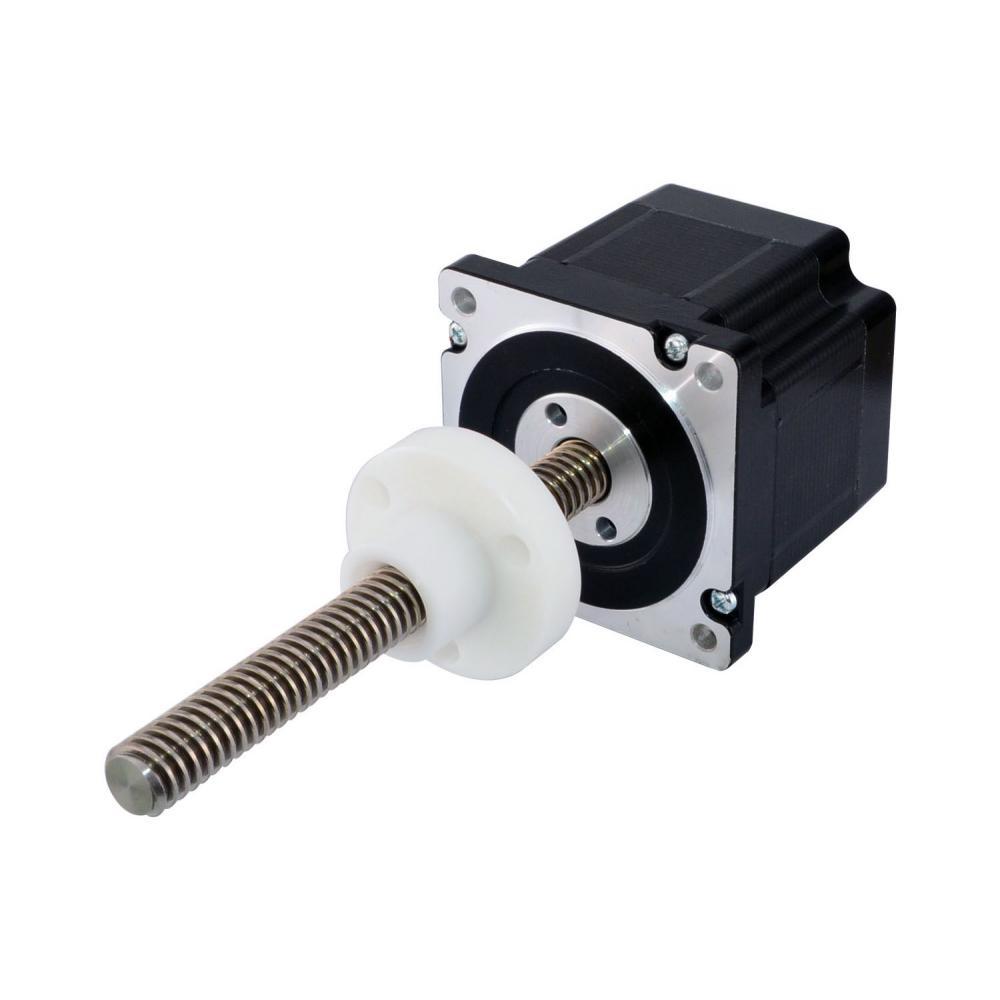

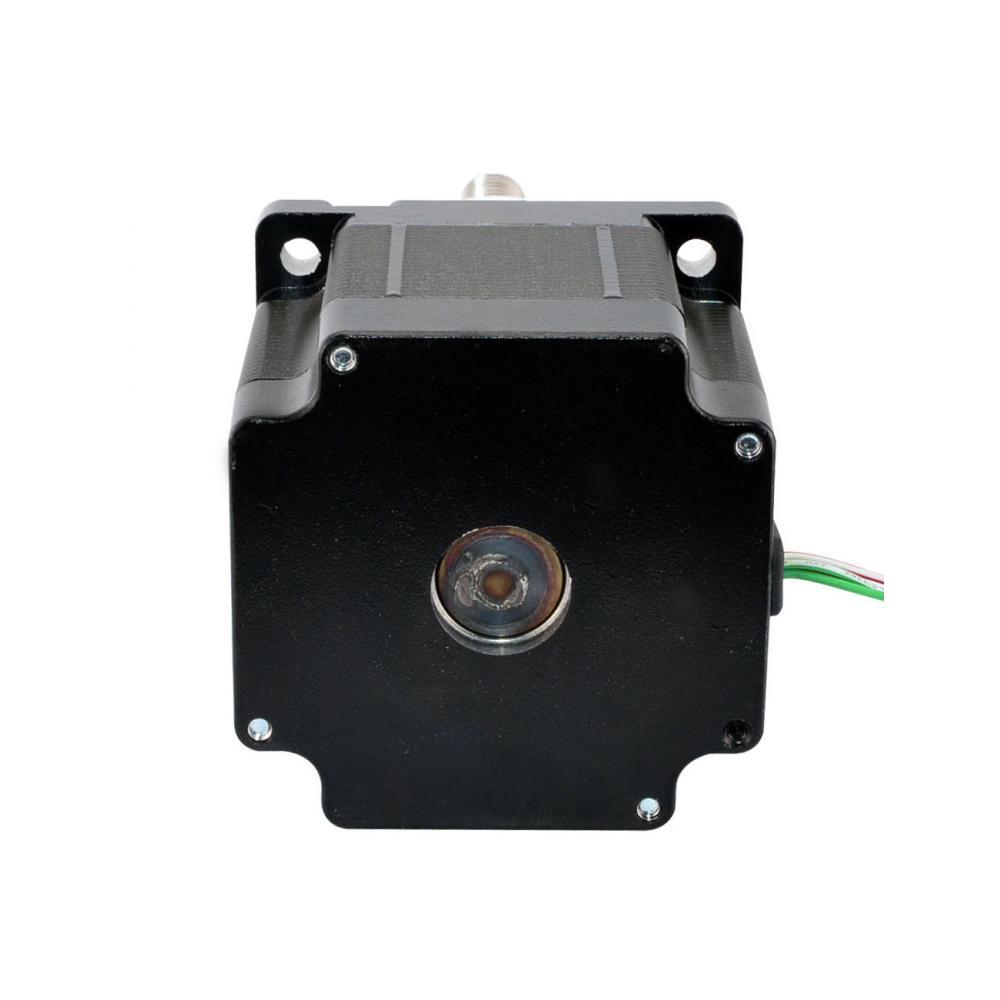

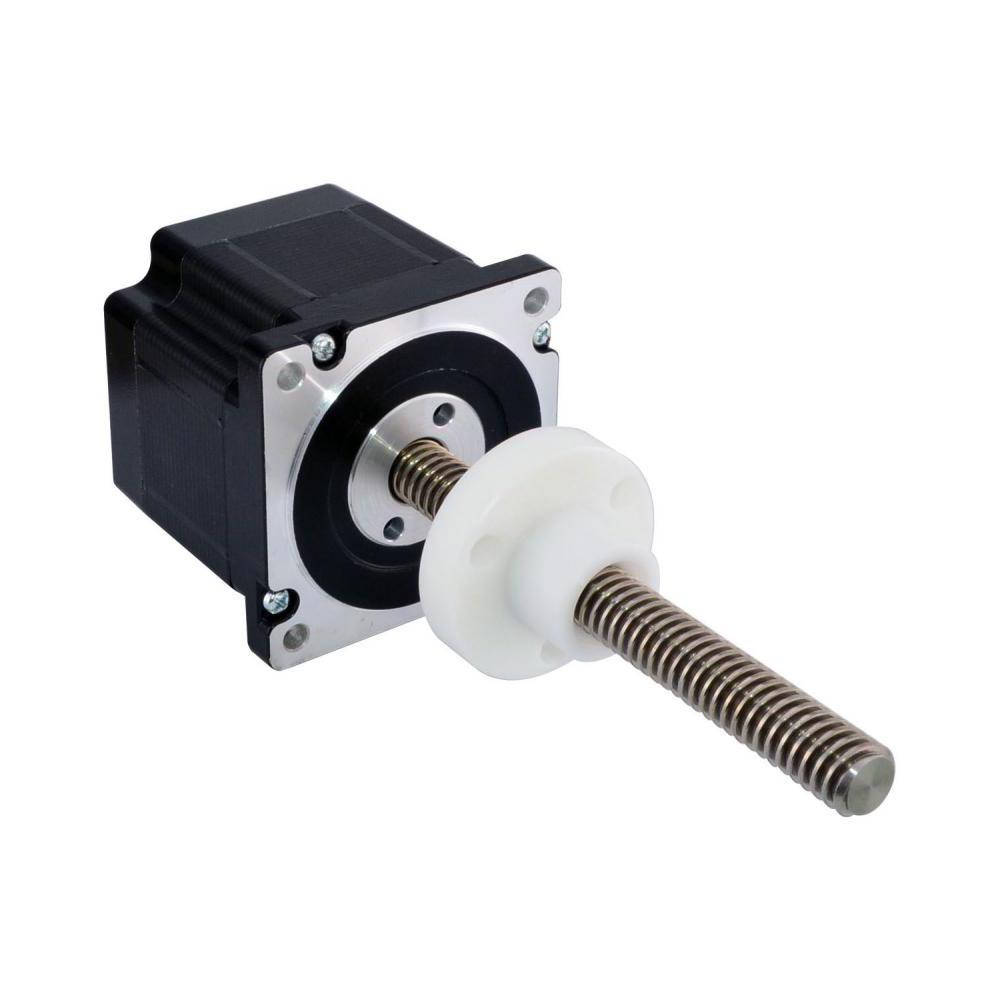

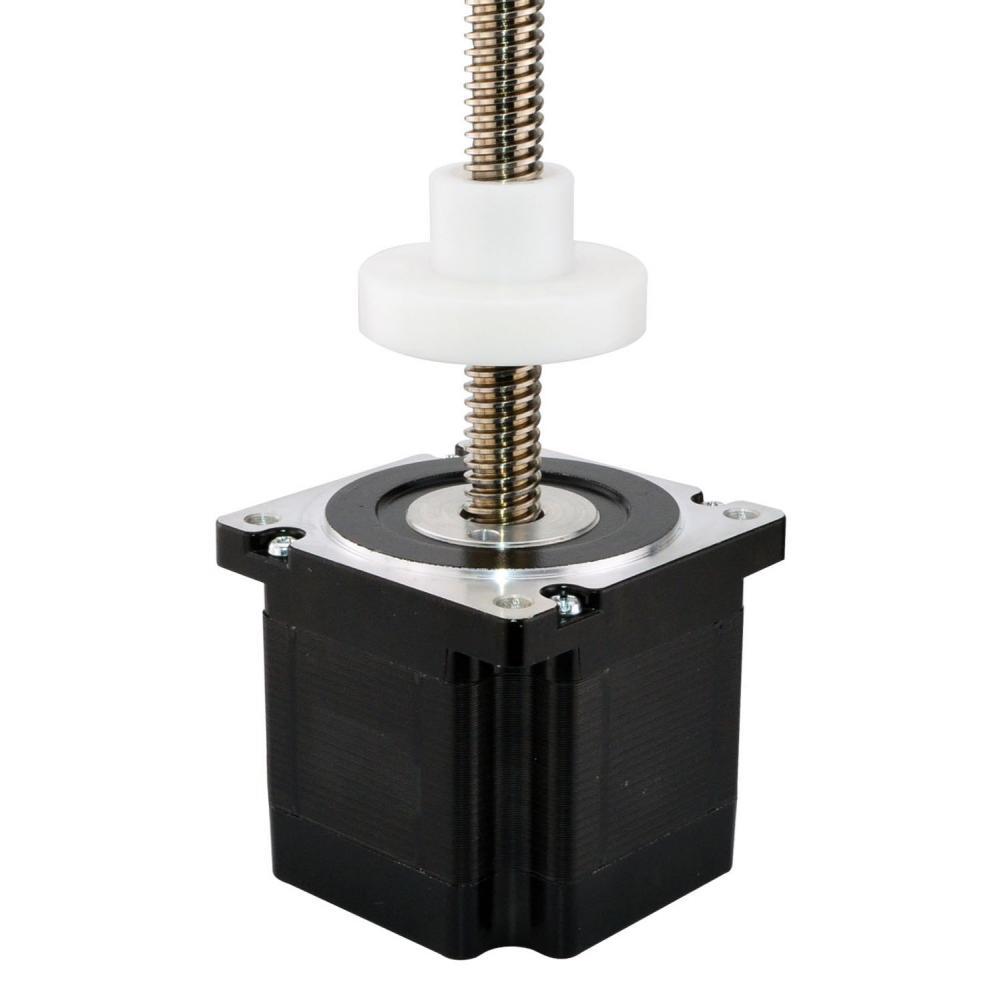

High Efficiency,Smooth movement, Precision External type, Nema 34 - 86x86x78.56mm, Lead /Step 0.03175mm, Lead Screw Diameter Φ15.88mm, Lead Screw Length 150mm, Rated current 3.12A, 2 Phase Bipolar
USD 200.63
Availability: 100 Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Inductance(mH) | 8.8 |
| Phase Resistance(ohm) | 1.6 |
| Rated Current(A) | 3.12 |
| Minimal Thrust(N) | 800 |
| Physical Specification | |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 78.56 |
| Motor Type | External |

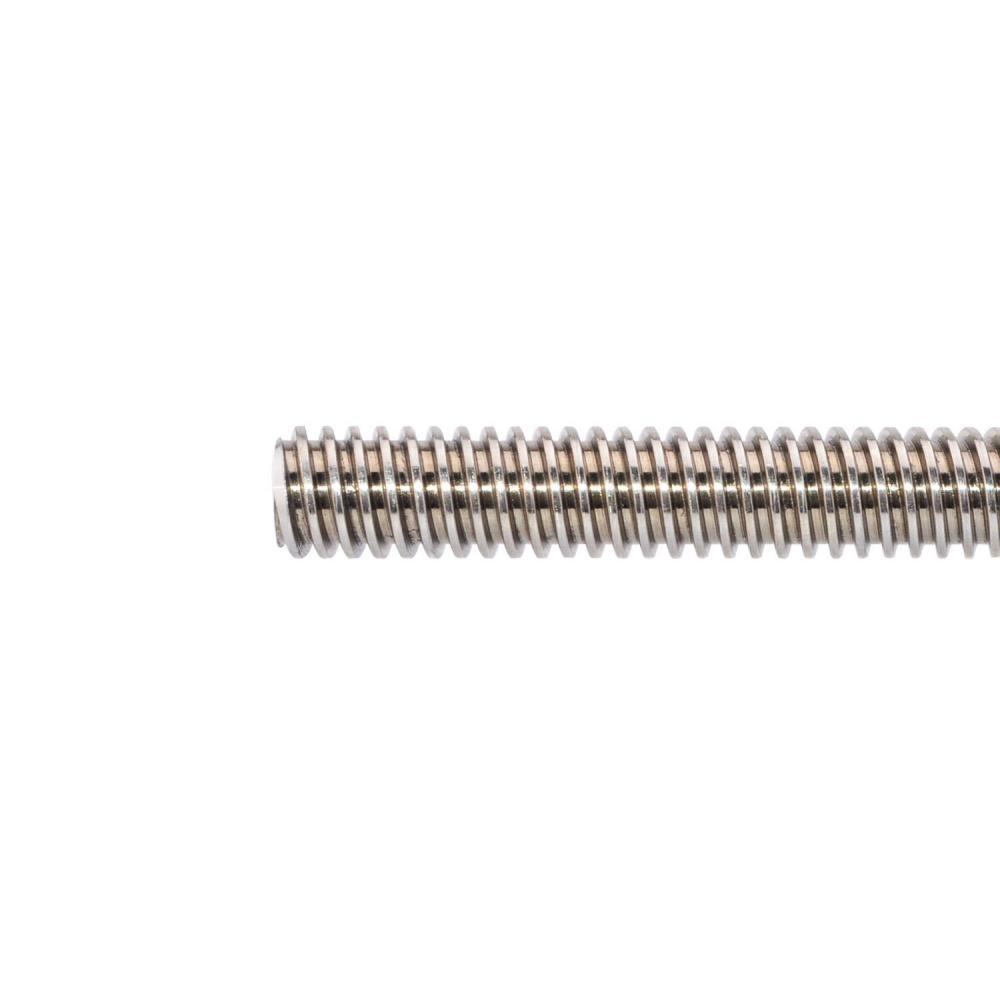

| Lead Screw Diameter(mm) | 15.88 |
| Lead Screw Length(mm) | 150 |
| Lead Travel/Revolution(mm) | 6.35 |
| Lead Travel/Step(mm) | 0.03175 |
