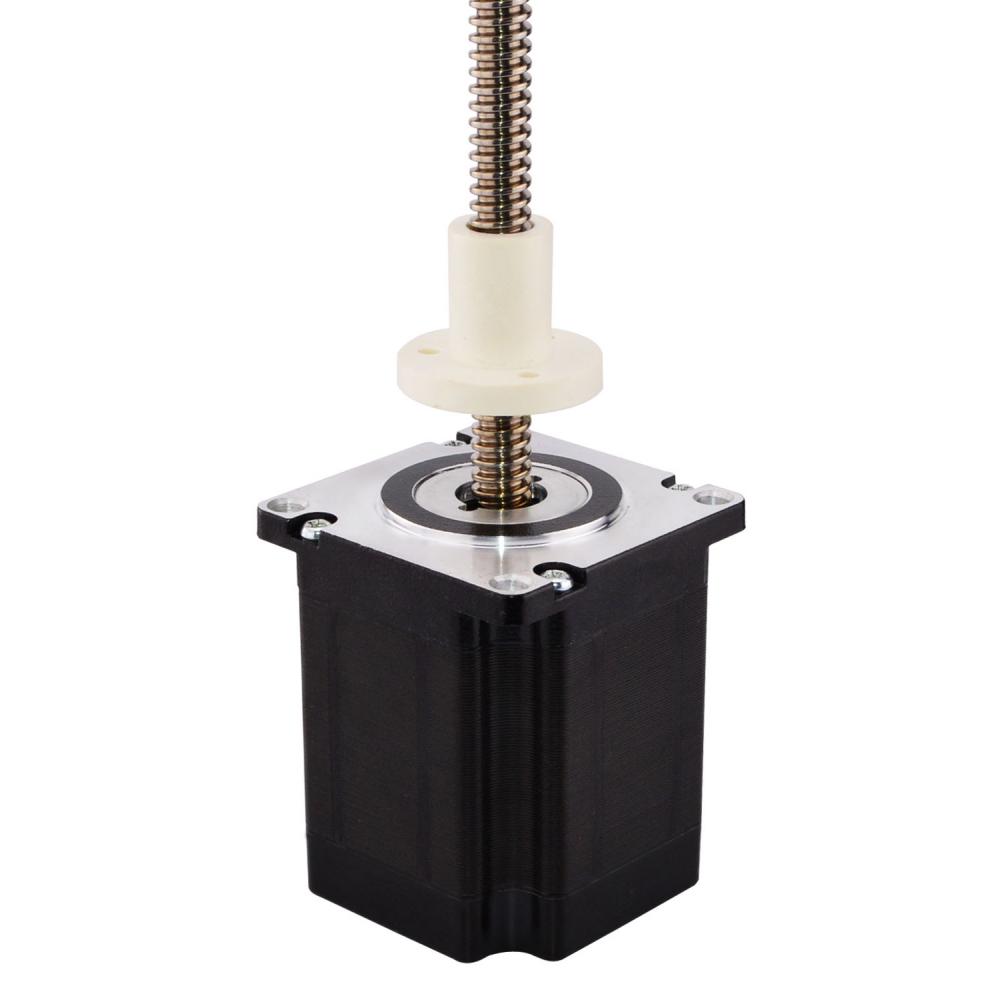

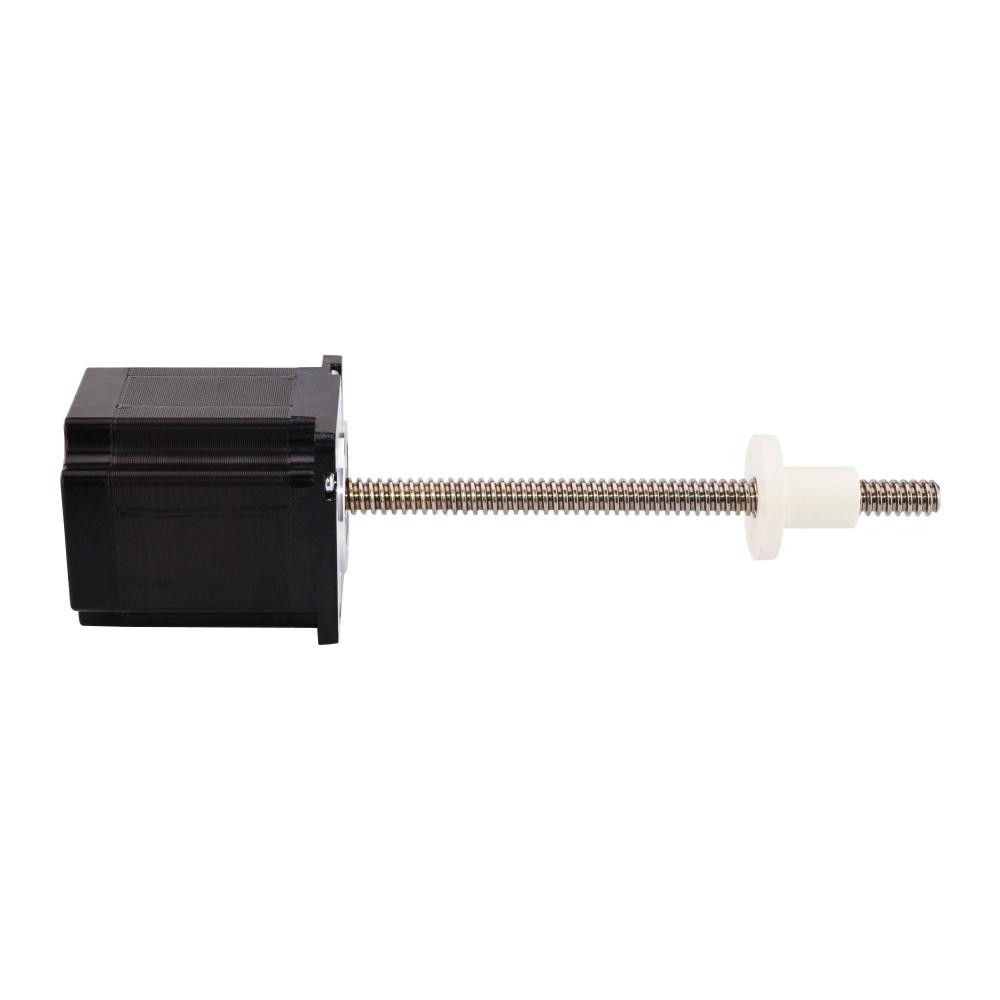

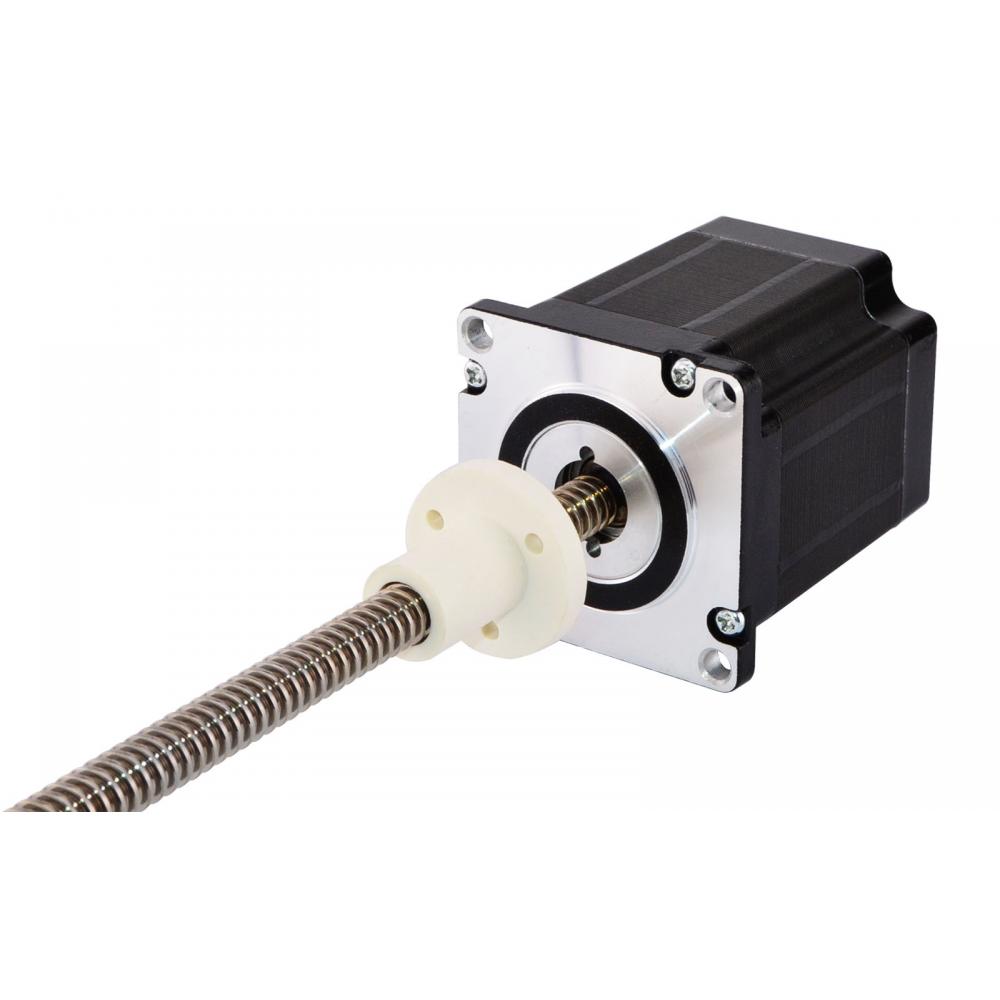

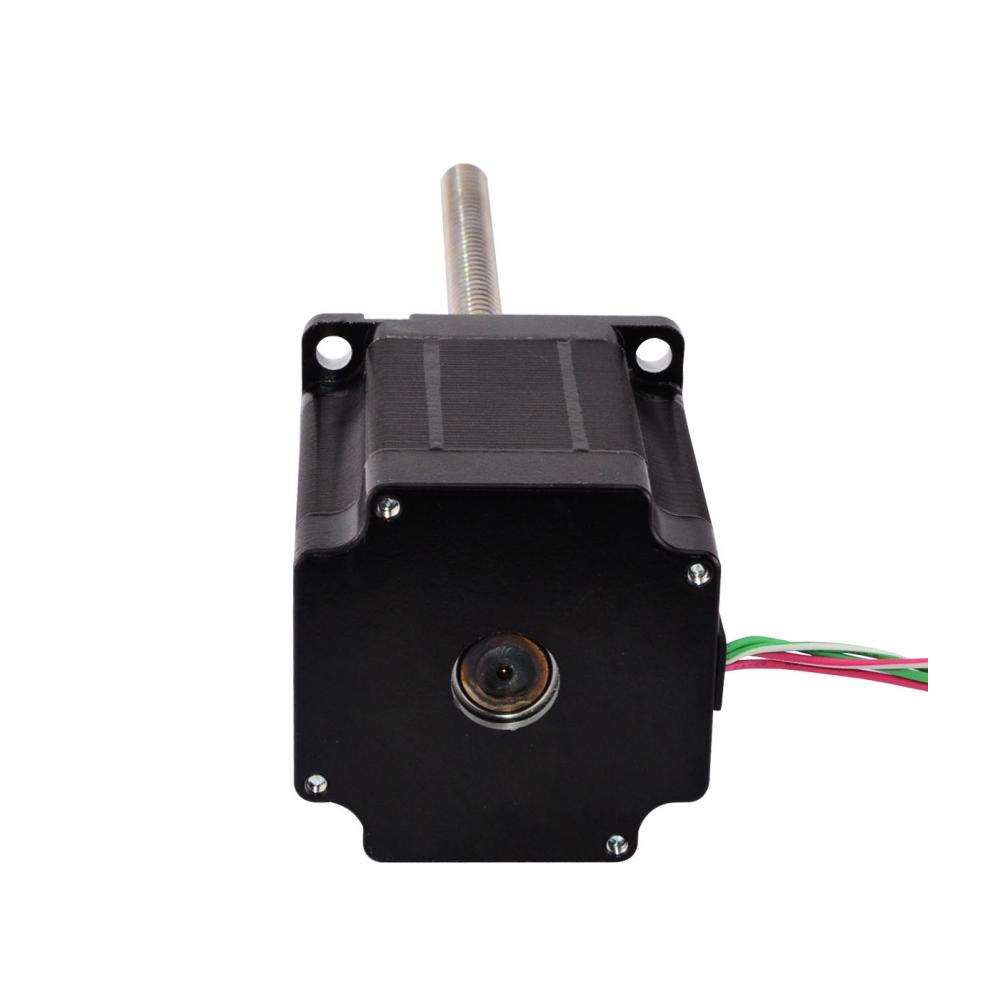

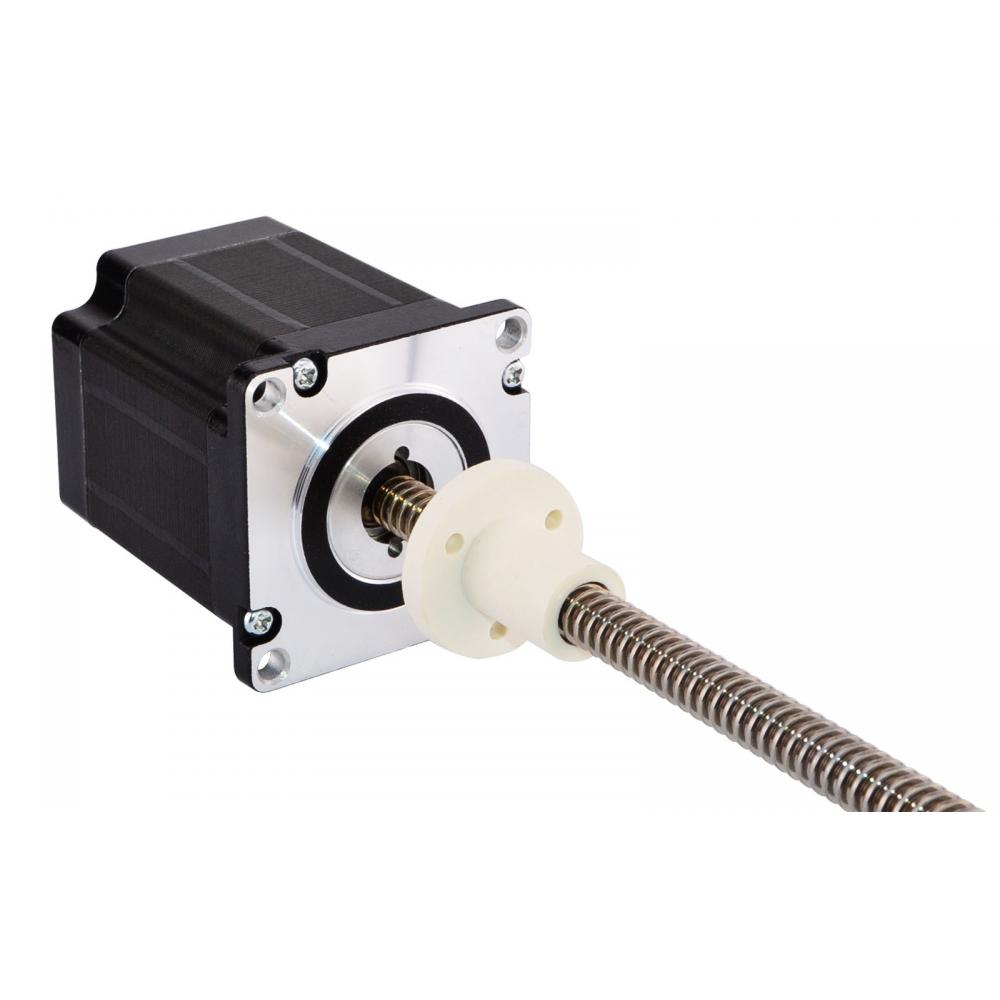

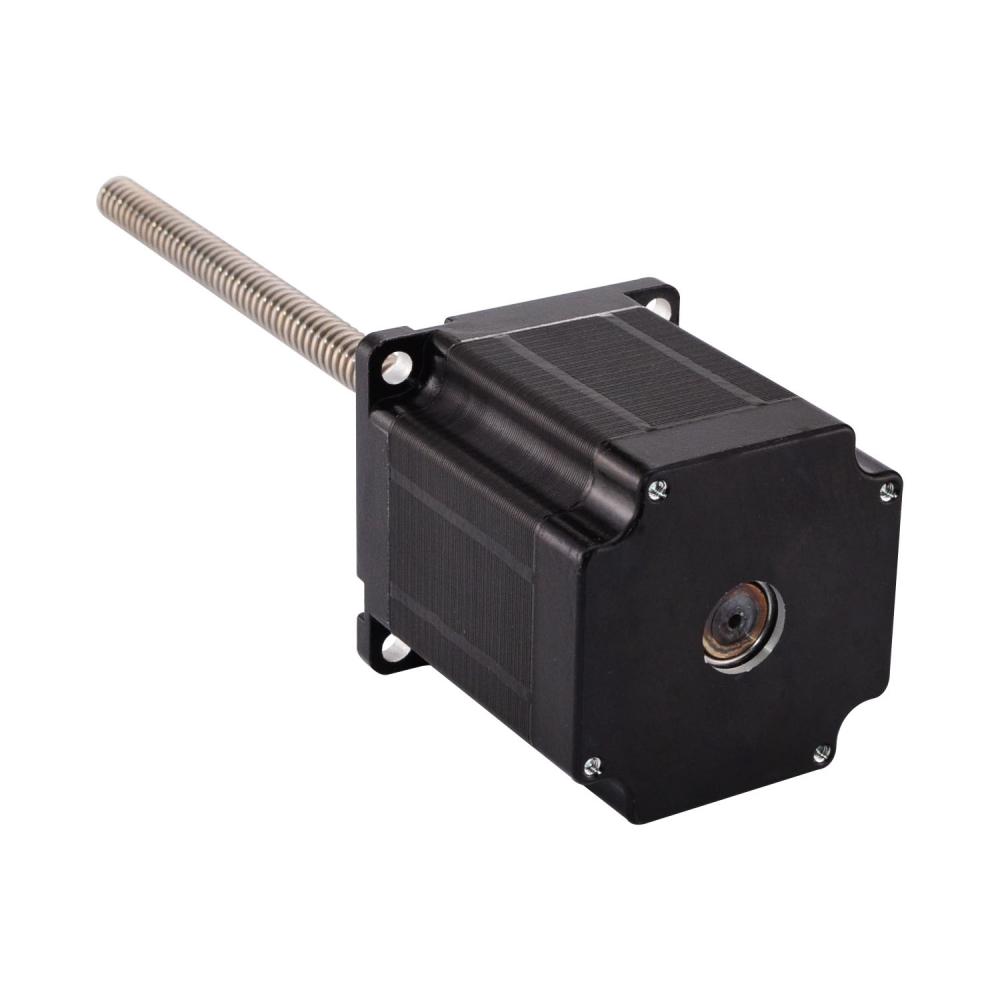

23LS26-2504A-150E

Low Losses,Long Life, Precision External type, Nema 23 - 56.4x56.4x66mm, Lead /Step 0.0079375mm, Lead Screw Diameter Φ9.53mm, Lead Screw Length 150mm, Rated current 2.50A, 2 Phase Bipolar

USD 115.36
Availability: 60
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Inductance(mH) 8.2
Phase Resistance(ohm) 2.1
Rated Current(A) 2.5
Minimal Thrust(N) 750
Physical Specification
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) 57x57
Body Length(mm) 66
Motor Type External

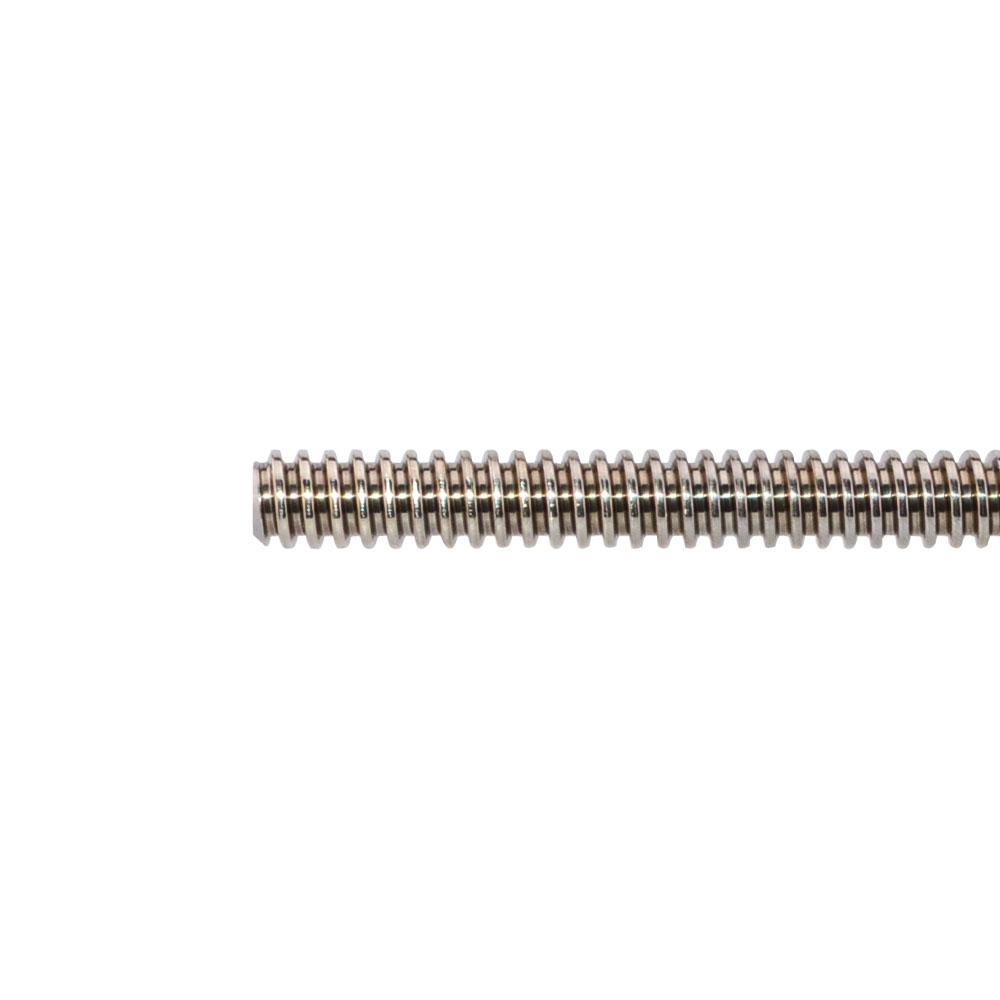

Lead Screw Diameter(mm) 9.53
Lead Screw Length(mm) 150
Lead Travel/Revolution(mm) 1.5875
Lead Travel/Step(mm) 0.0079375
