CART 23LS26-25042-150E
23LS26-25042-150E
23LS26-25042-150E

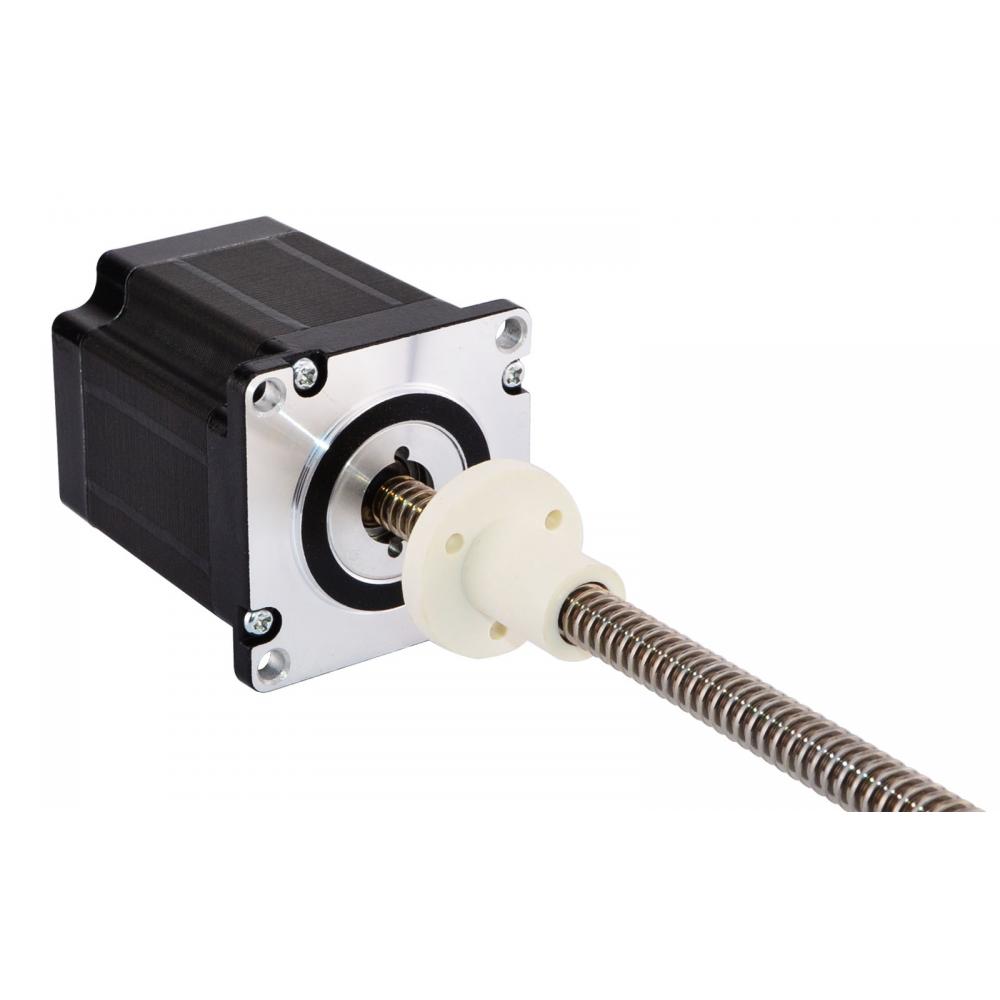

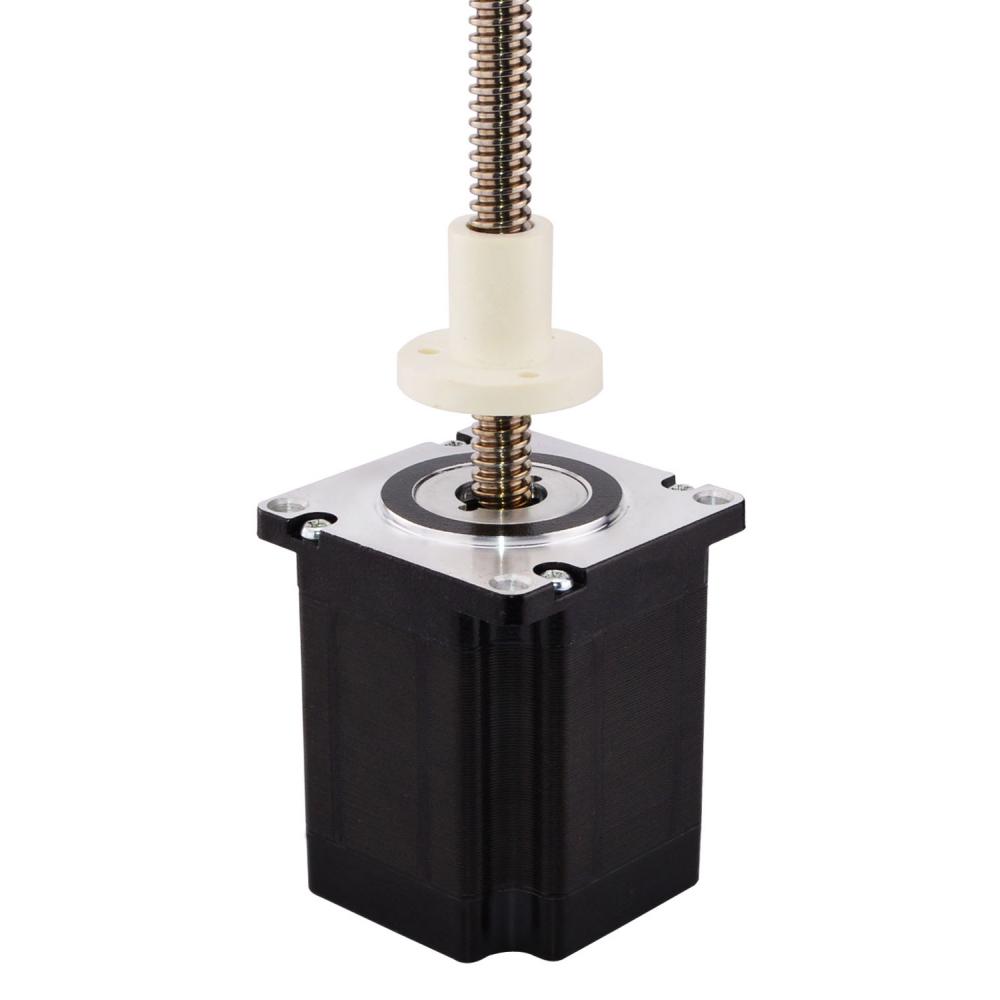

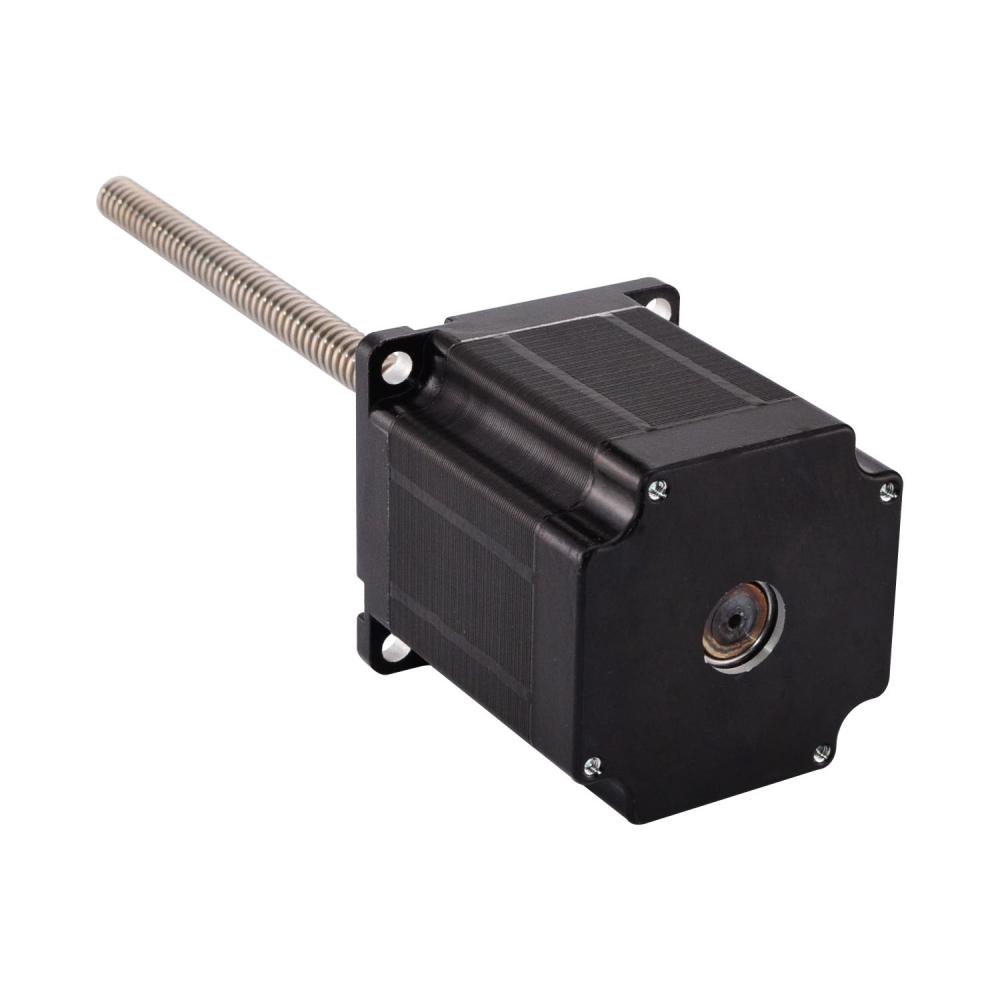

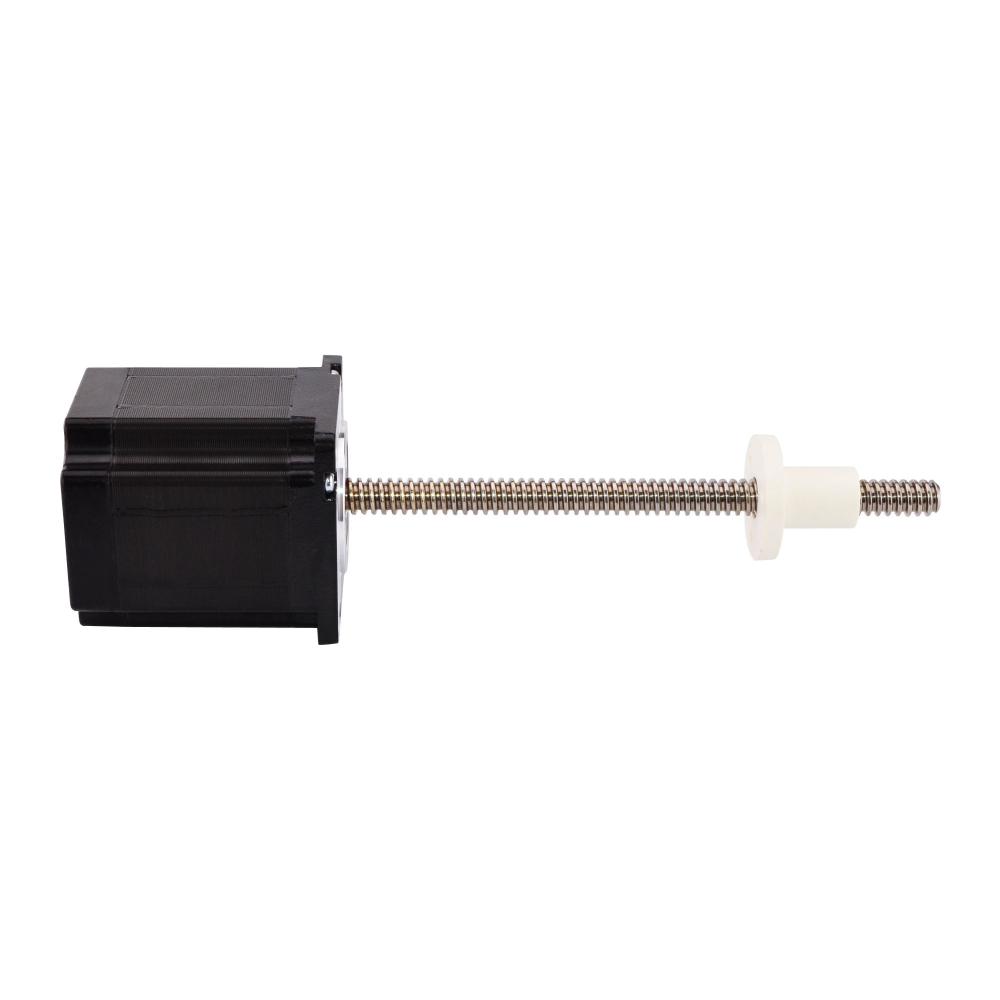

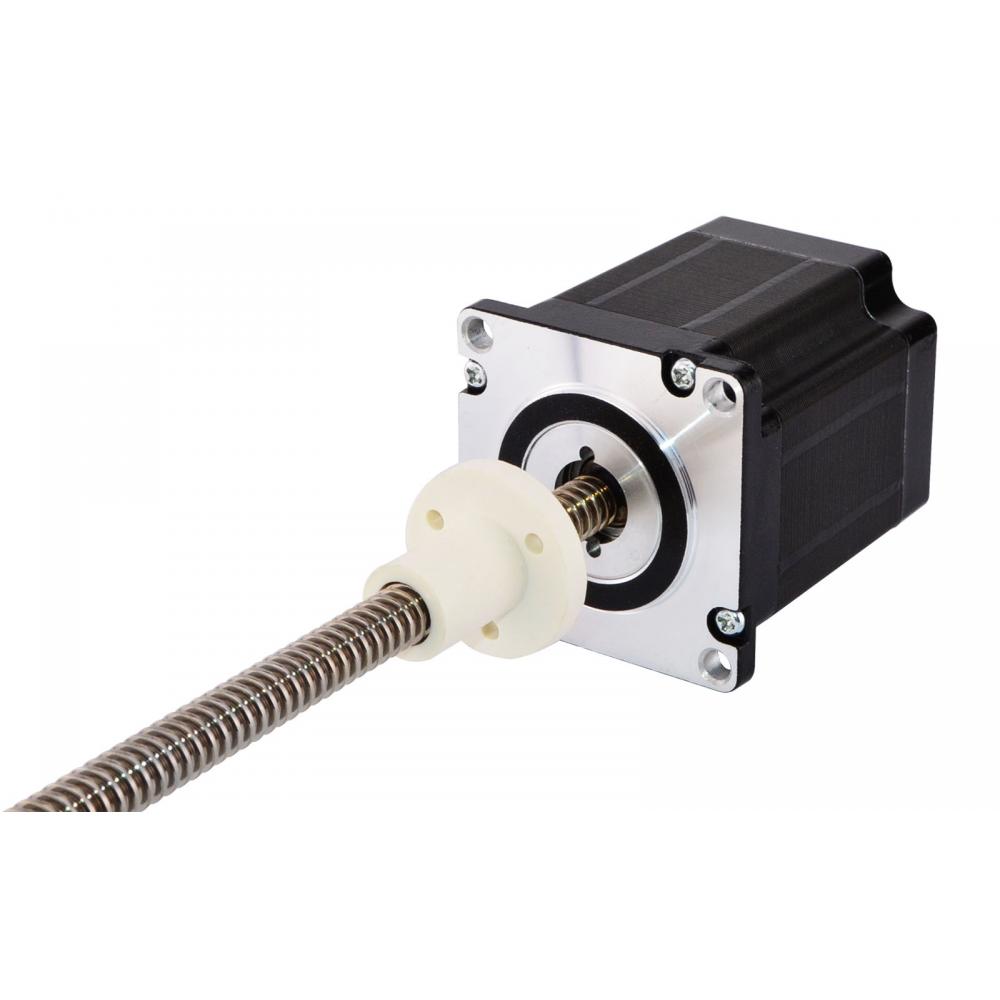

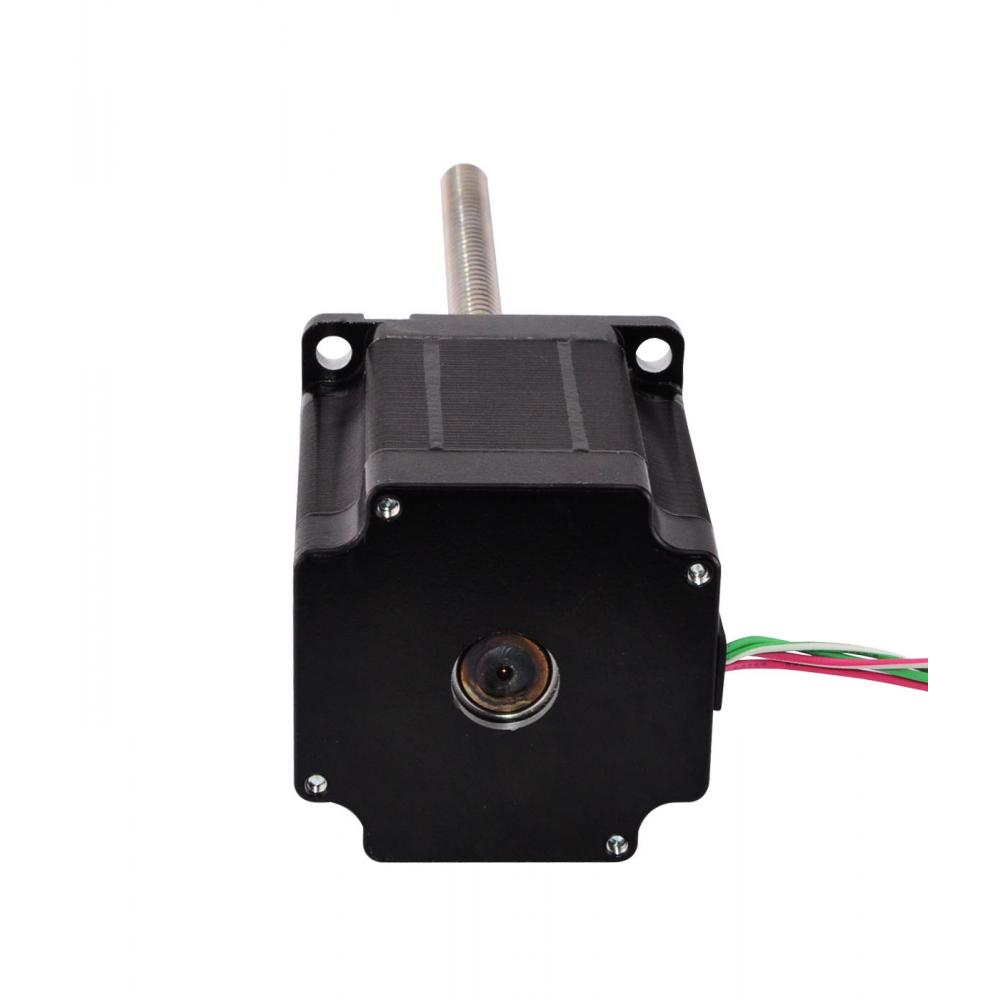

Smooth movement,Low Losses, Precision External type, Nema 23 - 56.4x56.4x66mm, Lead /Step 0.0508mm, Lead Screw Diameter Φ9.53mm, Lead Screw Length 150mm, Rated current 2.50A, 2 Phase Bipolar
USD 115.36
Availability: 15 Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Inductance(mH) | 8.2 |
| Phase Resistance(ohm) | 2.1 |
| Rated Current(A) | 2.5 |
| Minimal Thrust(N) | 220 |
| Physical Specification | |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 66 |
| Motor Type | External |
| Lead Screw Diameter(mm) | 9.53 |
| Lead Screw Length(mm) | 150 |
| Lead Travel/Revolution(mm) | 10.16 |
| Lead Travel/Step(mm) | 0.0508 |
