CART 17LS13-0704P-150E
17LS13-0704P-150E
17LS13-0704P-150E

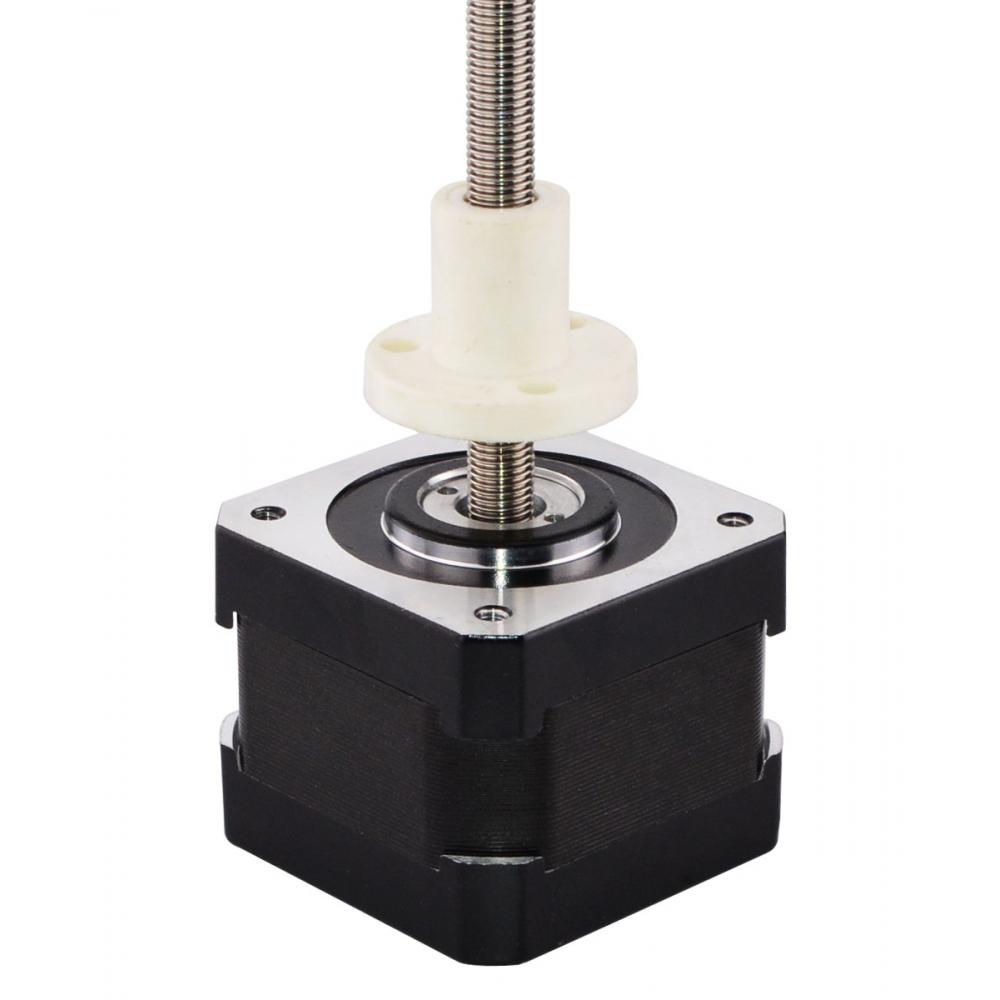

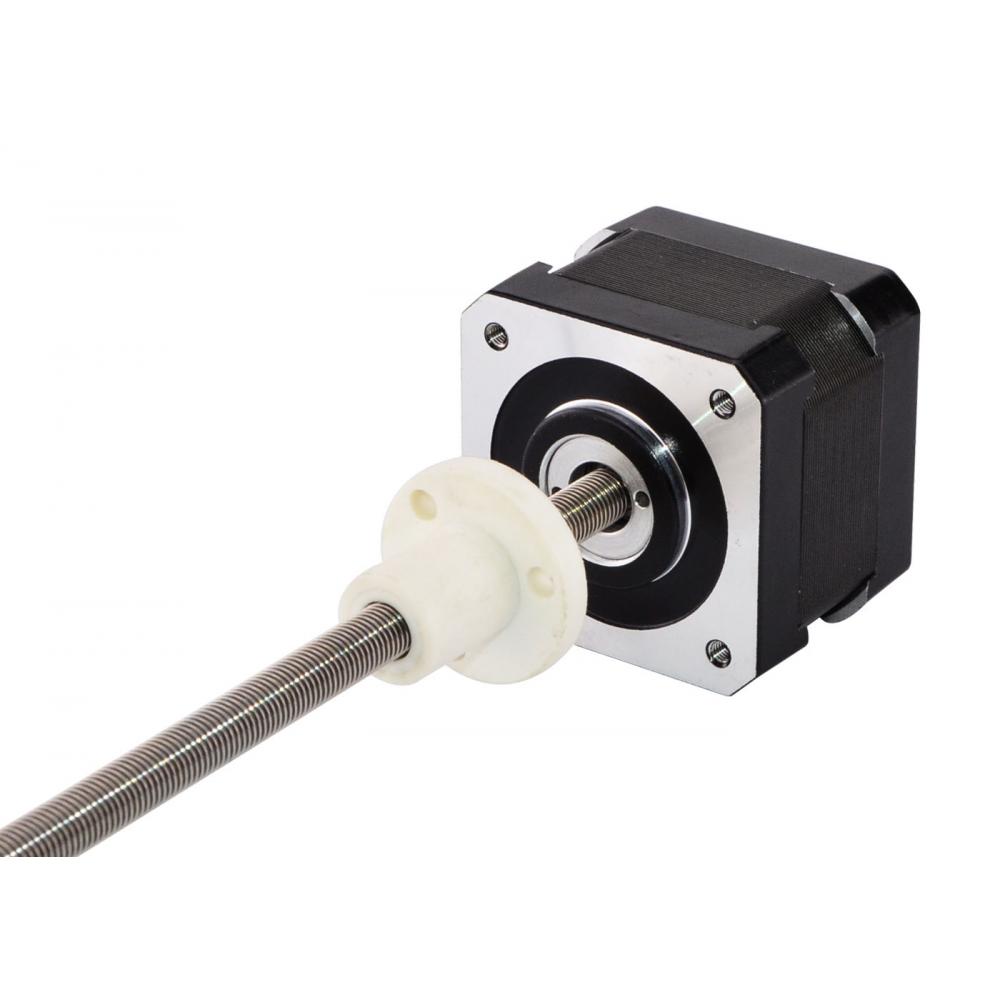

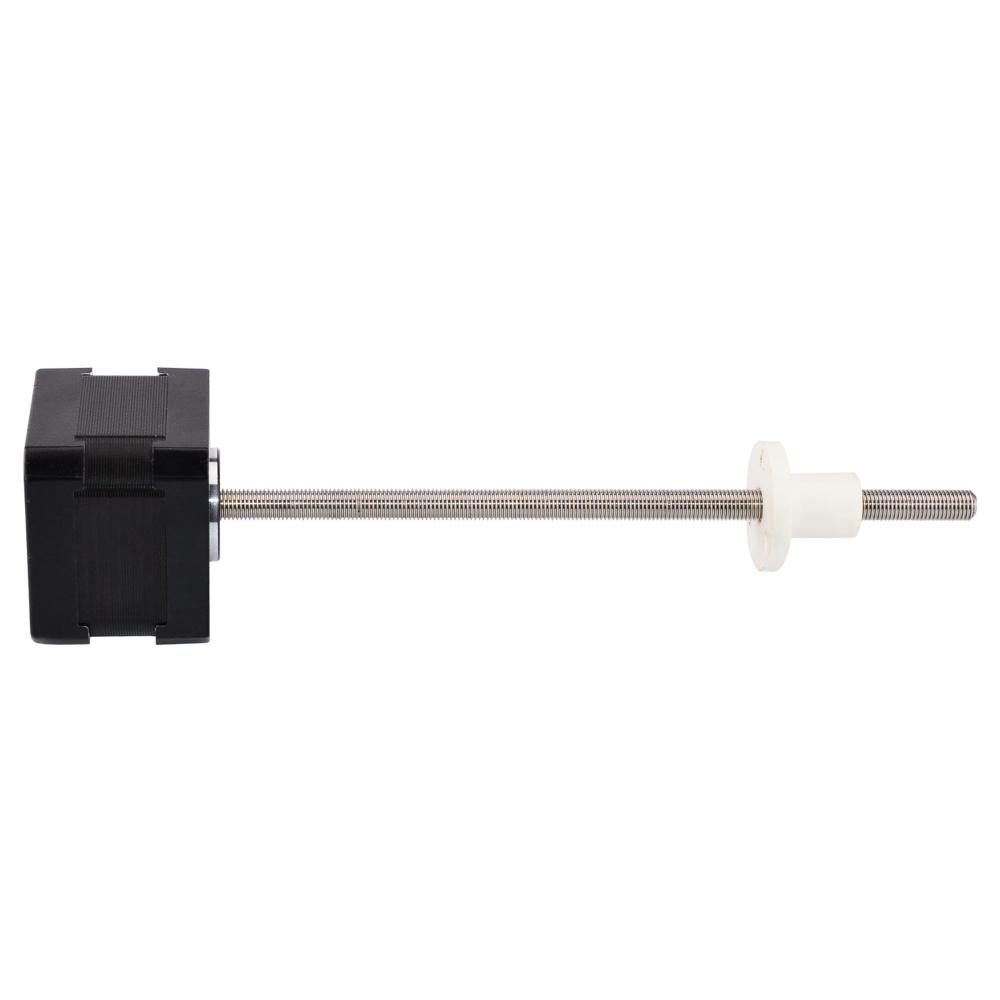

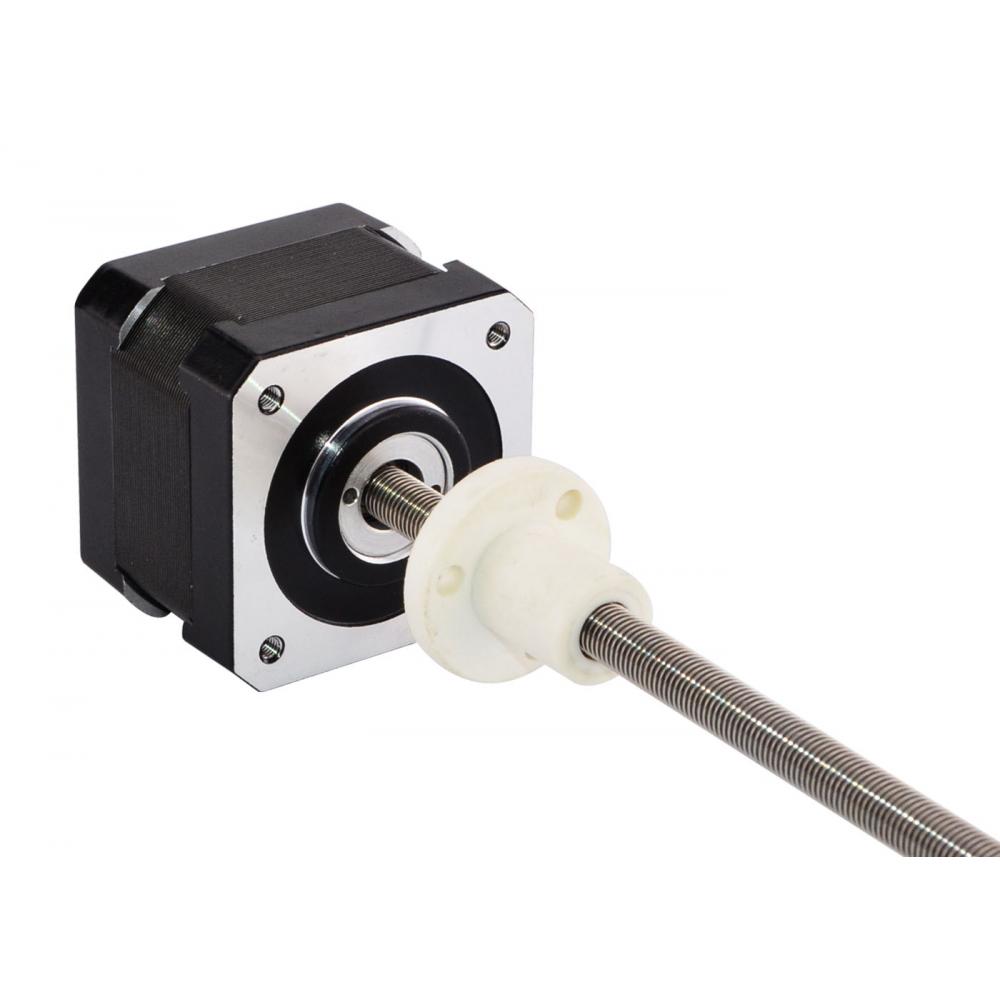

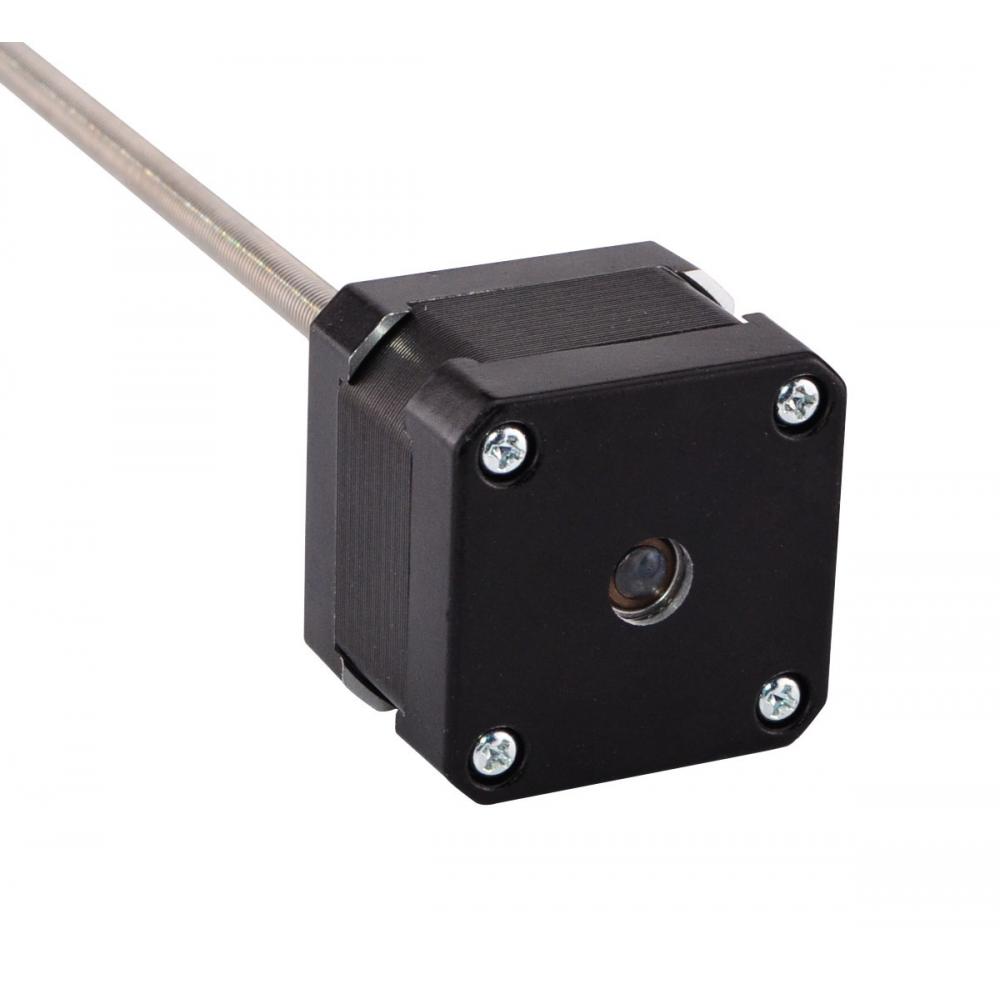

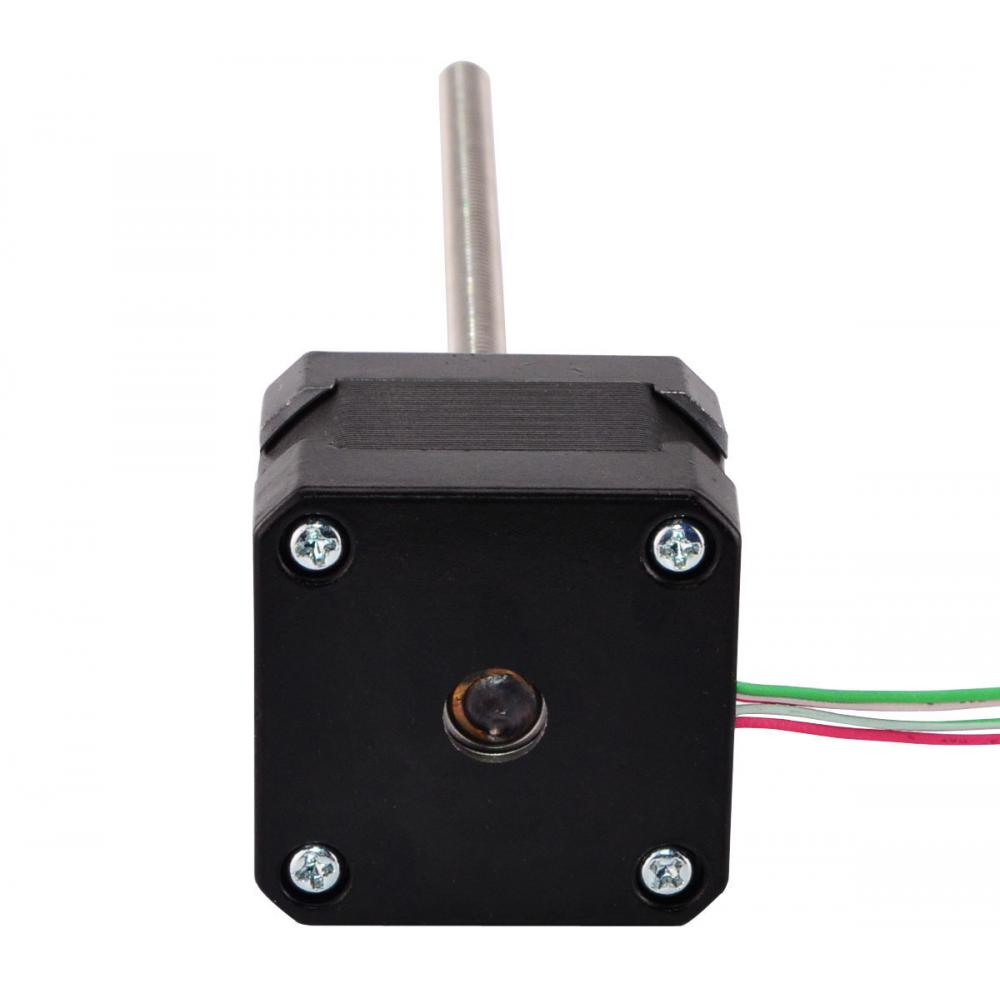

High Efficiency,Low Losses, Precision External type, Nema 17 - 42.2x42.2x33.8mm, Lead /Step 0.003966875mm, Lead Screw Diameter Φ6.35mm, Lead Screw Length 150mm, Rated current 0.70A, 2 Phase Bipolar
USD 63.95
Availability: 22 Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Inductance(mH) | 10.6 |
| Phase Resistance(ohm) | 7.2 |
| Rated Current(A) | 0.7 |
| Minimal Thrust(N) | 434 |
| Physical Specification | |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 33.8 |
| Motor Type | External |

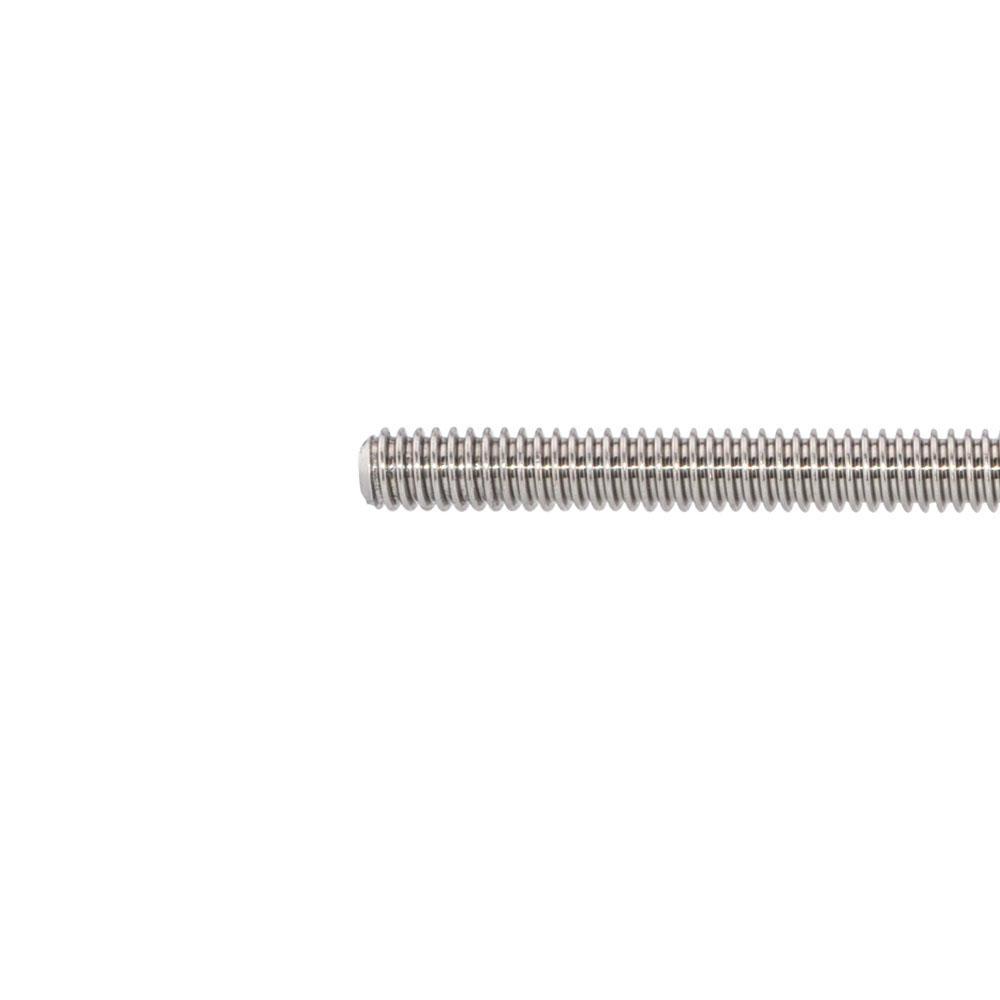

| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 150 |
| Lead Travel/Revolution(mm) | 0.79375 |
| Lead Travel/Step(mm) | 0.00396875 |
