CART 17LS19-1304Q-250N
17LS19-1304Q-250N
17LS19-1304Q-250N

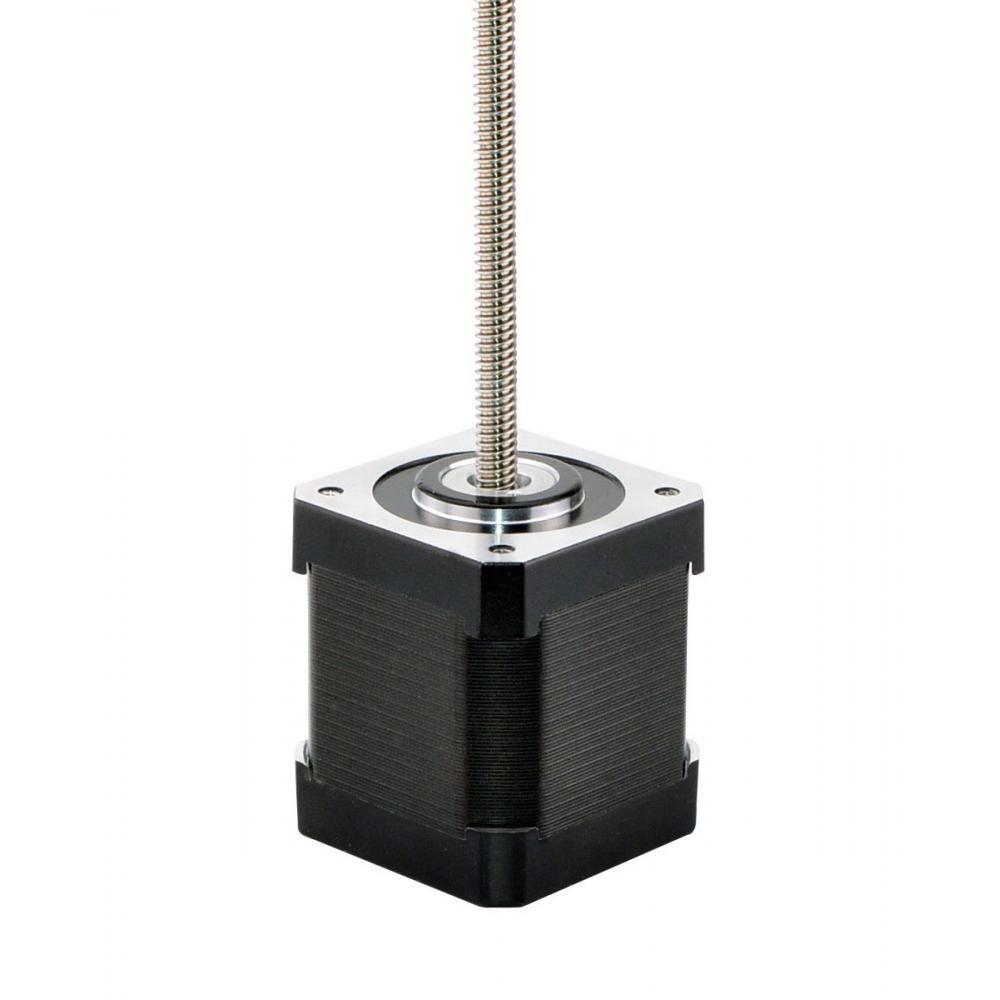

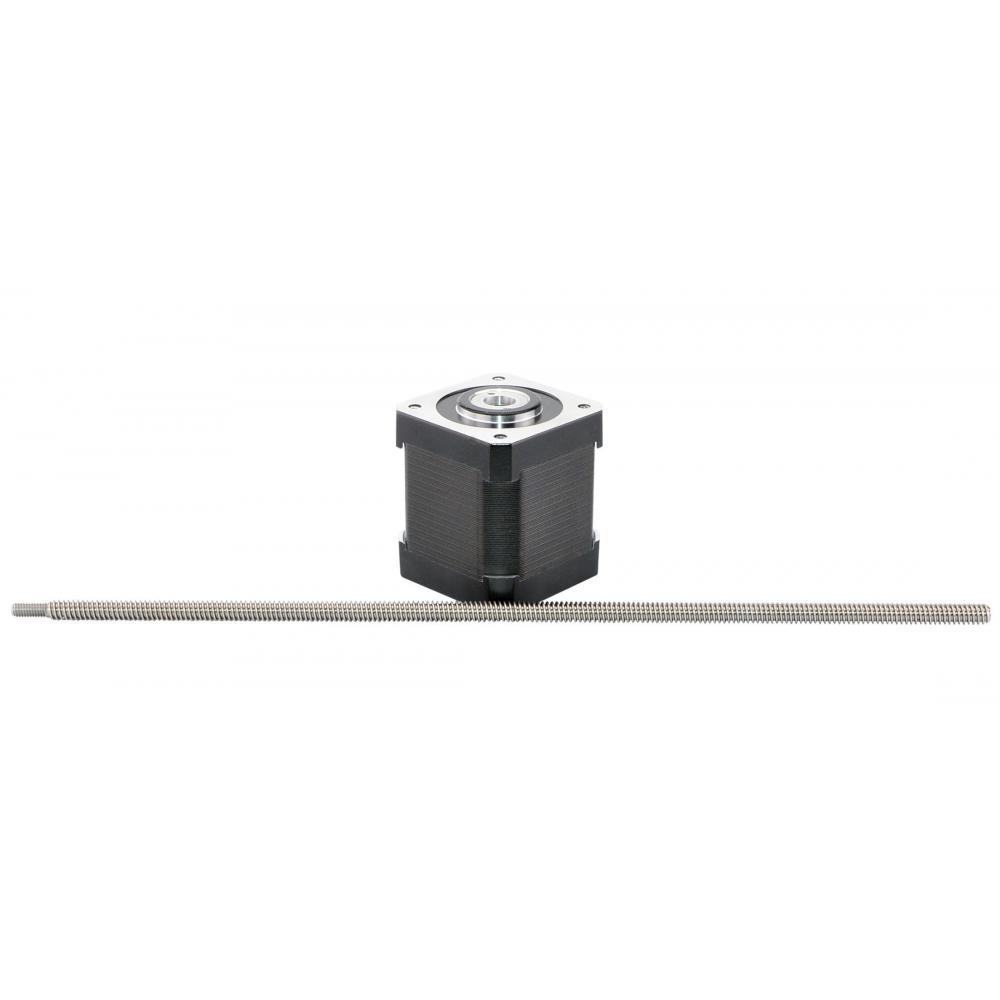

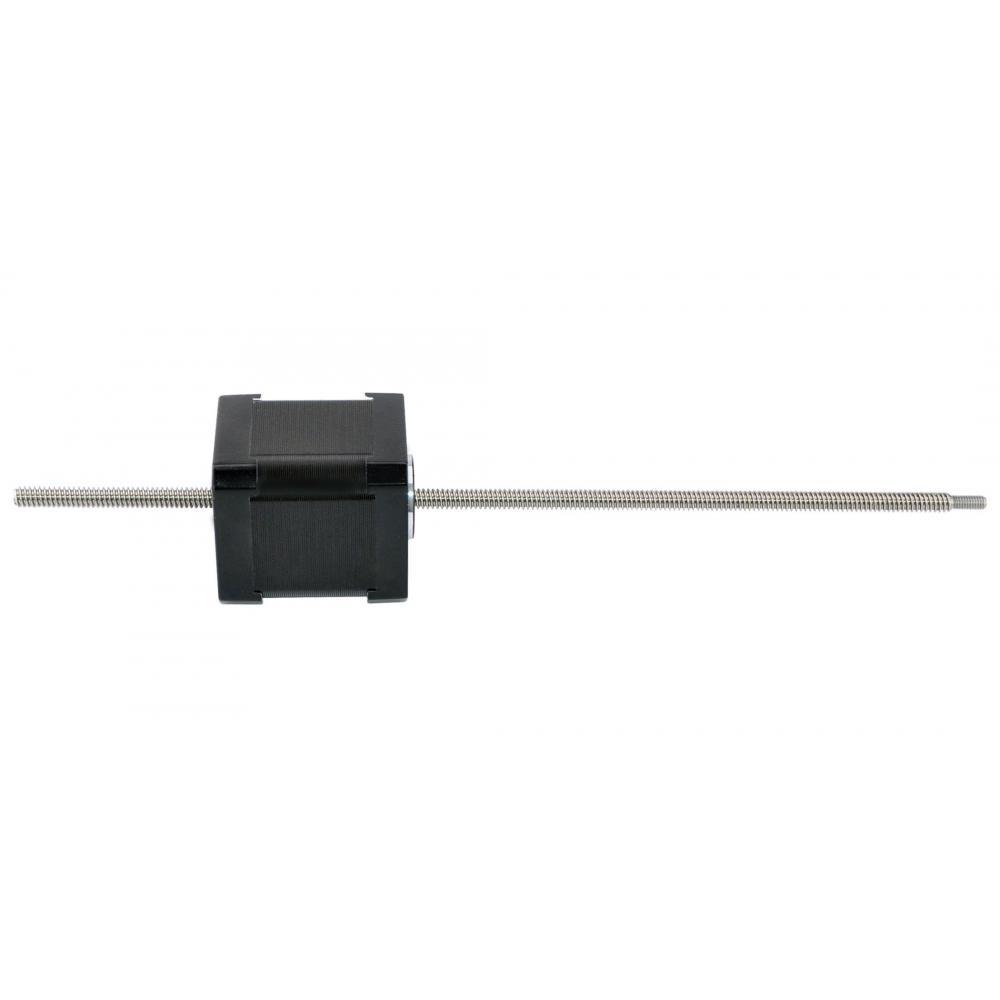

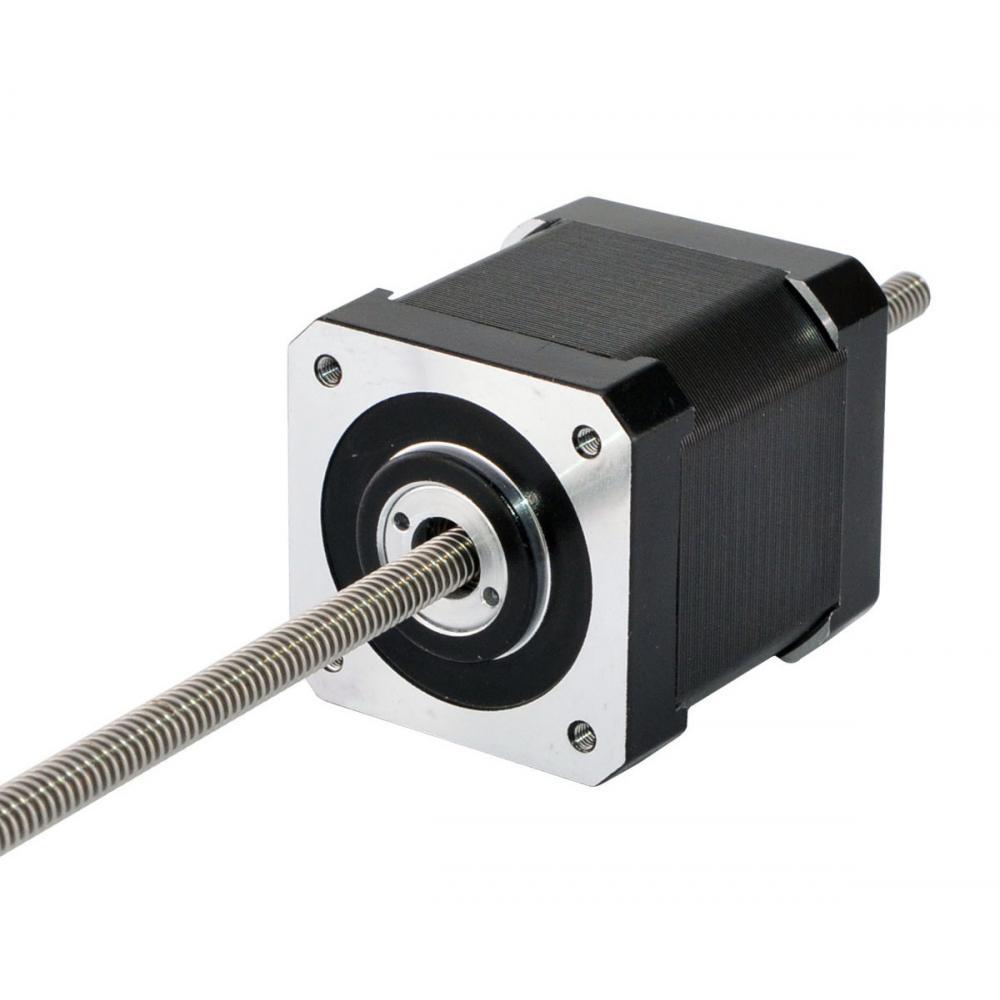

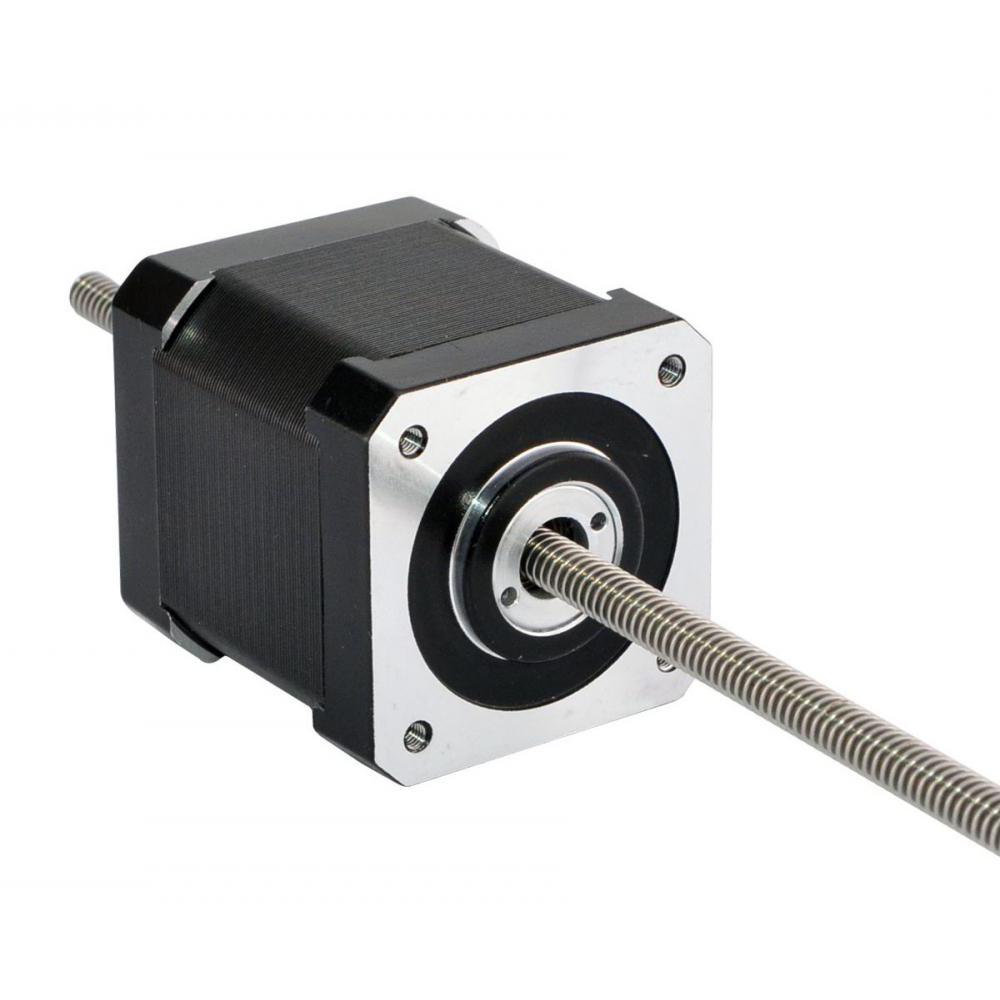

Smooth movement,Long Life, Precision Non-captive type, Nema 17 - 42.2x42.2x47.75mm, Lead /Step 0.024384mm, Lead Screw Diameter Φ5.54mm, Lead Screw Length 250mm, Rated current 1.30A, 2 Phase Bipolar
USD 82.76
Availability: 15 Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Inductance(mH) | 6.66 |
| Phase Resistance(ohm) | 3.96 |
| Rated Current(A) | 1.3 |
| Minimal Thrust(N) | 133 |
| Physical Specification | |
| Lead Length(mm) | 300 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 47.75 |
| Motor Type | Non-Captive |

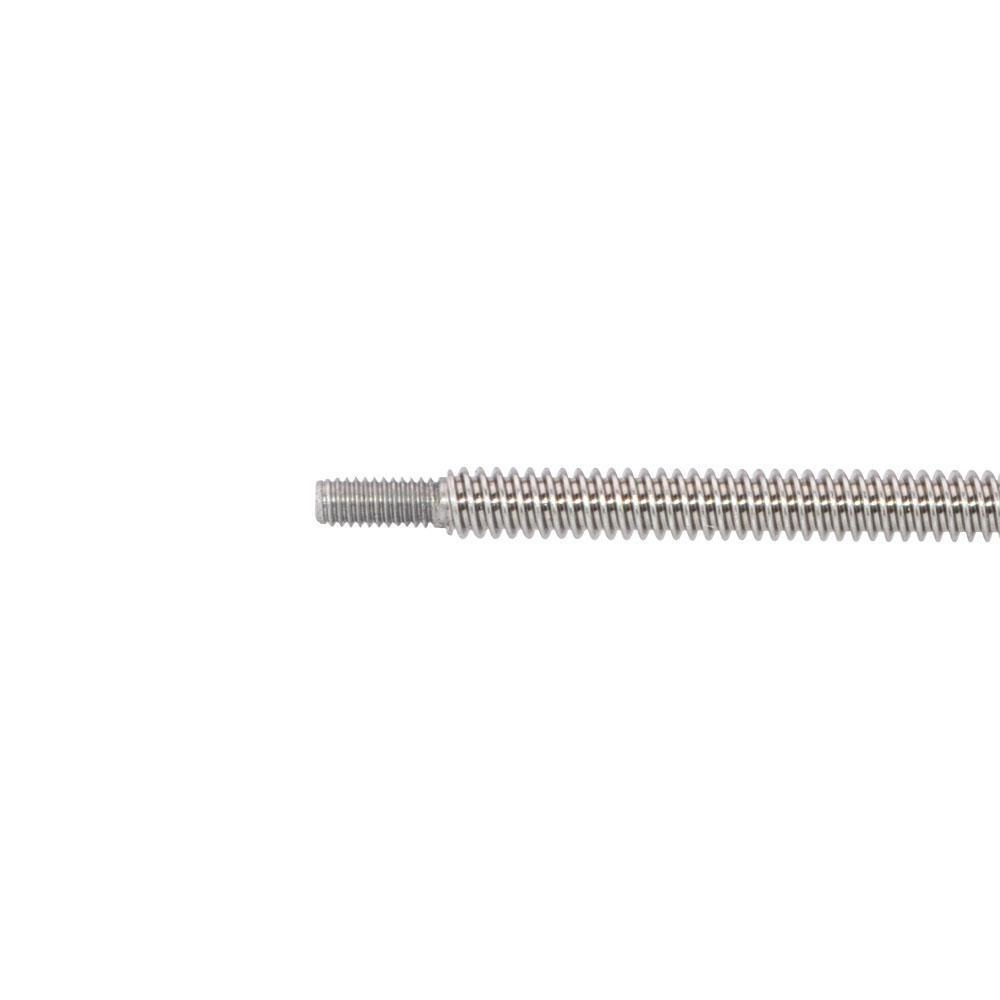

| Lead Screw Diameter(mm) | 5.54 |
| Lead Screw Length(mm) | 250 |
| Lead Travel/Revolution(mm) | 4.8768 |
| Lead Travel/Step(mm) | 0.024384 |
