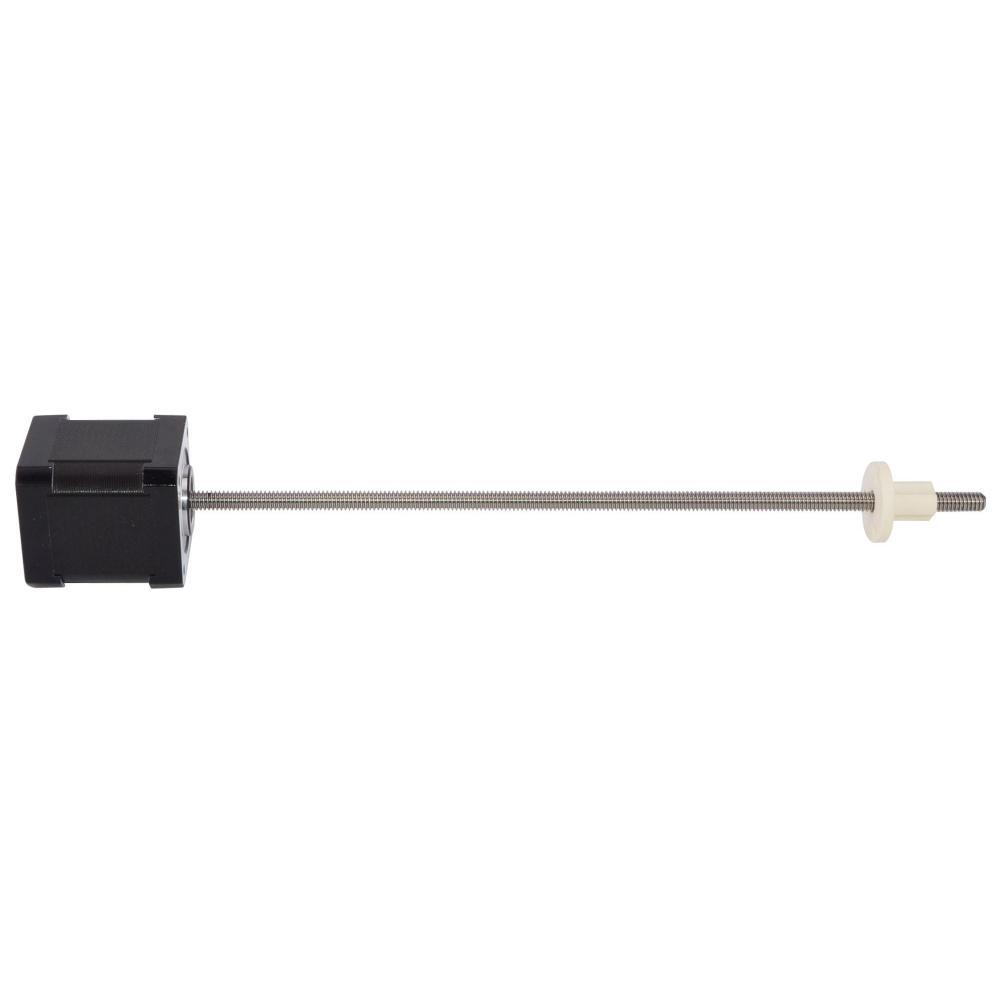

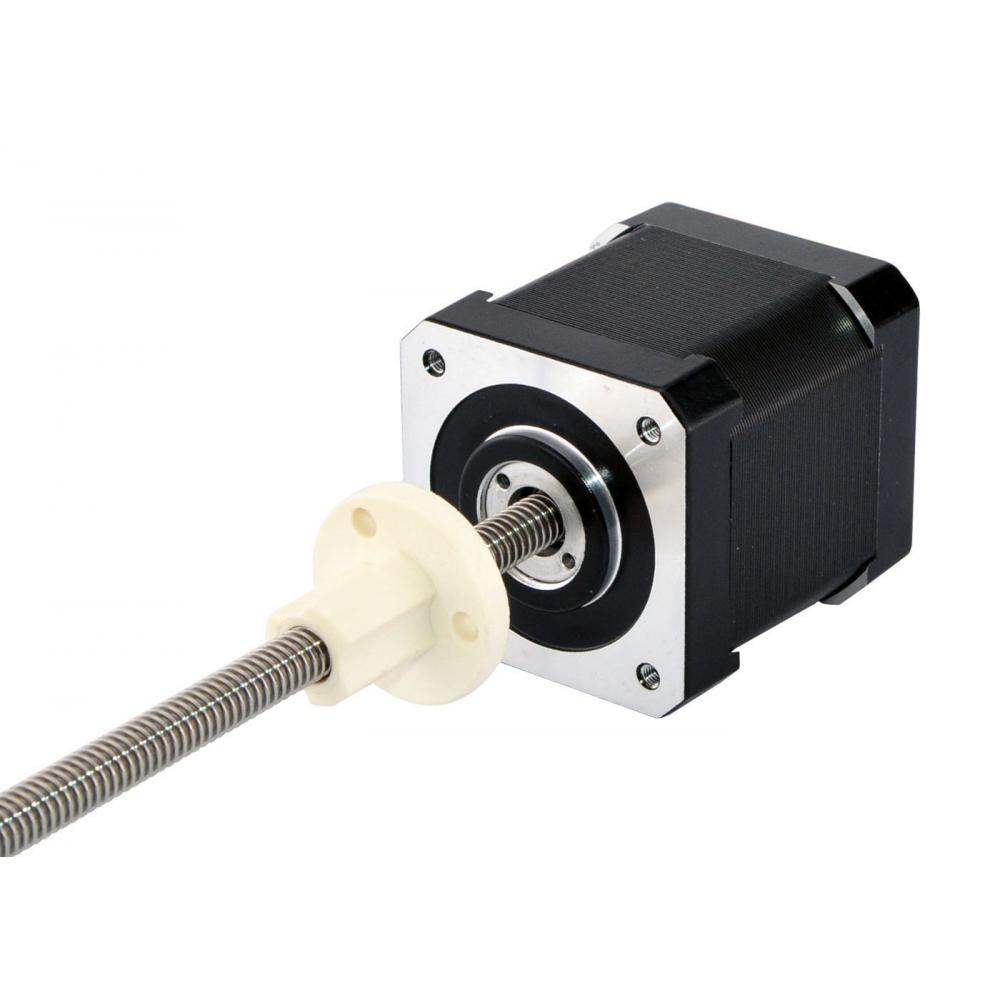

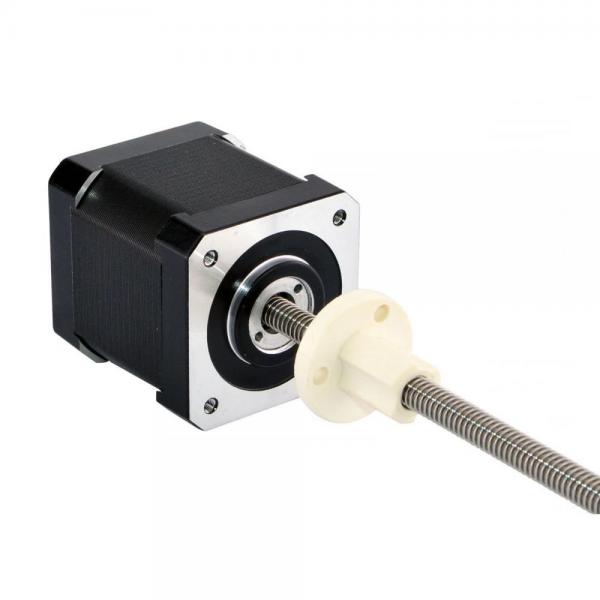

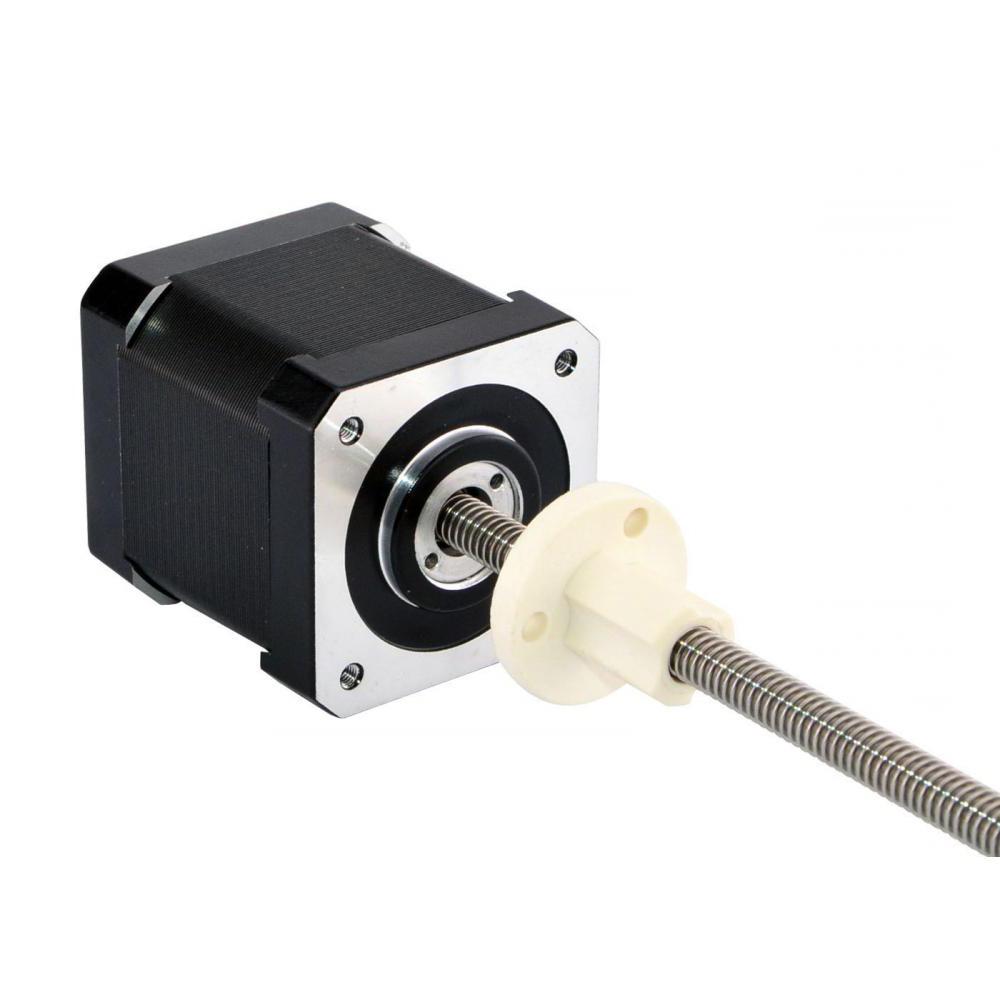

17LS19-1304J-250E

High Efficiency,Low Losses, Precision External type, Nema 17 - 42.2x42.2x47.75mm, Lead /Step 0.012192mm, Lead Screw Diameter  Φ5.54mm, Lead Screw Length 250mm, Rated current 1.30A, 2 Phase Bipolar

USD 76.74
Availability: 15
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Inductance(mH) 6.66
Phase Resistance(ohm) 3.96
Rated Current(A) 1.3
Minimal Thrust(N) 252
Physical Specification
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) 42x42
Body Length(mm) 47.75
Motor Type External

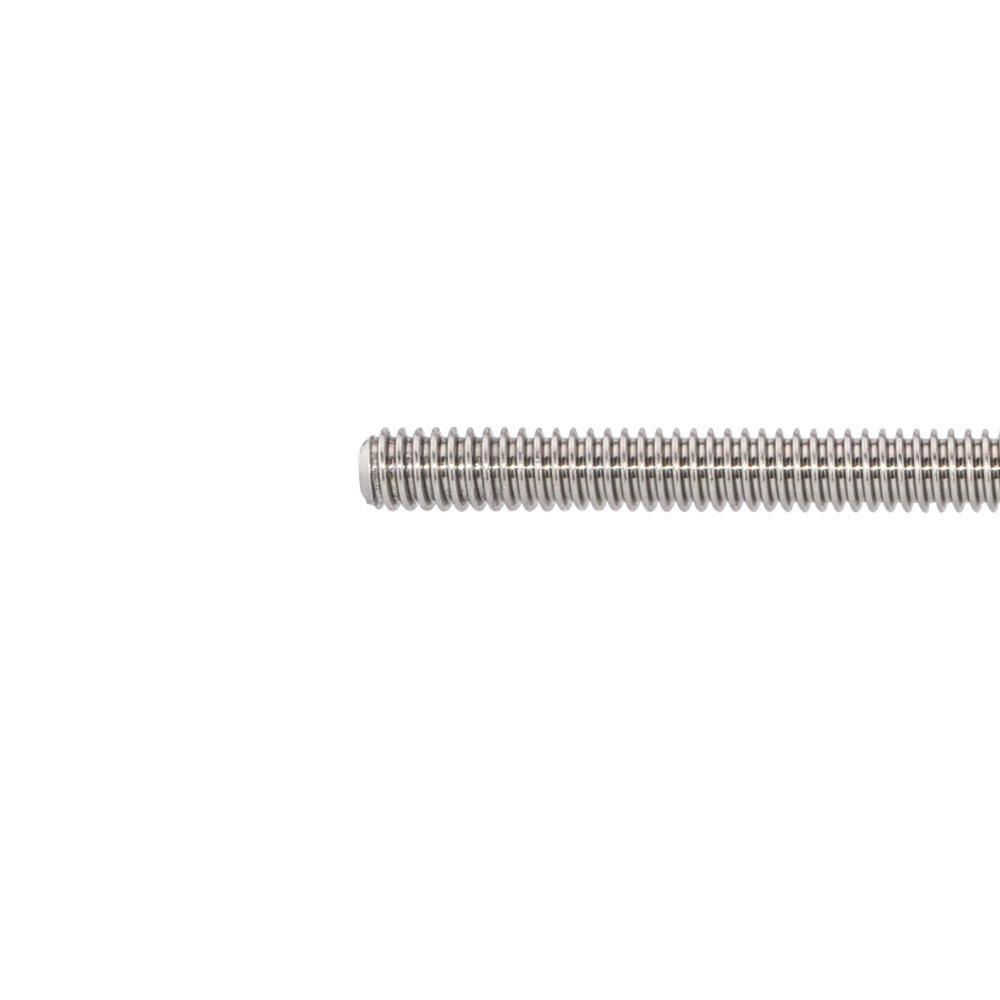

Lead Screw Diameter(mm) 5.54
Lead Screw Length(mm) 250
Lead Travel/Revolution(mm) 2.4384
Lead Travel/Step(mm) 0.012192
