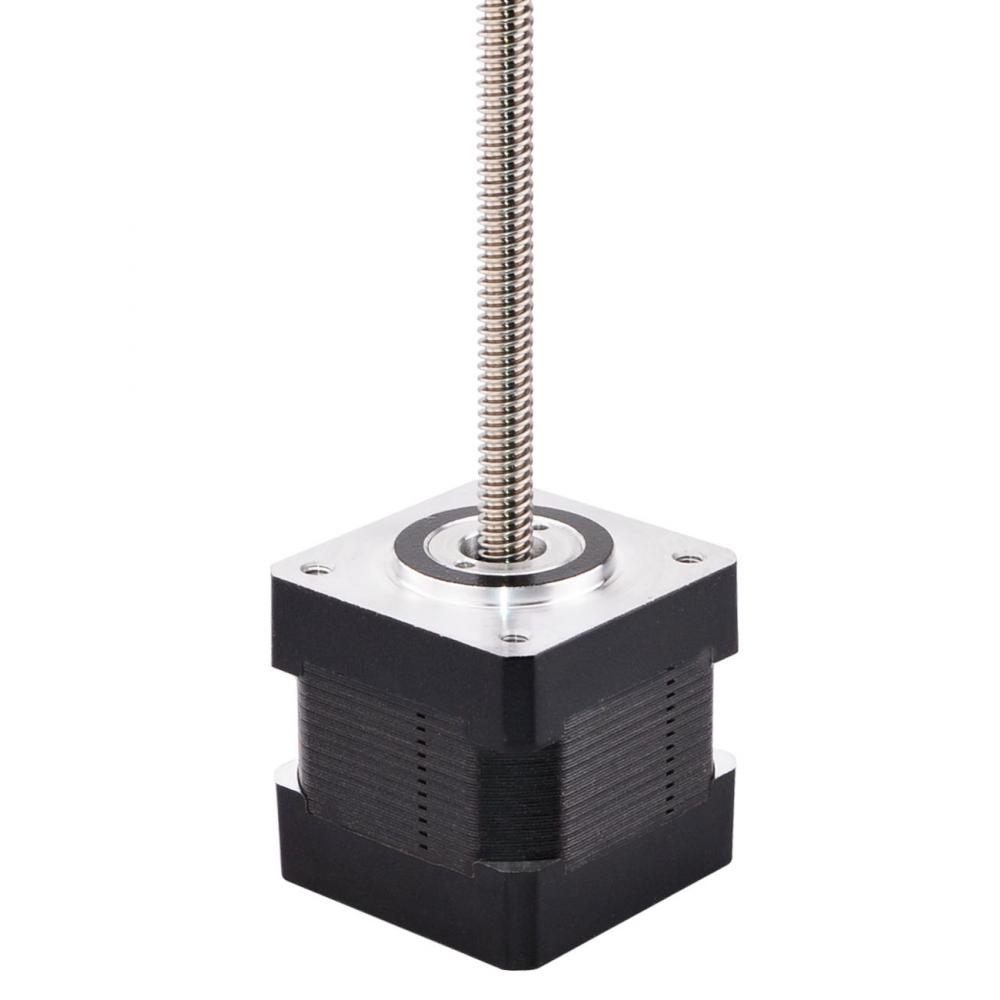

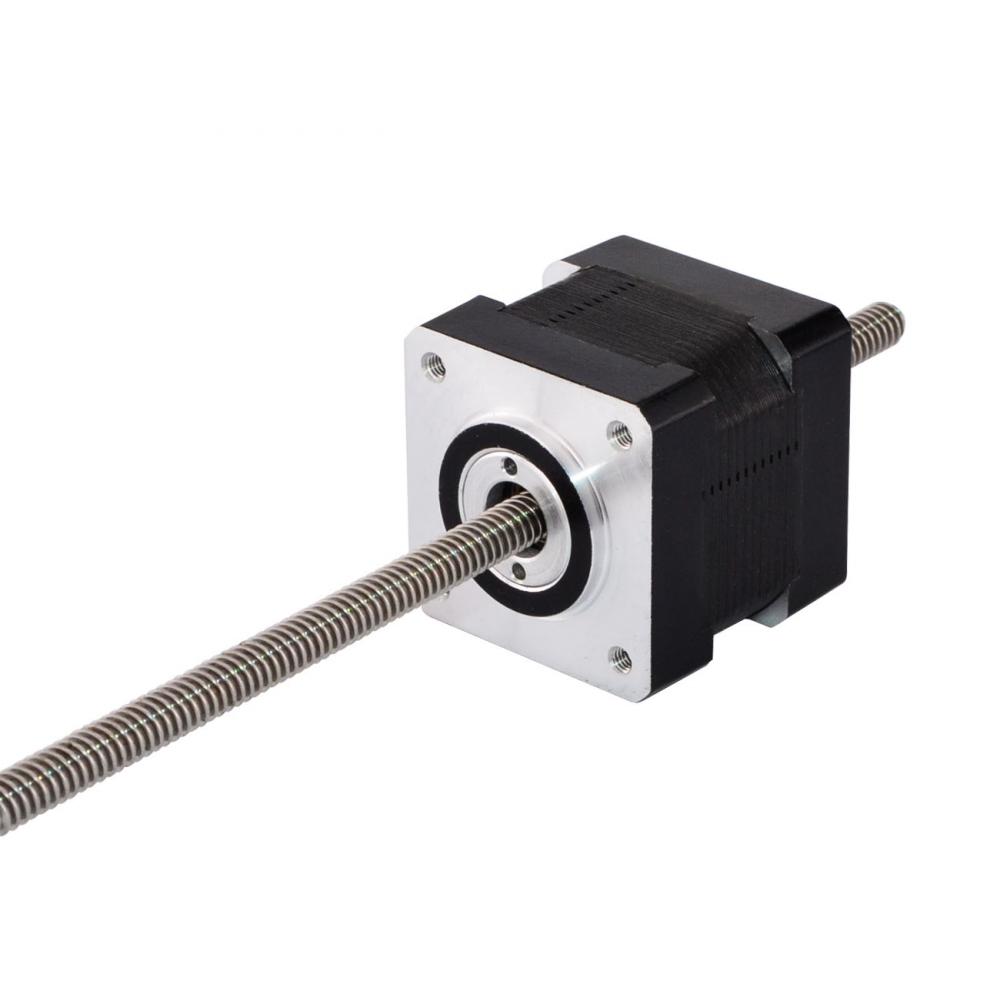

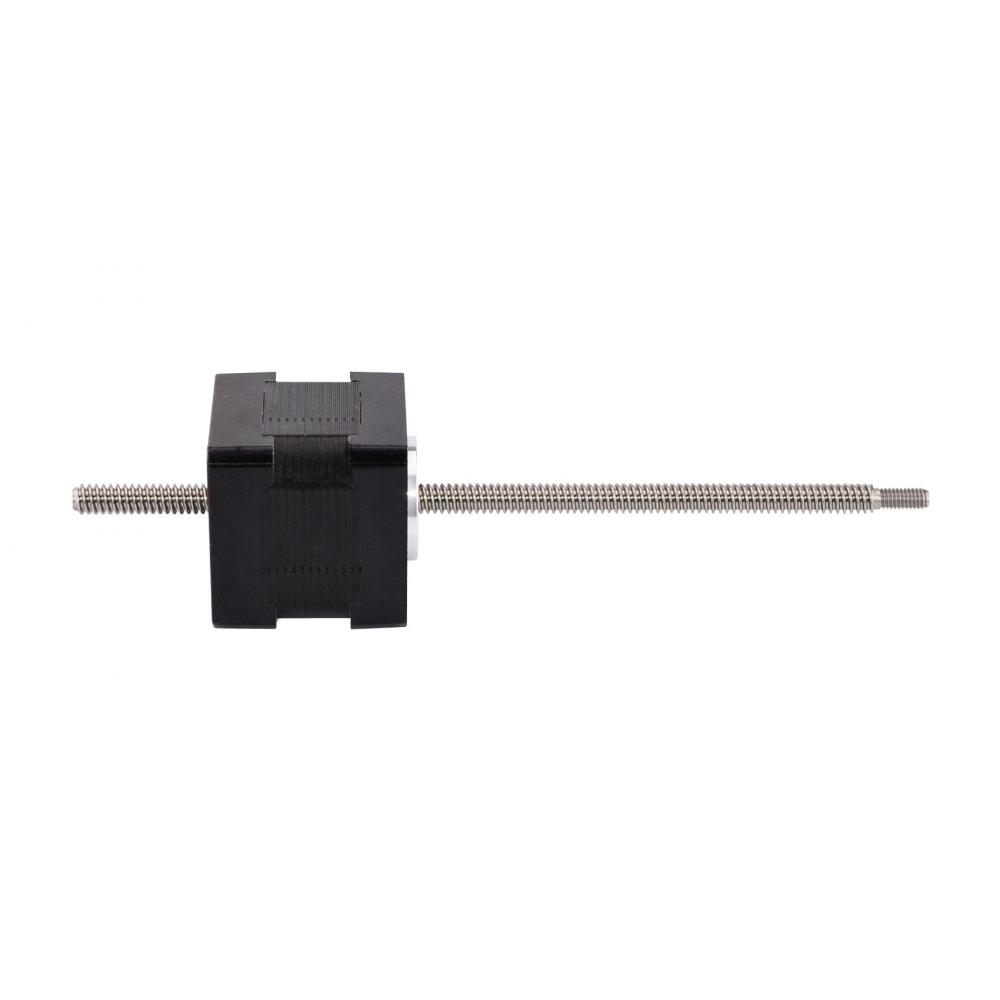

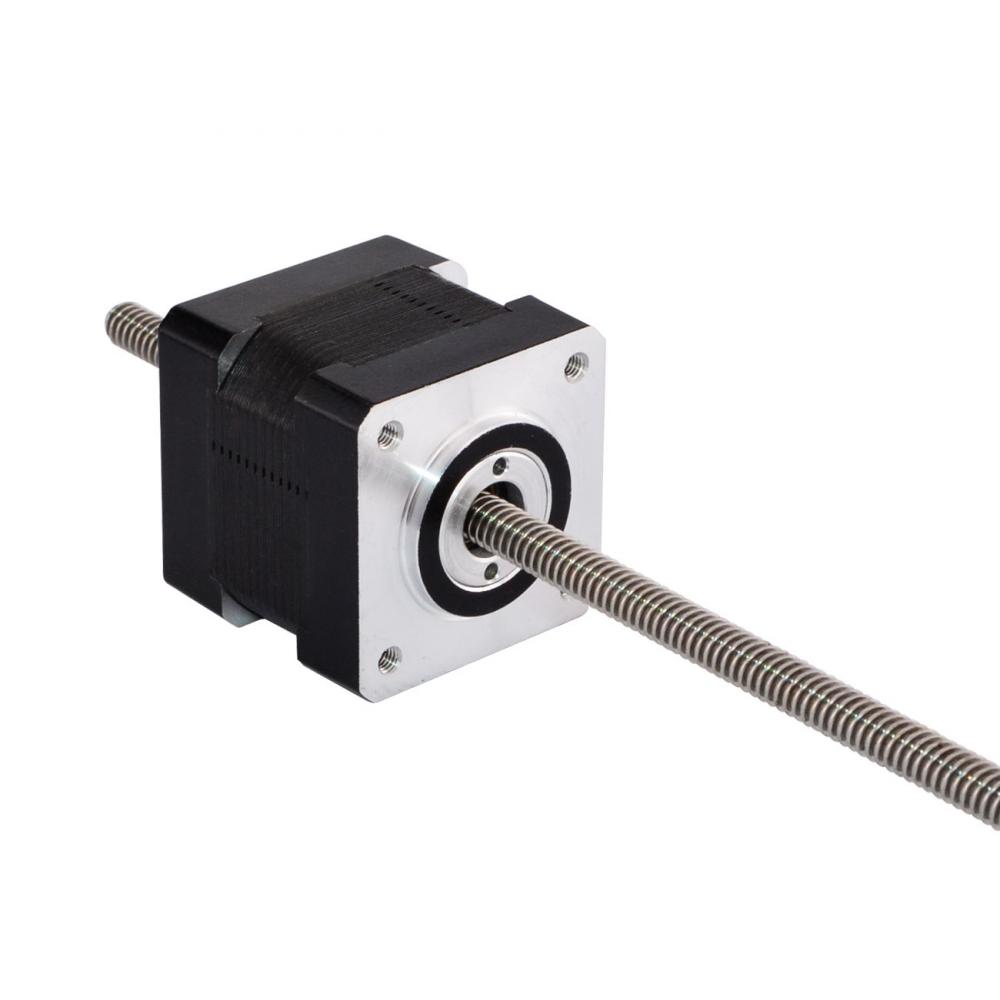

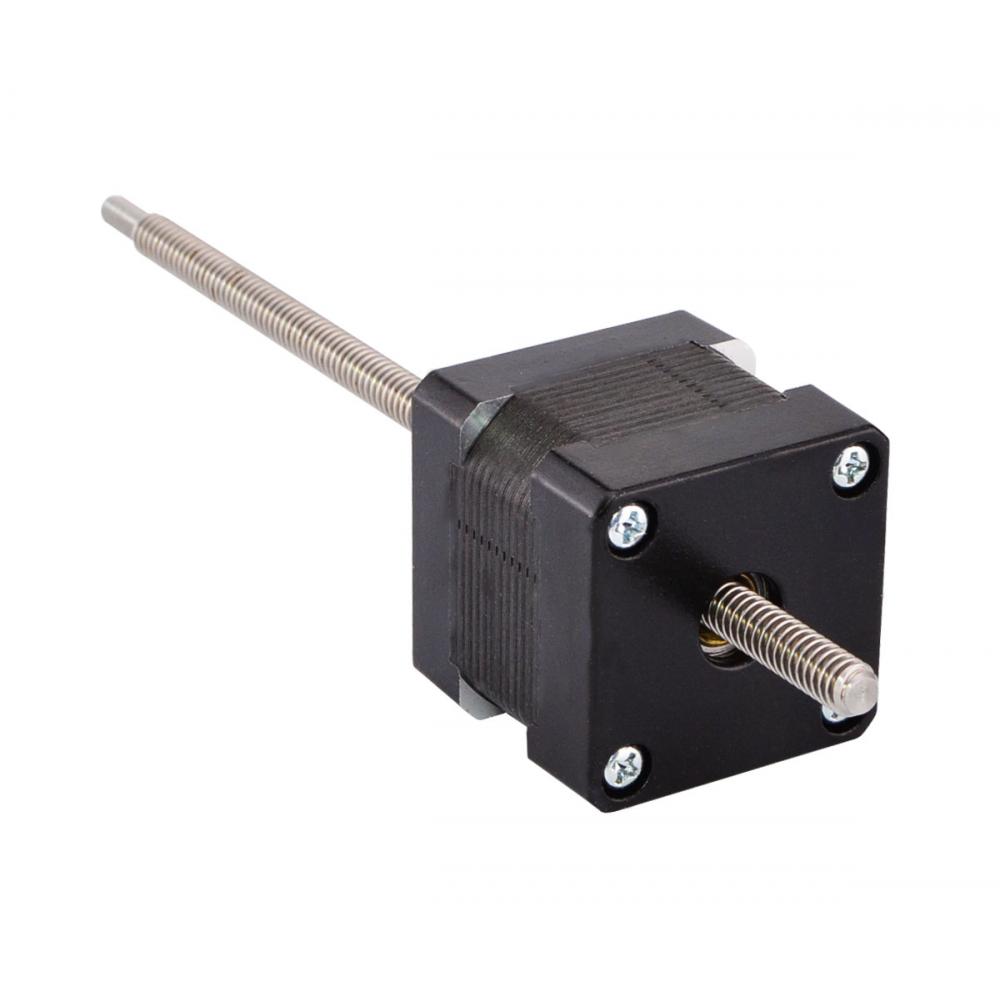

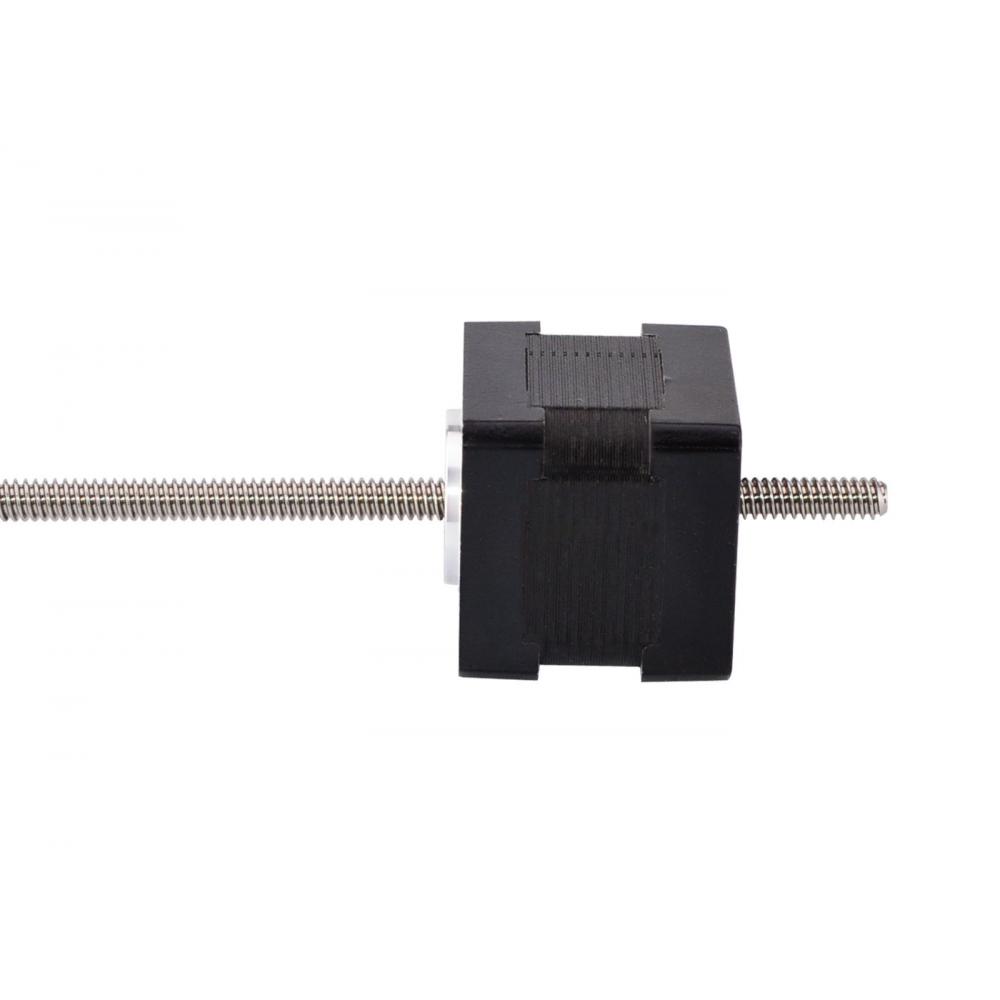

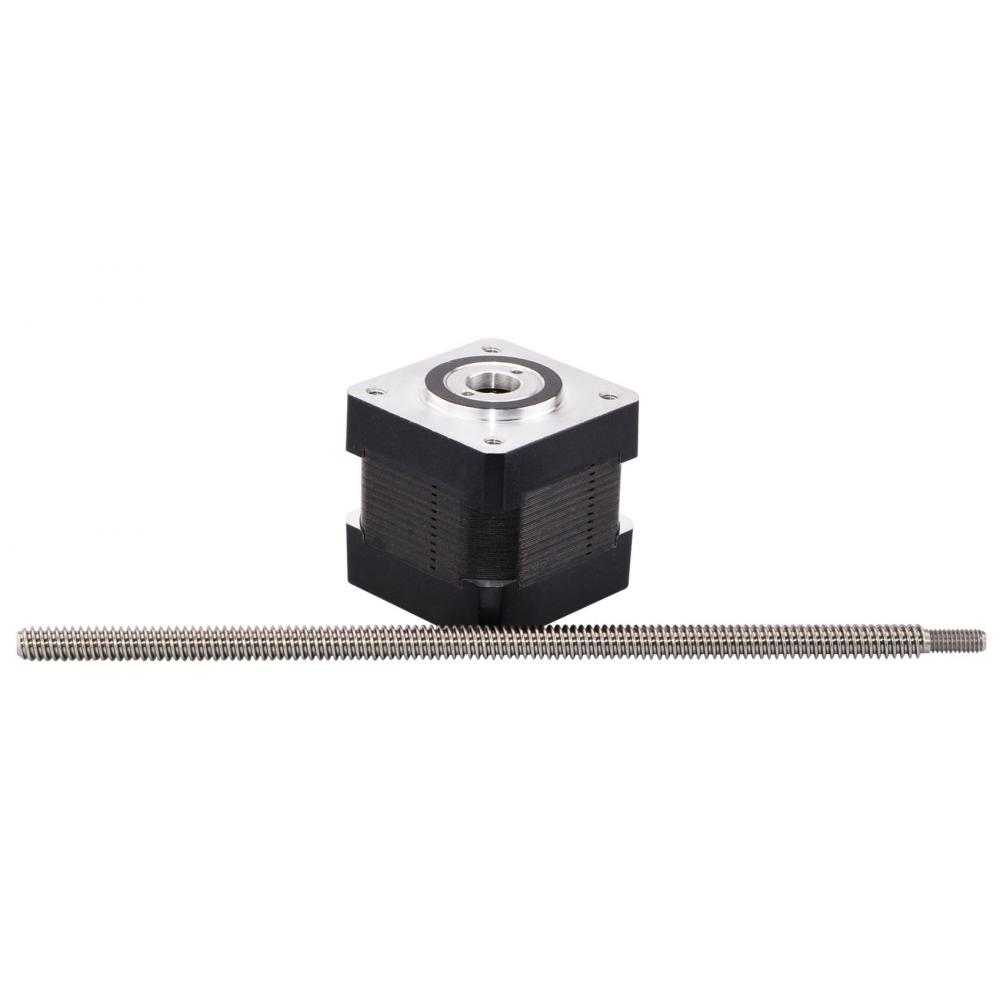

Low Losses,Long Life, Precision Non-captive type, Nema 14 - 35x35x34.5mm, Lead /Step 0.00397mm, Lead Screw Diameter Φ5.54mm, Lead Screw Length 150mm, Rated current 0.57A, 2 Phase Bipolar

USD 68.97
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Inductance(mH) 13
Phase Resistance(ohm) 8.8
Rated Current(A)
Physical Specification
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) 35x35
Body Length(mm) 34.5

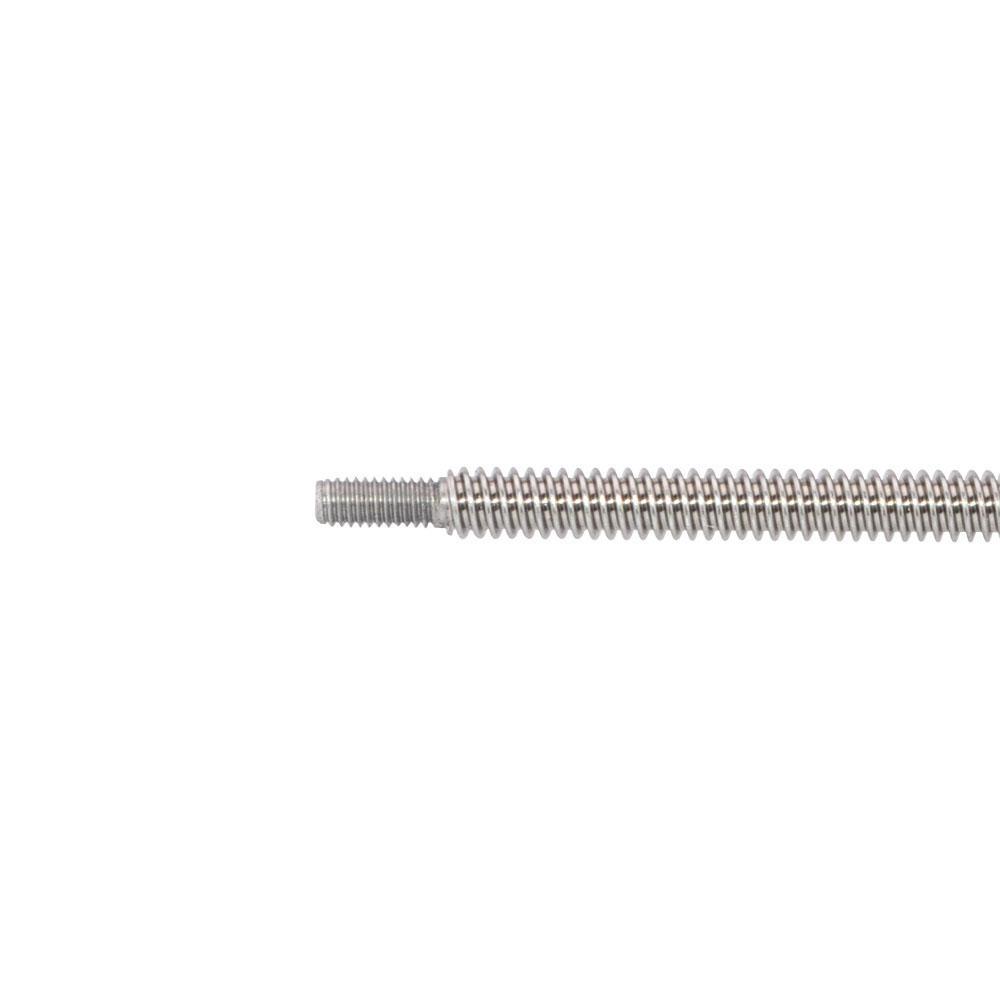

Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 150
Lead Travel/Revolution(mm) 0.79375
Lead Travel/Step(mm) 0.00396875

Do you have any questions about 14LS13-0574P-150N?
