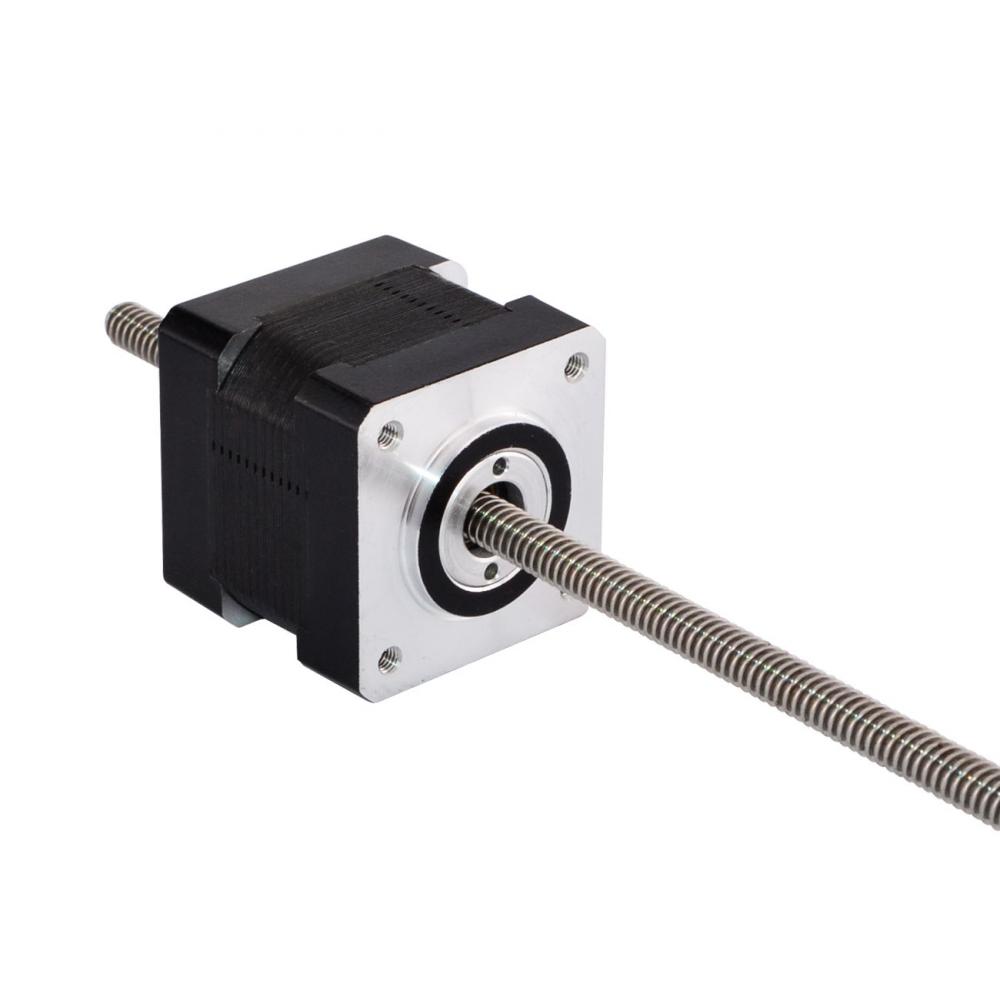

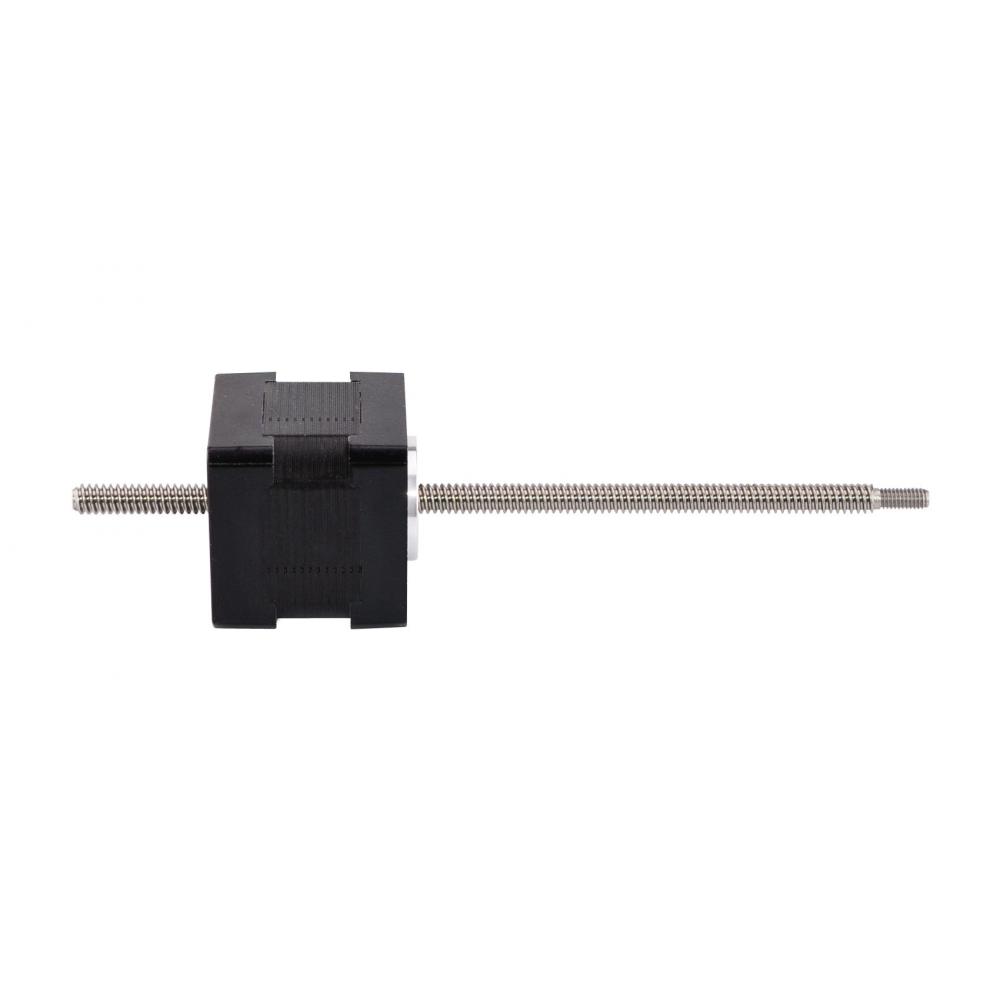

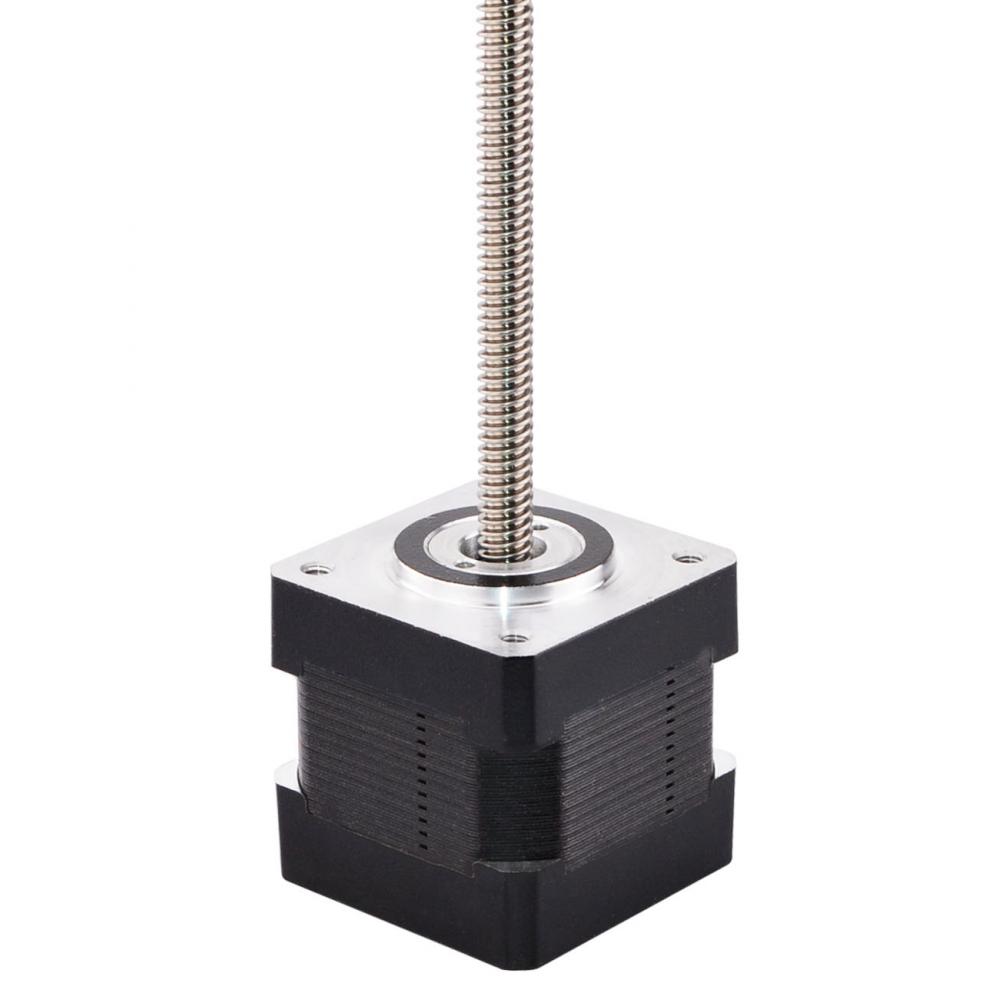

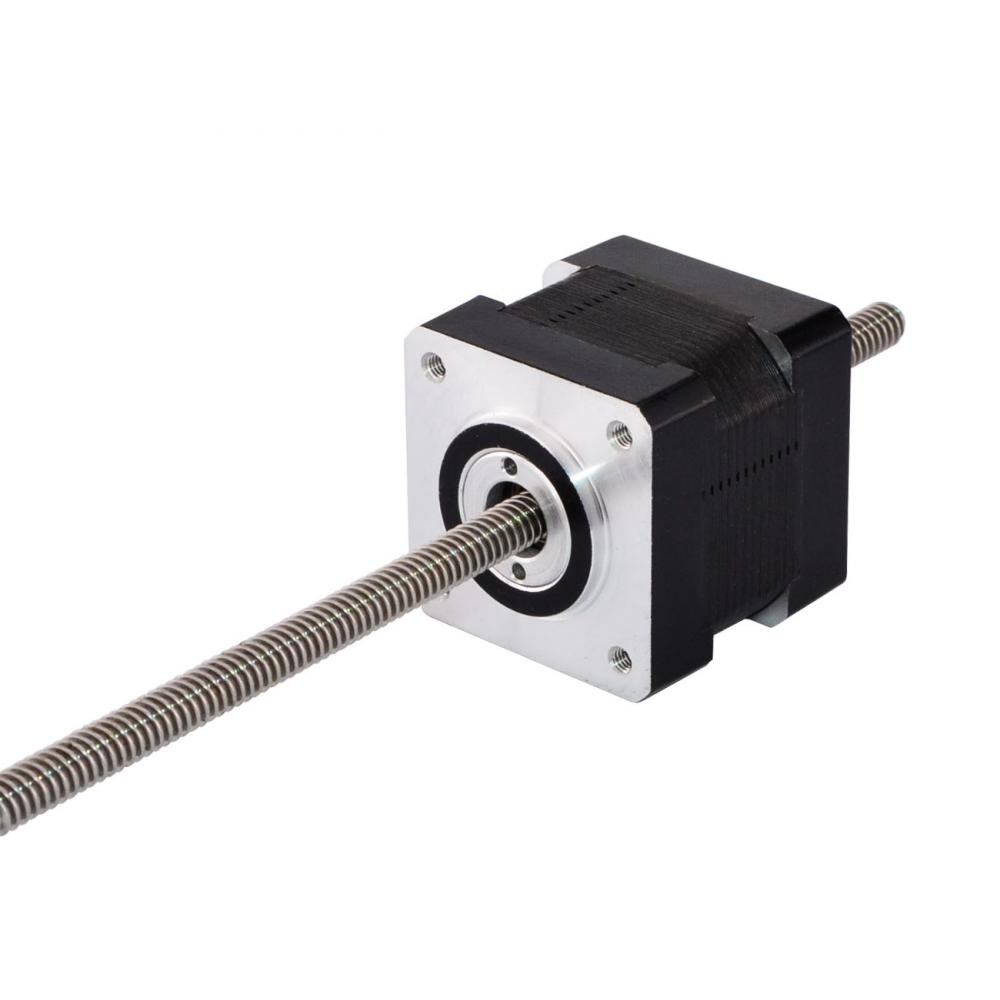

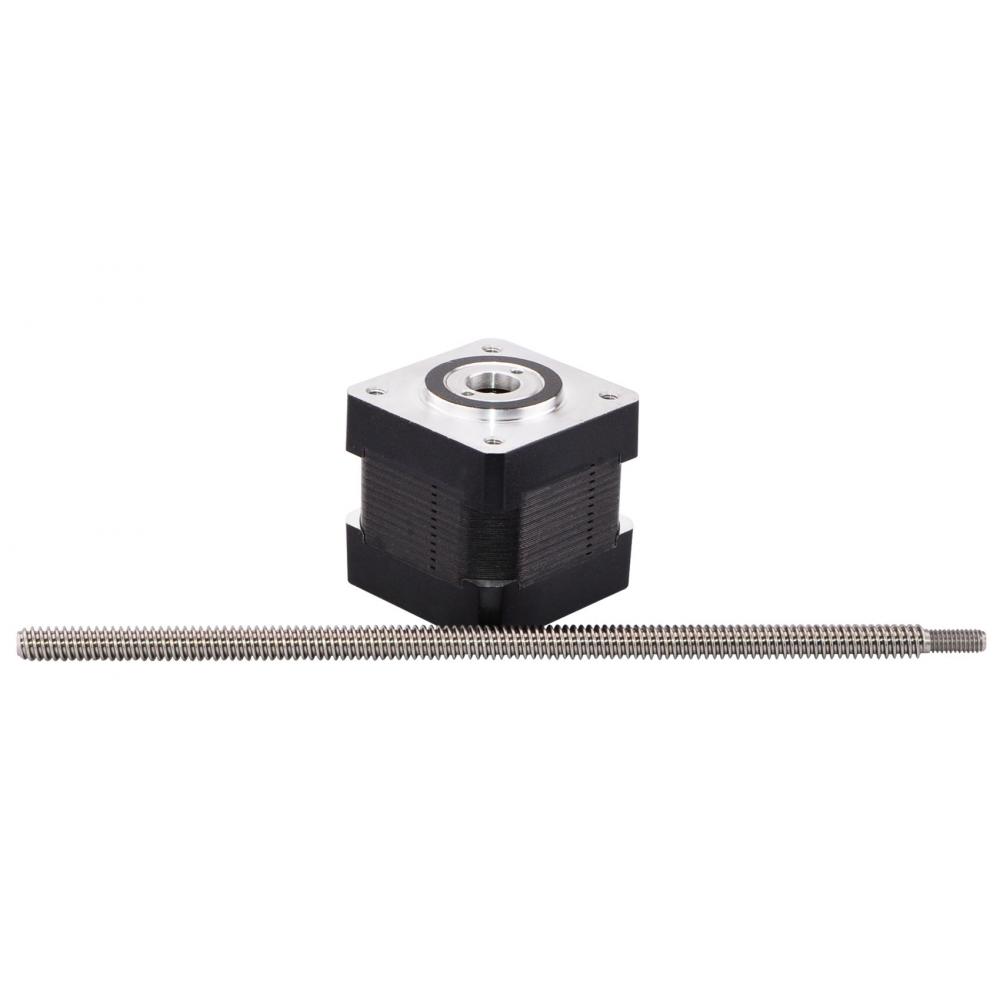

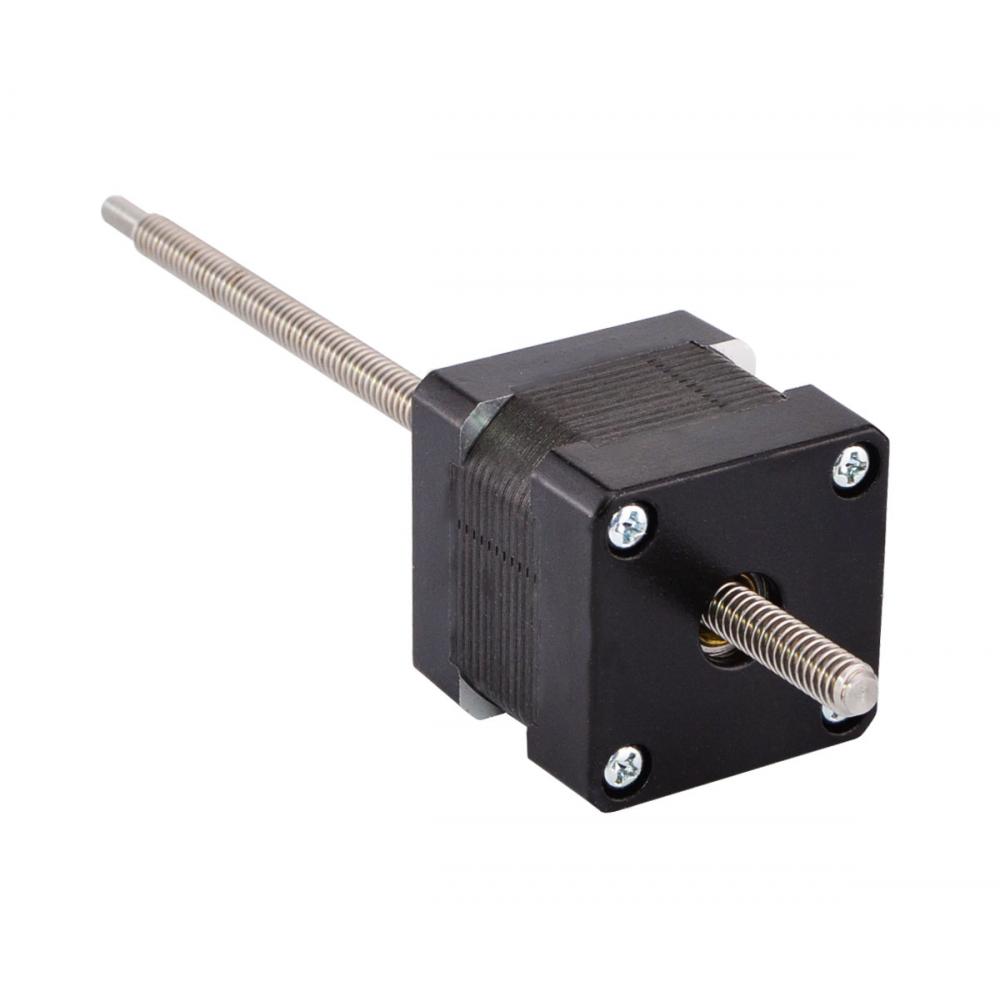

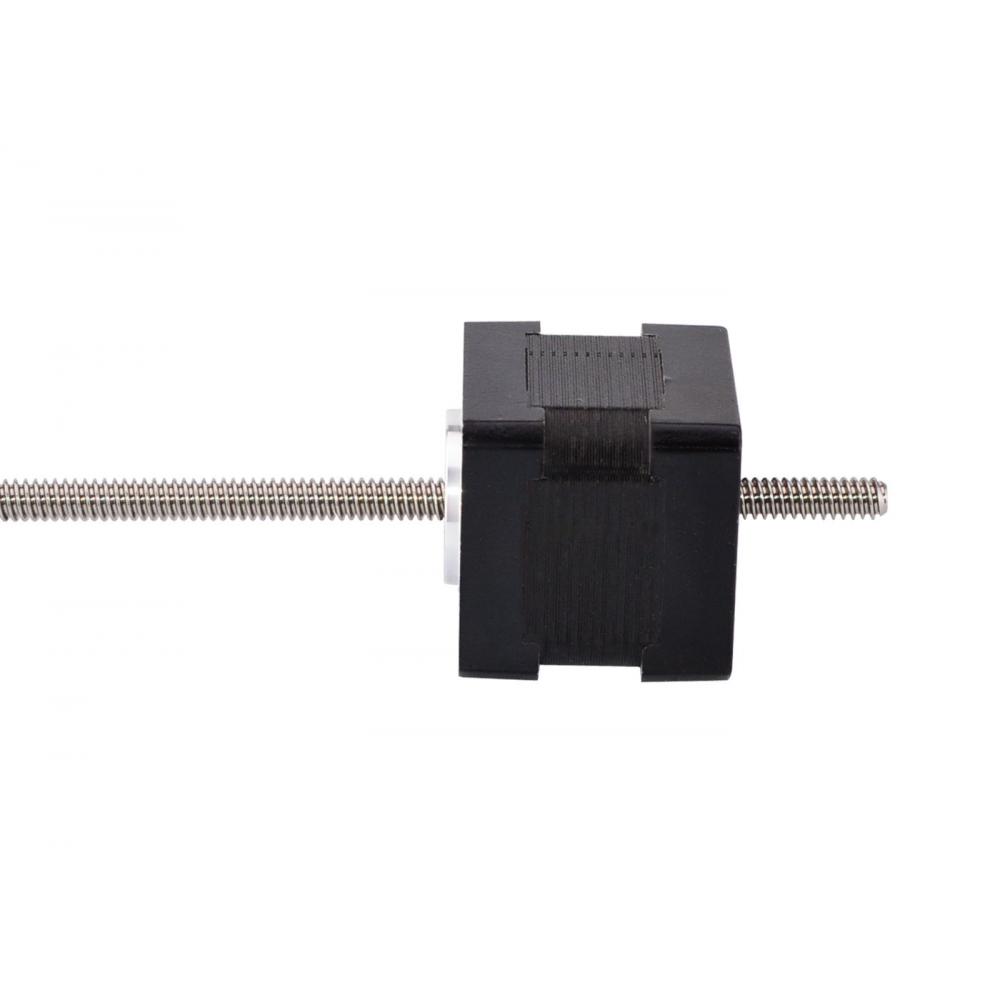

14LS13-0574J-150N
14LS13-0574J-150N
14LS13-0574J-150N
High Efficiency,Low Losses,
Precision Non-captive type,
Nema 14 - 35x35x34.5mm,
Lead /Step 0.01219mm,

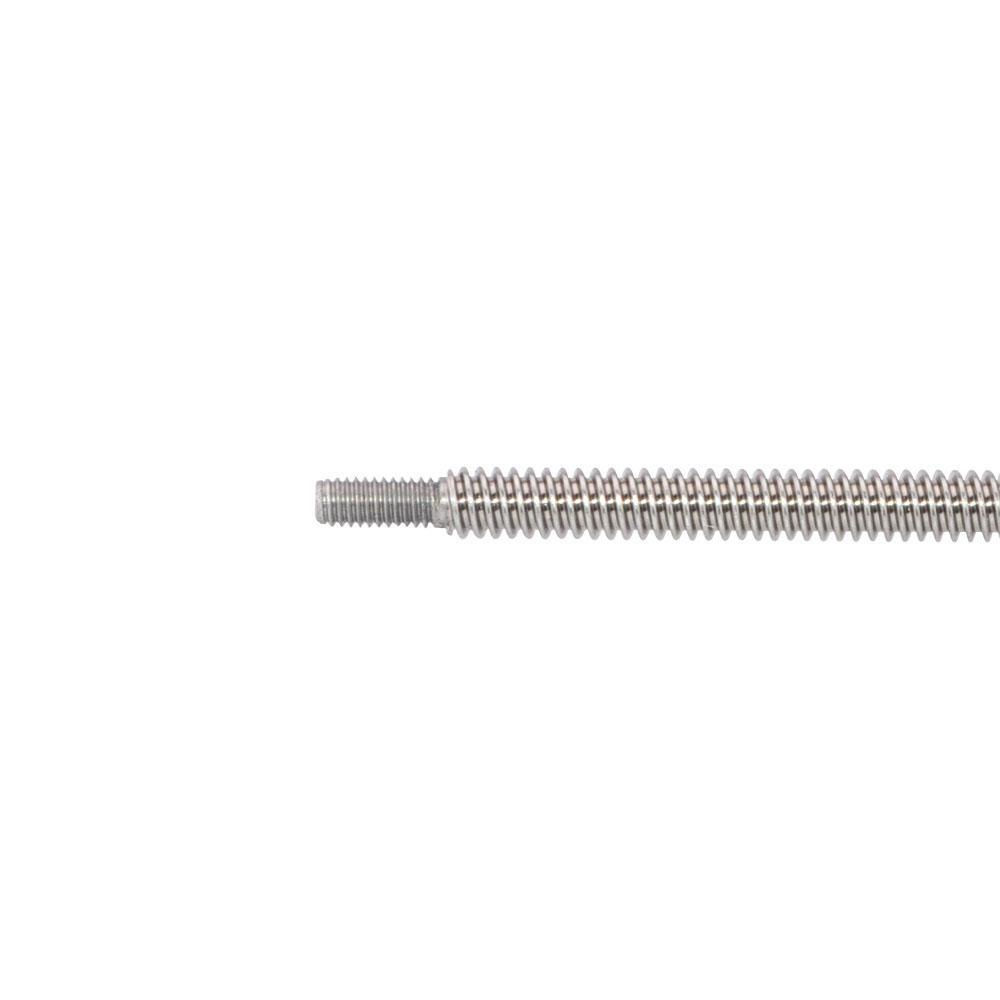

Lead Screw Diameter Φ5.54mm,
Lead Screw Length 150mm,
Rated current 0.57A, 2 Phase Bipolar
USD 68.97
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Inductance(mH) | 13 |
| Phase Resistance(ohm) | 8.8 |
| Rated Current(A) | 0.57 |
| Minimal Thrust(N) | 140 |
| Physical Specification | |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 34.5 |
| Motor Type | Non-Captive |
| Lead Screw Diameter(mm) | 5.54 |
| Lead Screw Length(mm) | 150 |
| Lead Travel/Revolution(mm) | 2.4384 |
| Lead Travel/Step(mm) | 0.012192 |
