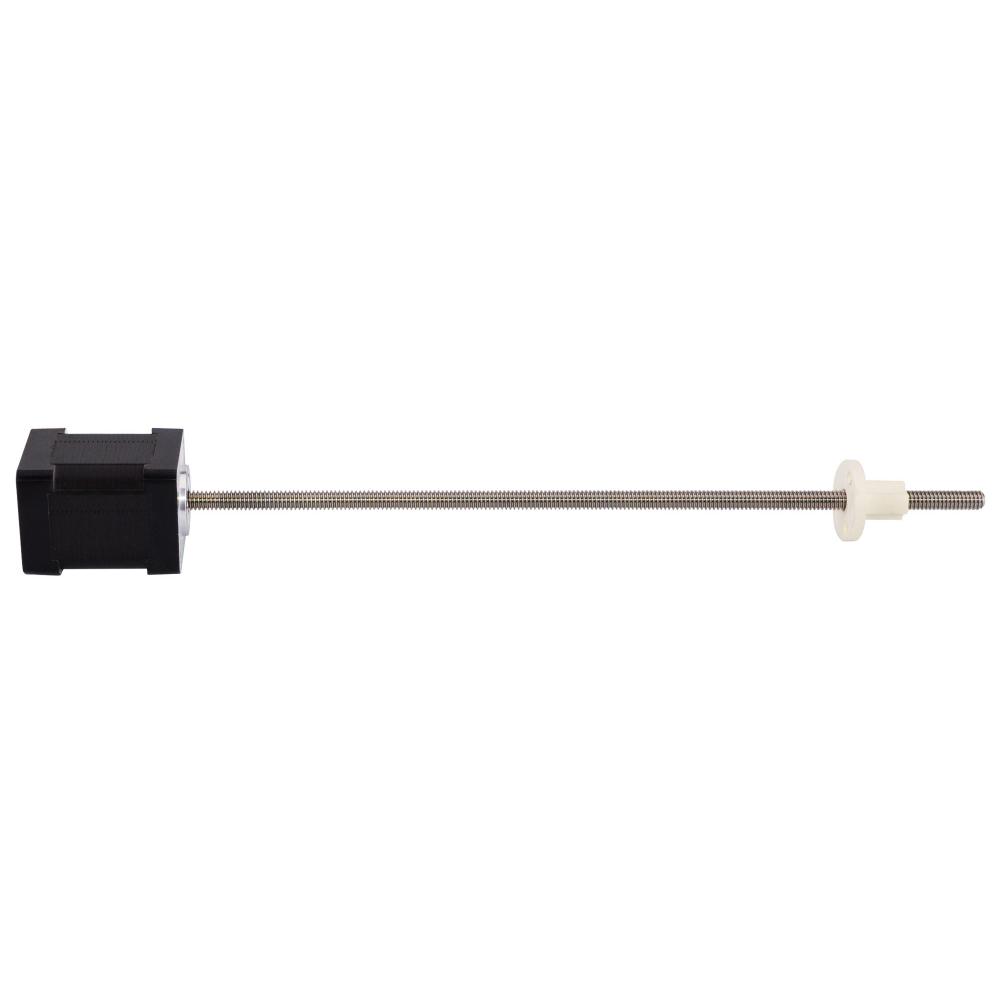

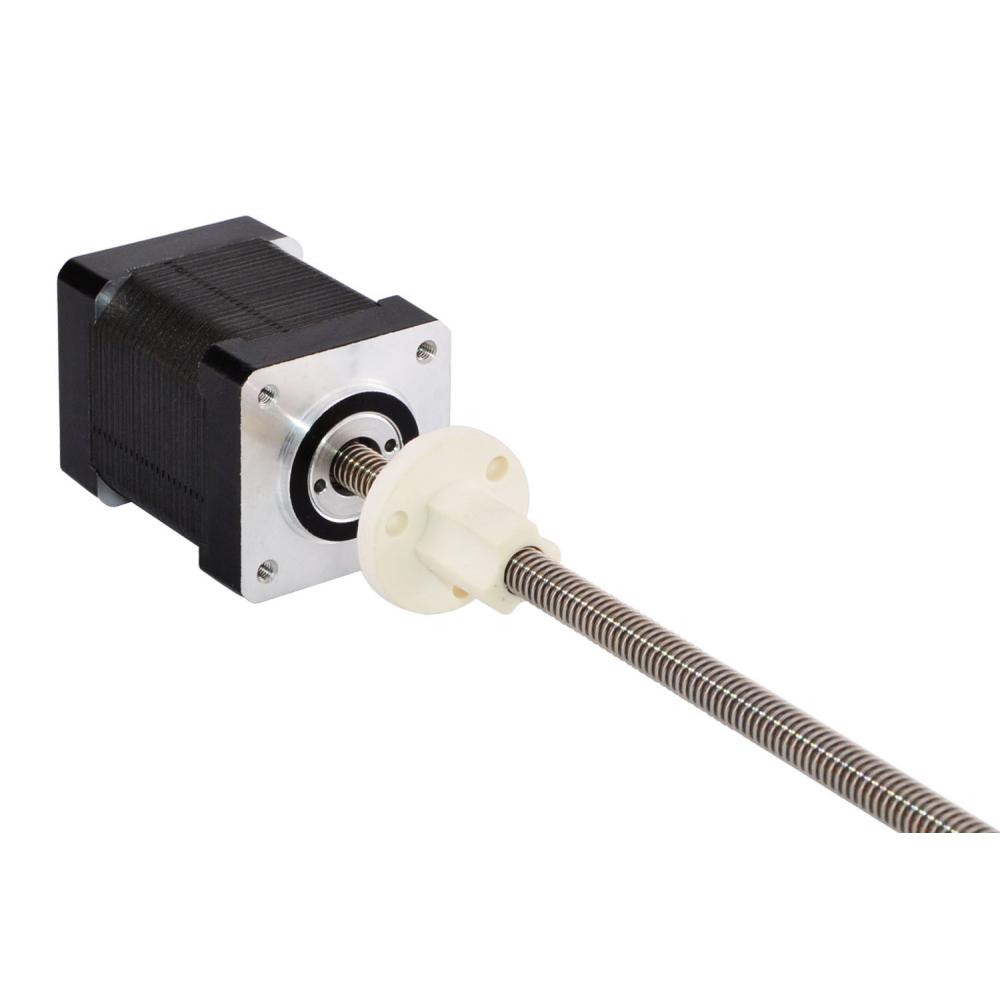

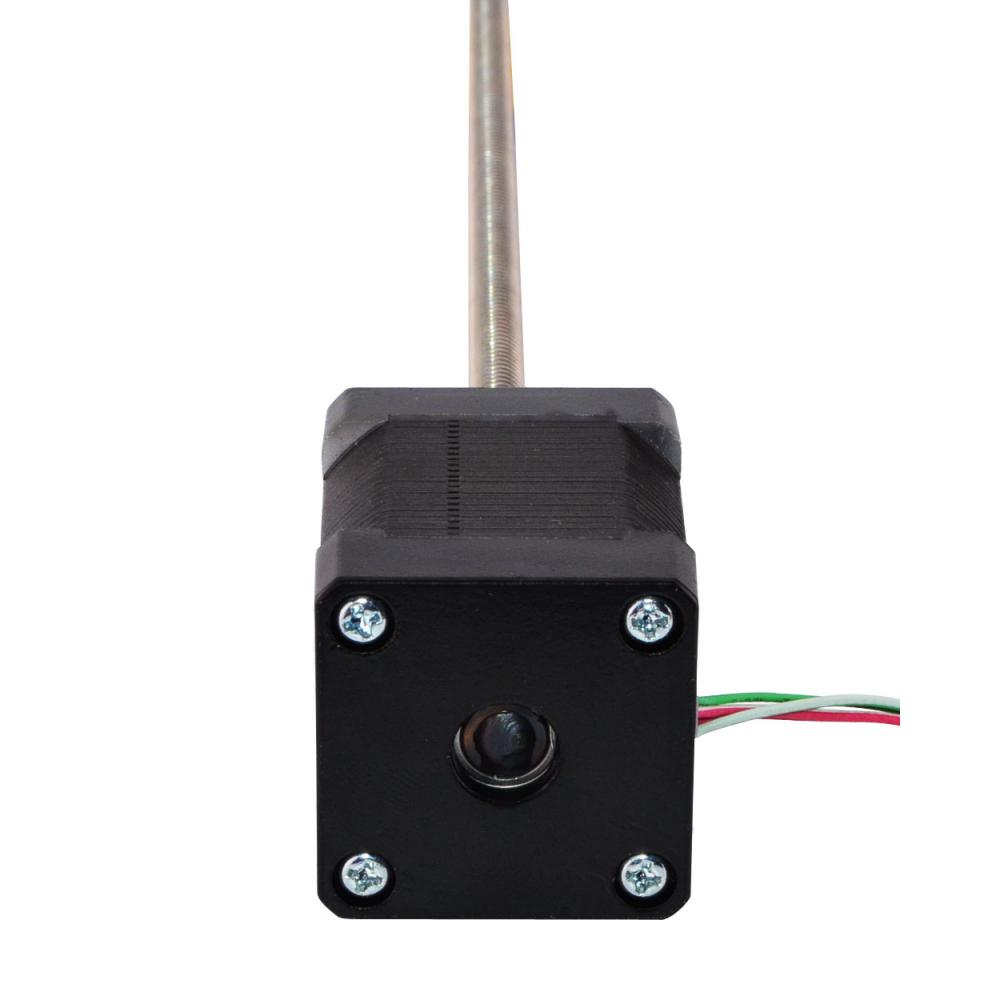

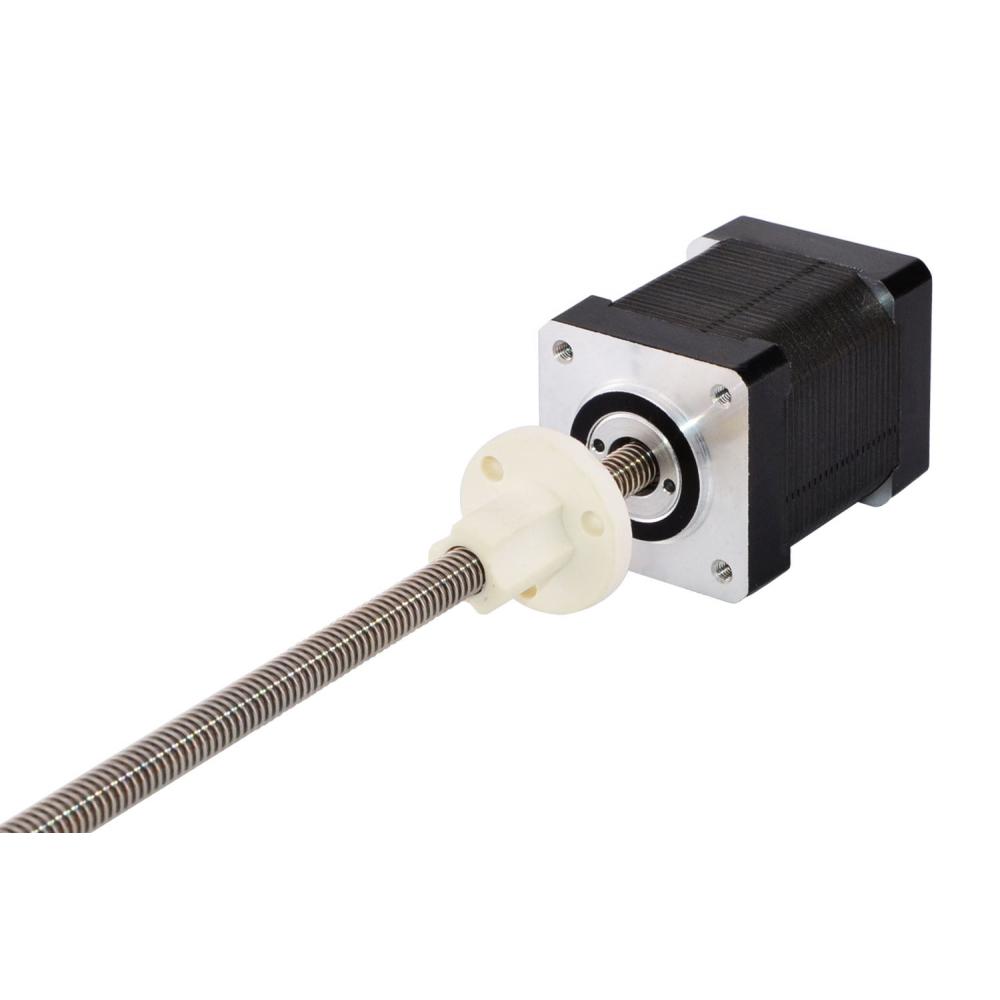

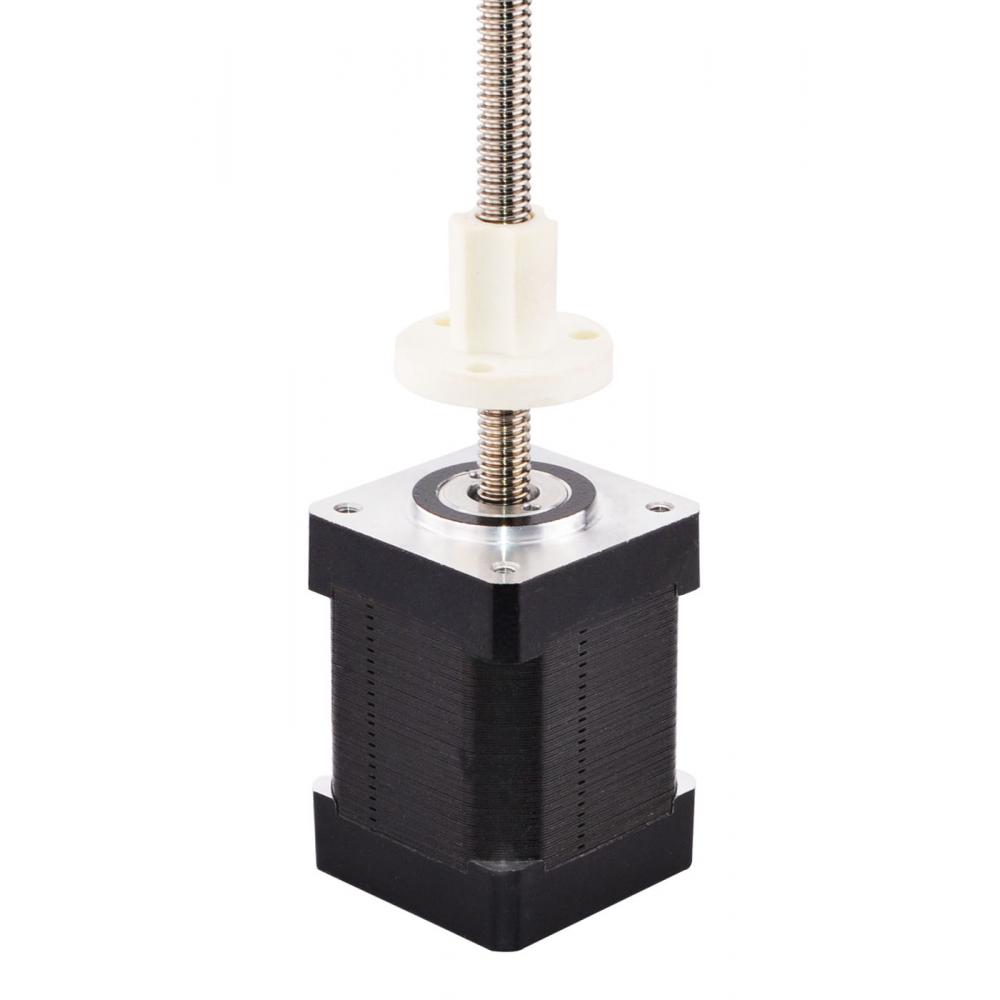

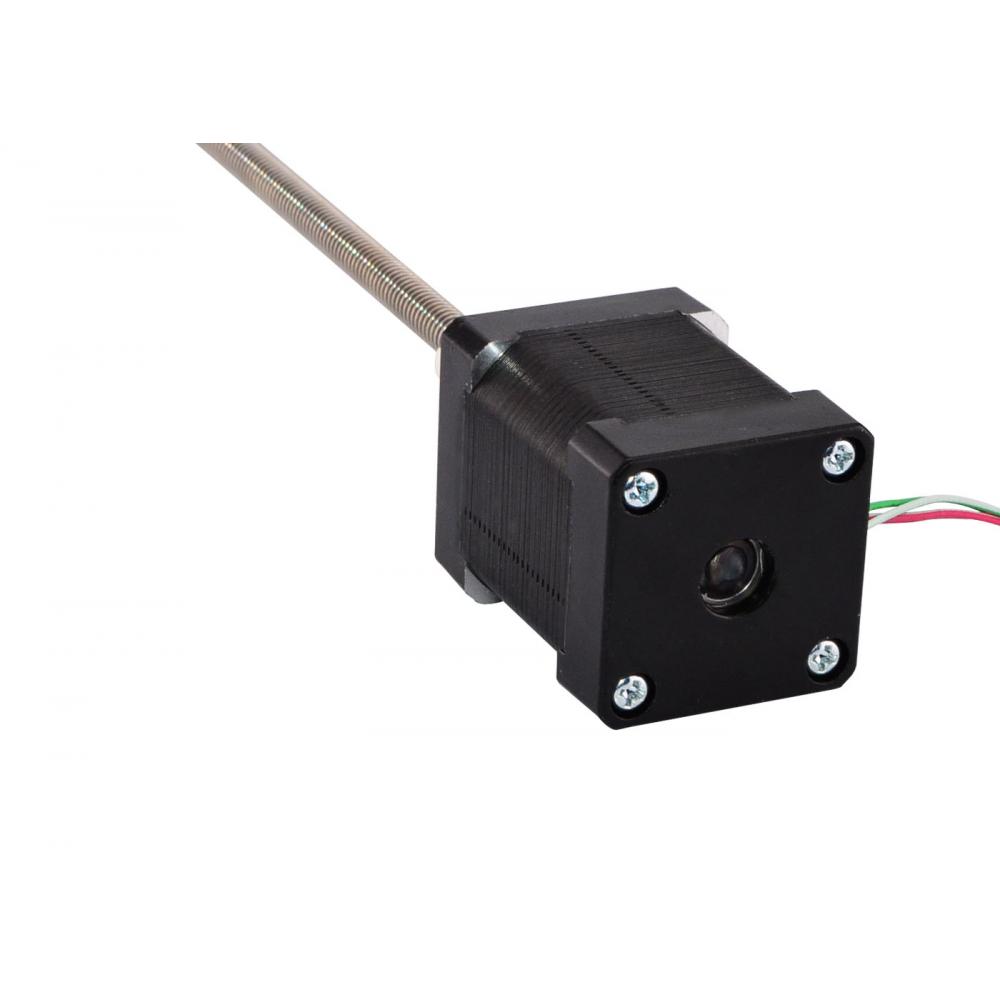

CART 14LS17-09149-250E
14LS17-09149-250E
14LS17-09149-250E
Low Losses,High Efficiency , Precision External type, Nema 14 - 35x35x48mm, Lead /Step 0.00635mm, Lead Screw Diameter Φ6.35mm, Lead Screw Length 250mm, Rated current 0.91A, 2 Phase Bipolar
USD 86.52
Availability: 100 Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Inductance(mH) | 7.63 |
| Phase Resistance(ohm) | 5.5 |
| Rated Current(A) | 0.91 |
| Minimal Thrust(N) | 224 |
| Physical Specification | |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 48 |
| Motor Type | External |

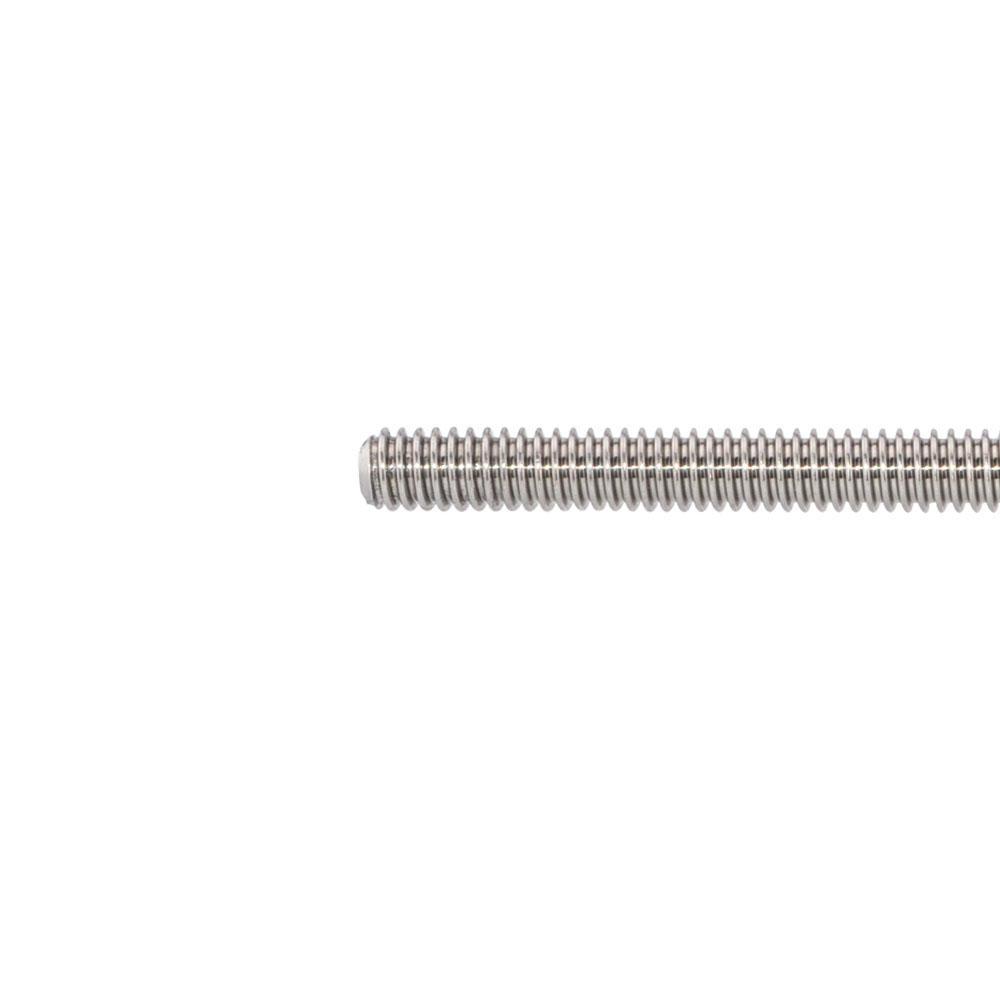

| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 250 |
| Lead Travel/Revolution(mm) | 1.27 |
| Lead Travel/Step(mm) | 0.00635 |
