CART 11LS13-04249-150N
11LS13-04249-150N
11LS13-04249-150N

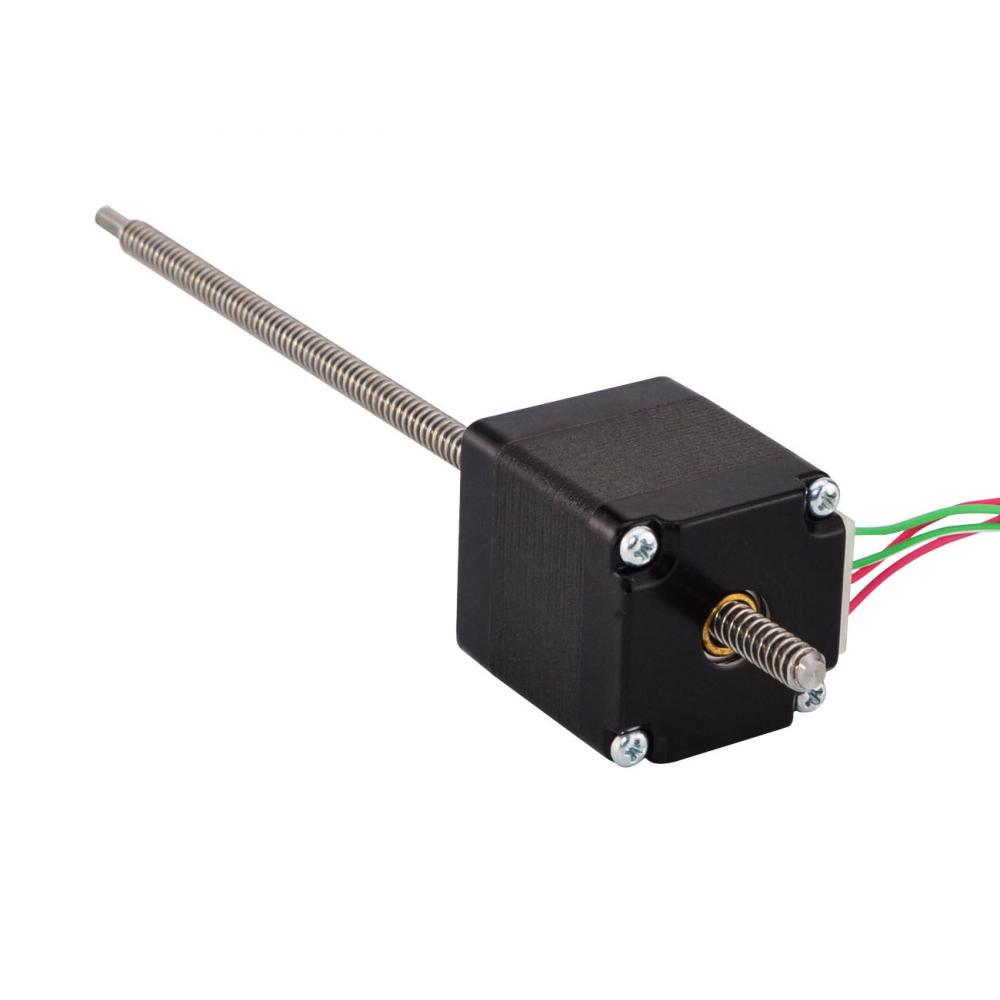

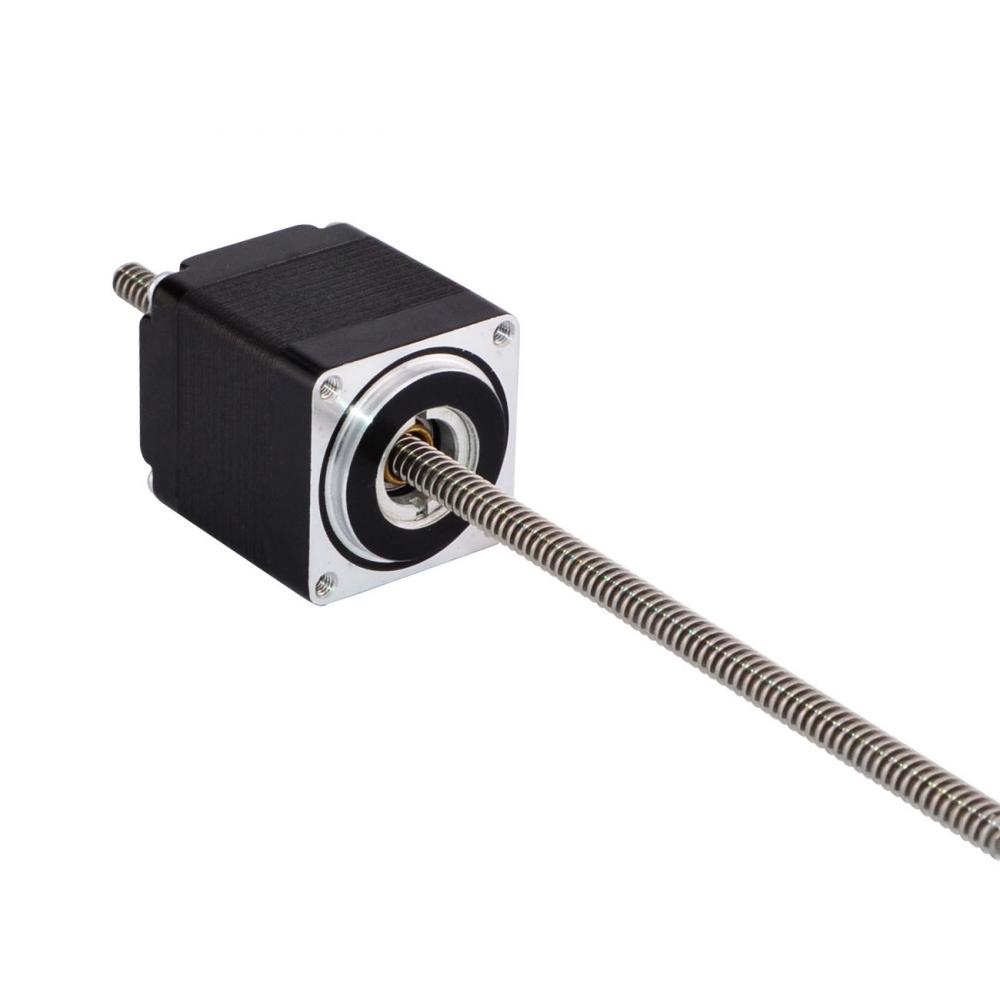

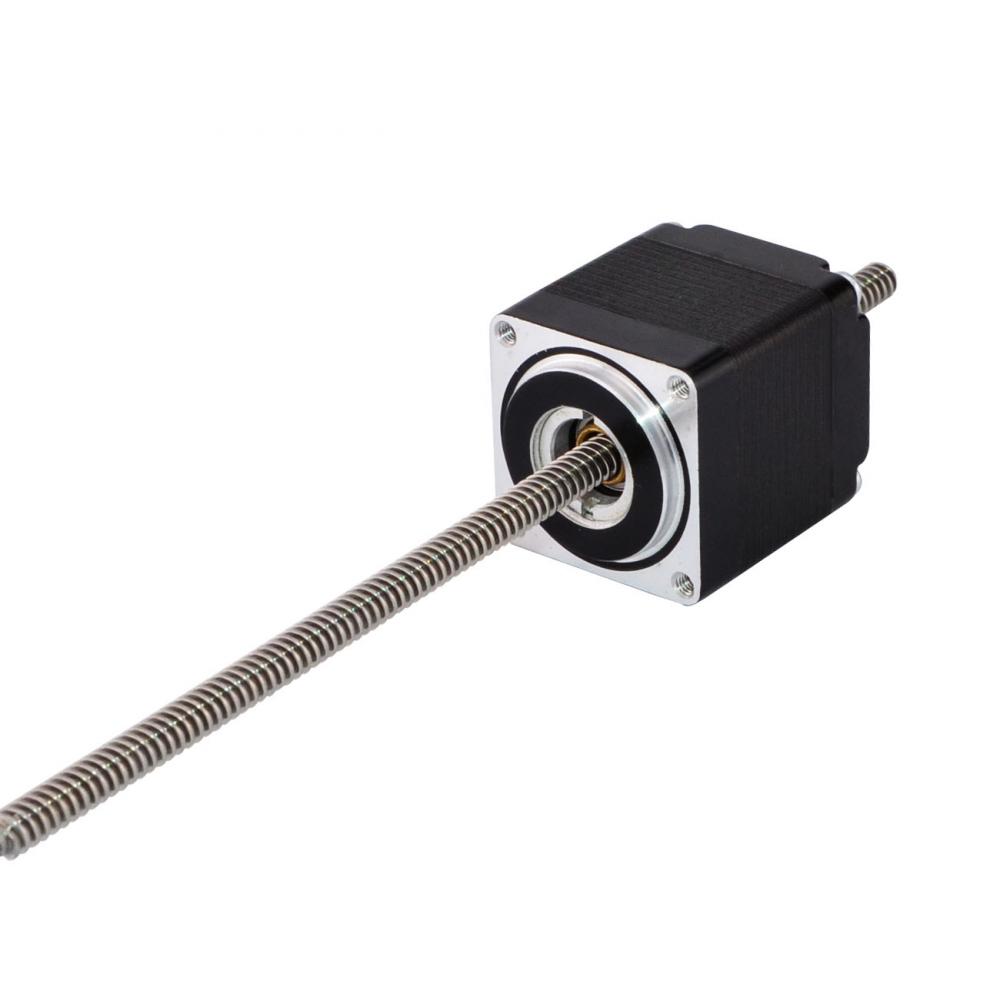

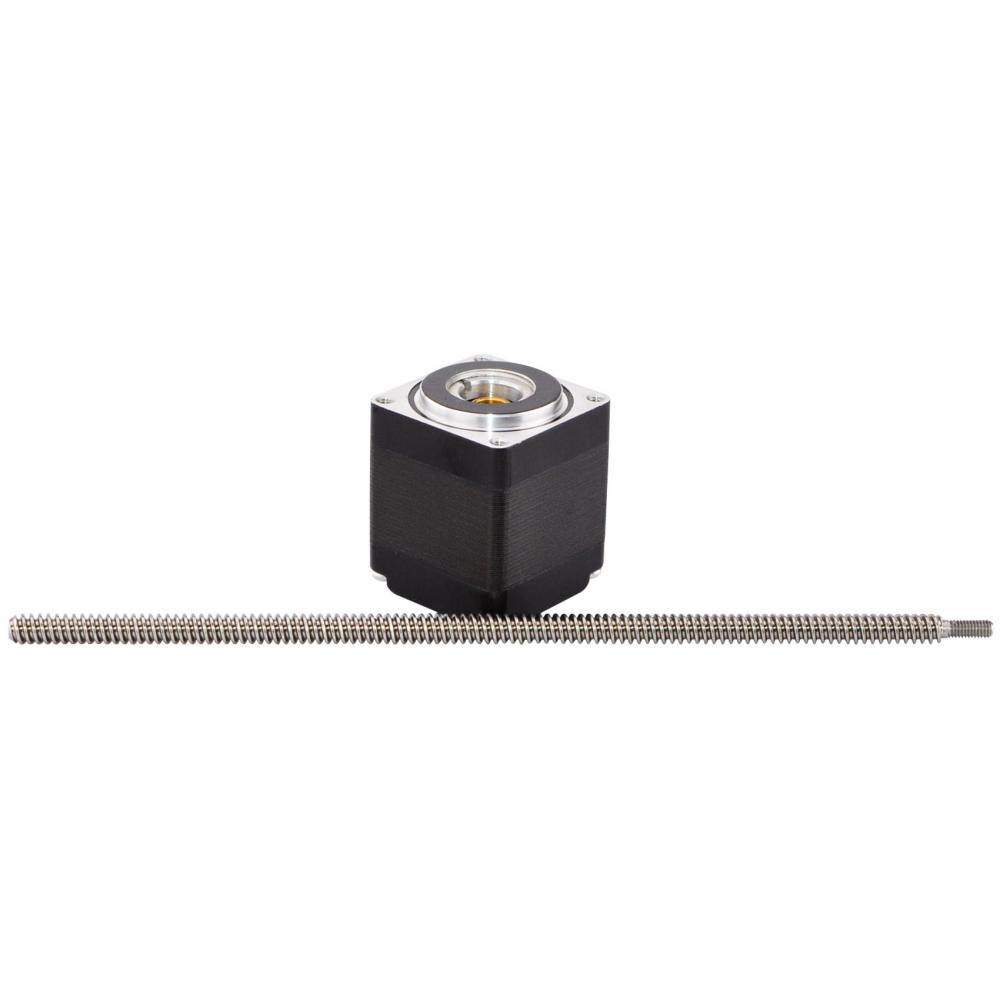

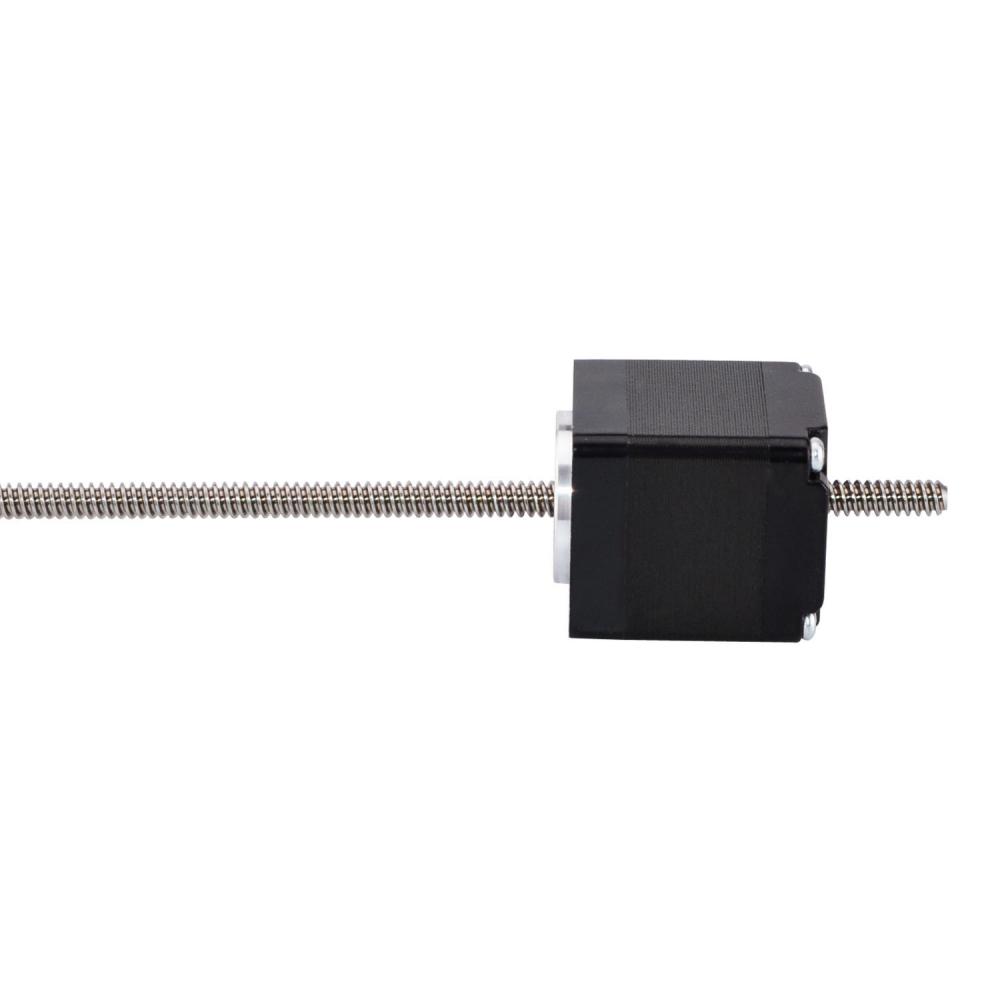

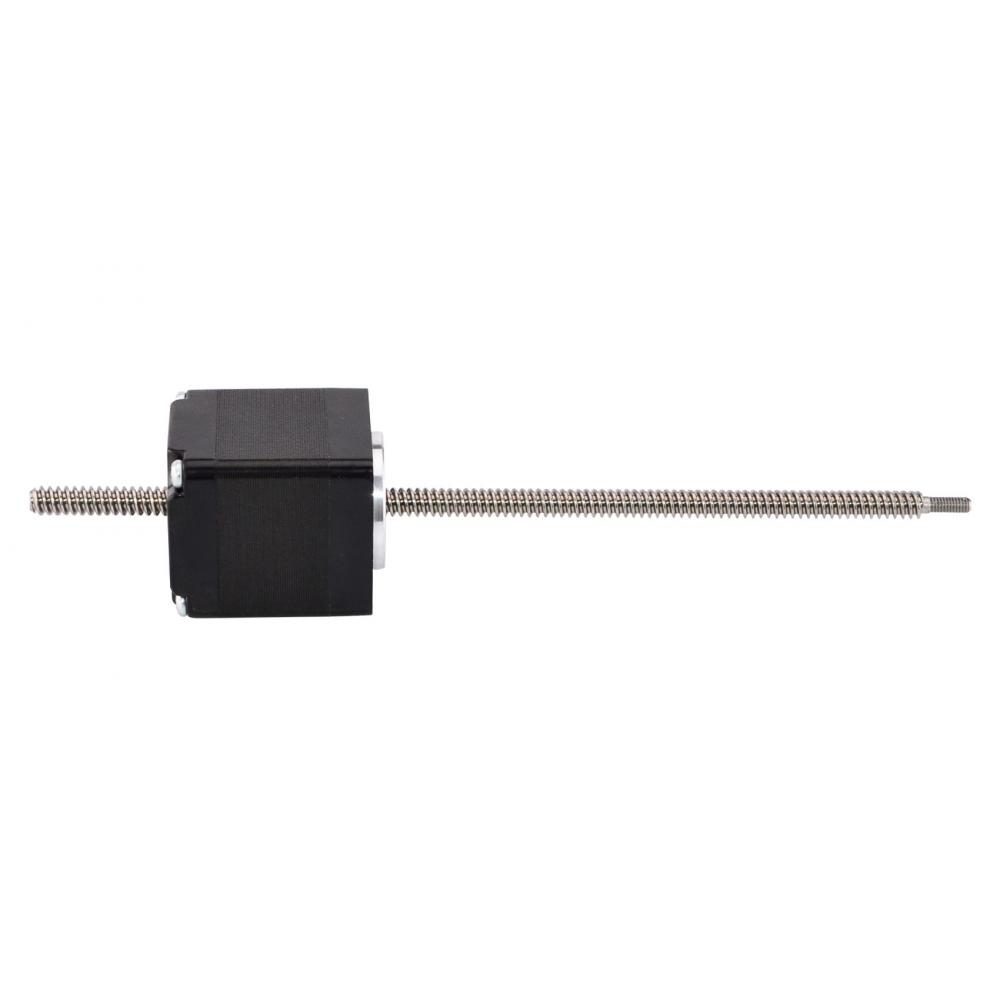

Low Losses,Long Life, Precision Non-captive type, Nema 11 - 28.2x28.2x32.2mm, Lead /Step 0.00635mm, Lead Screw Diameter Φ4.76mm, Lead Screw Length 150mm, Rated current 0.42A, 2 Phase Bipolar
USD 68.97
Availability: 13 Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Inductance(mH) | 6 |
| Phase Resistance(ohm) | 11.4 |
| Rated Current(A) | 0.42 |
| Minimal Thrust(N) | 43 |
| Physical Specification | |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 32.2 |
| Motor Type | Non-Captive |

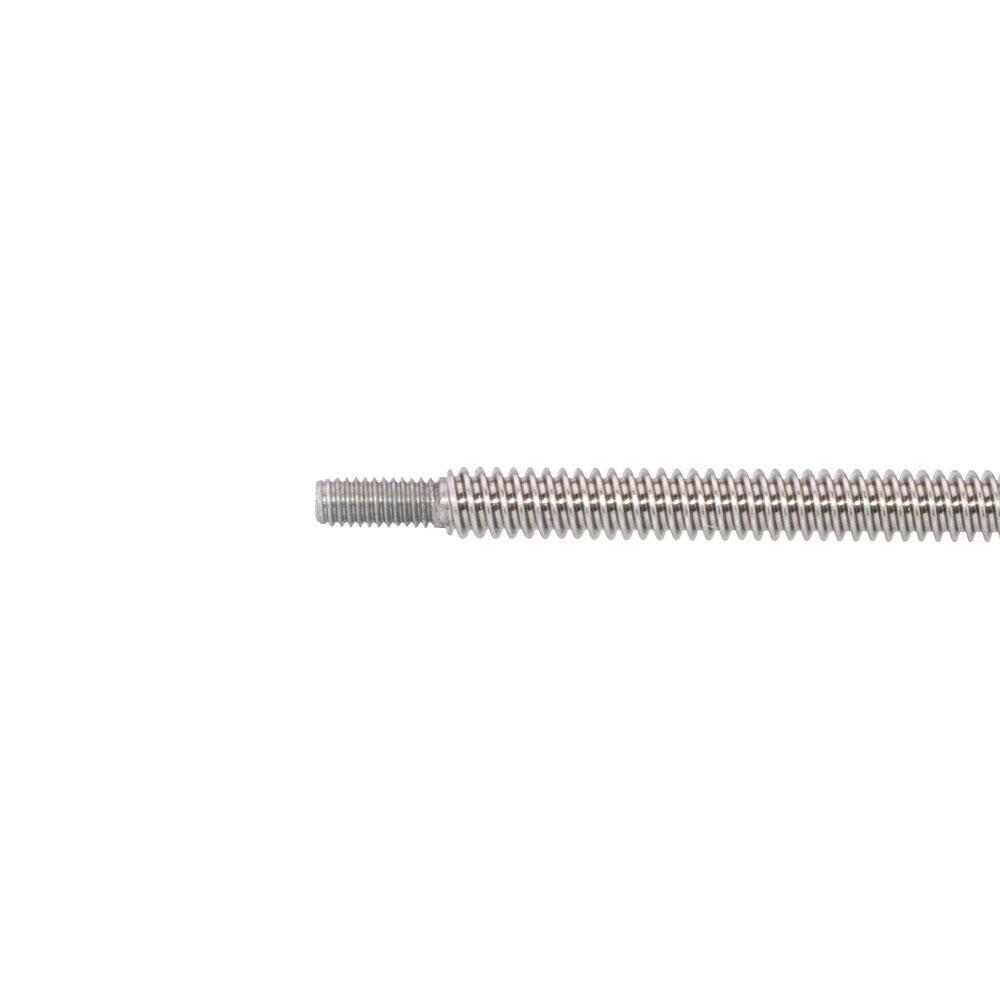

| Lead Screw Diameter(mm) | 4.76 |
| Lead Screw Length(mm) | 150 |
| Lead Travel/Revolution(mm) | 1.27 |
| Lead Travel/Step(mm) | 0.00635 |
