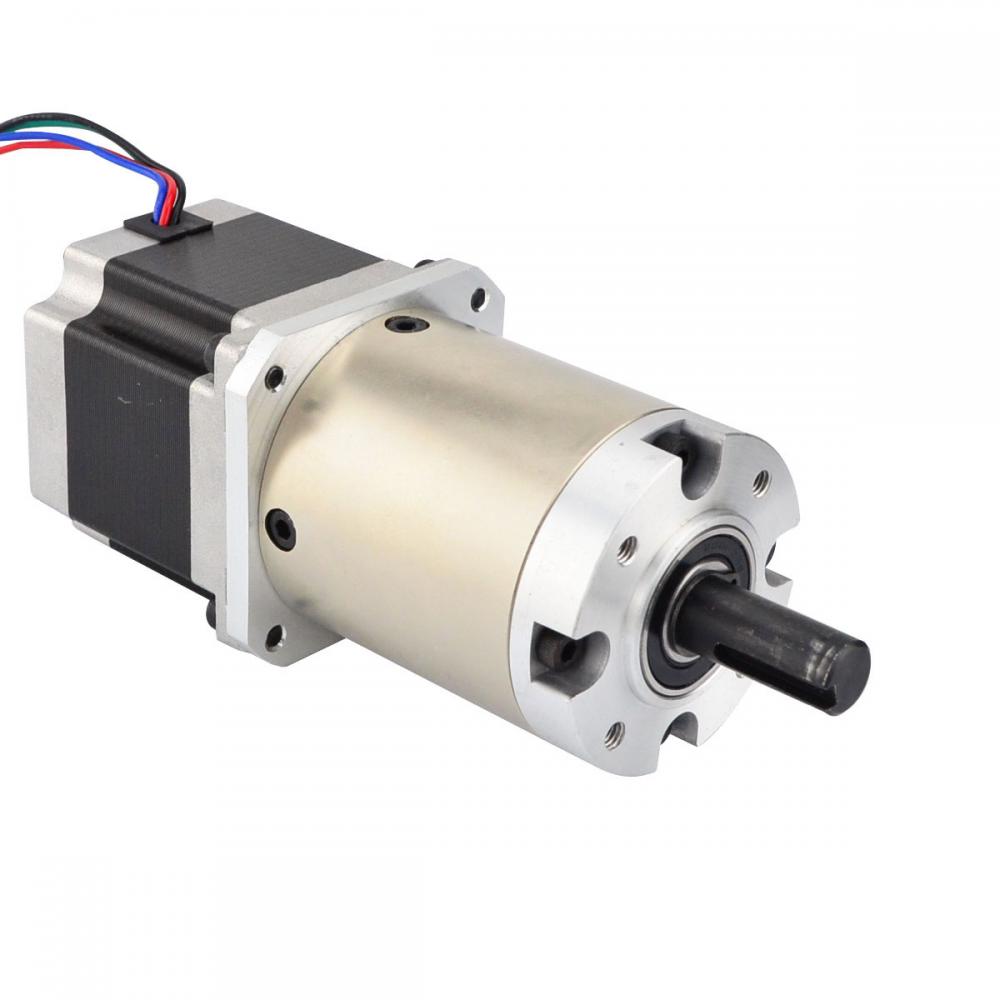

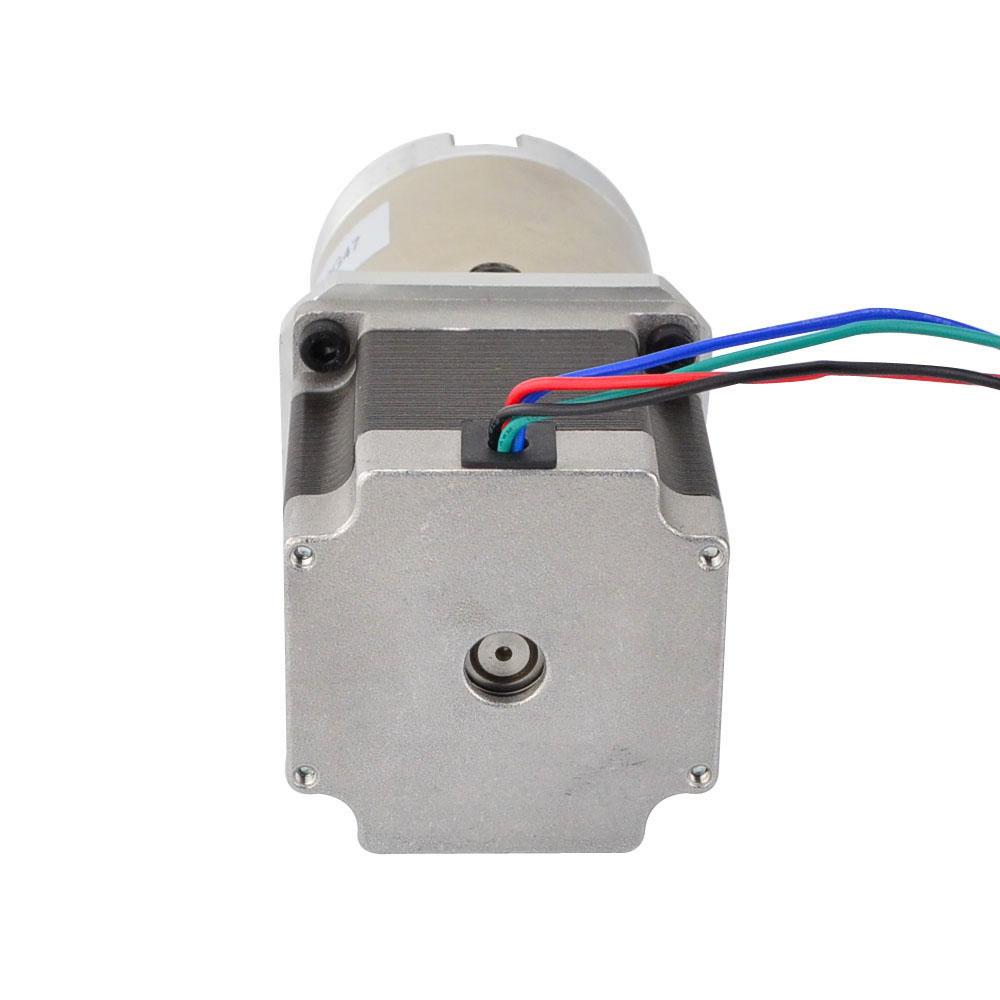

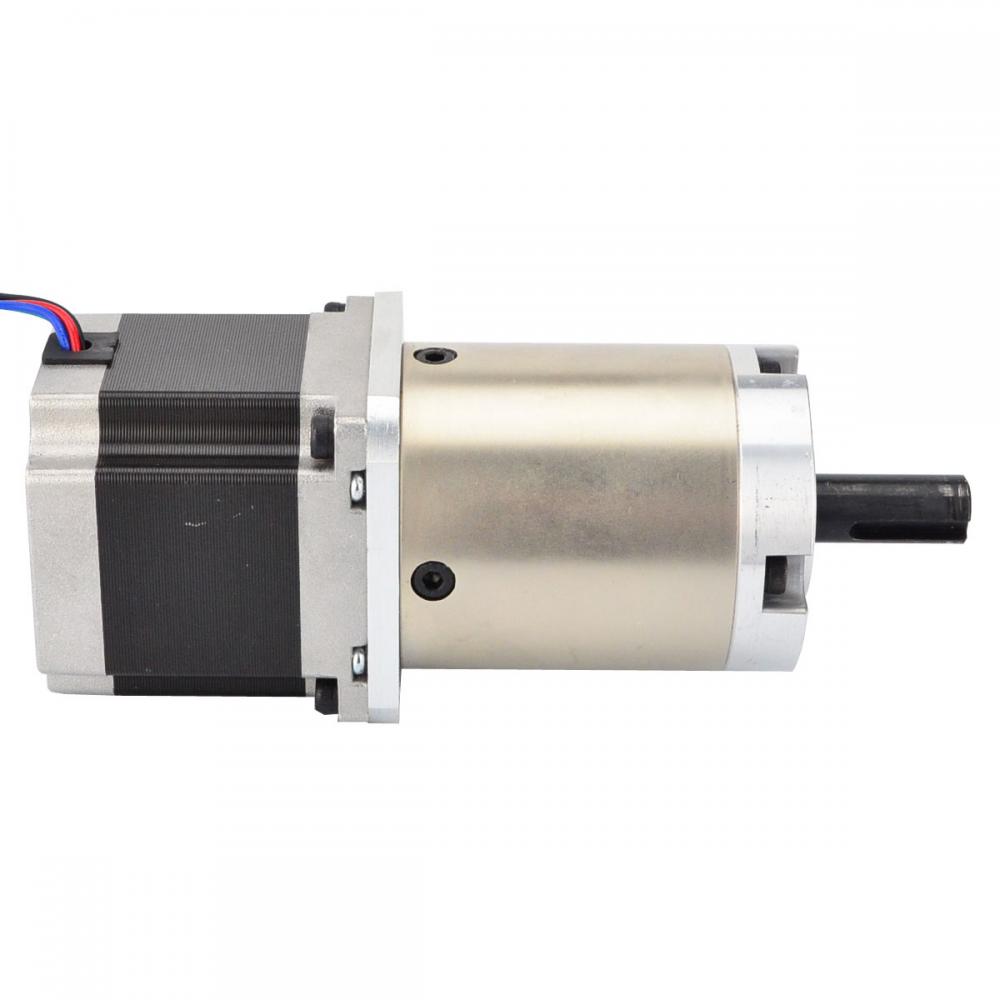

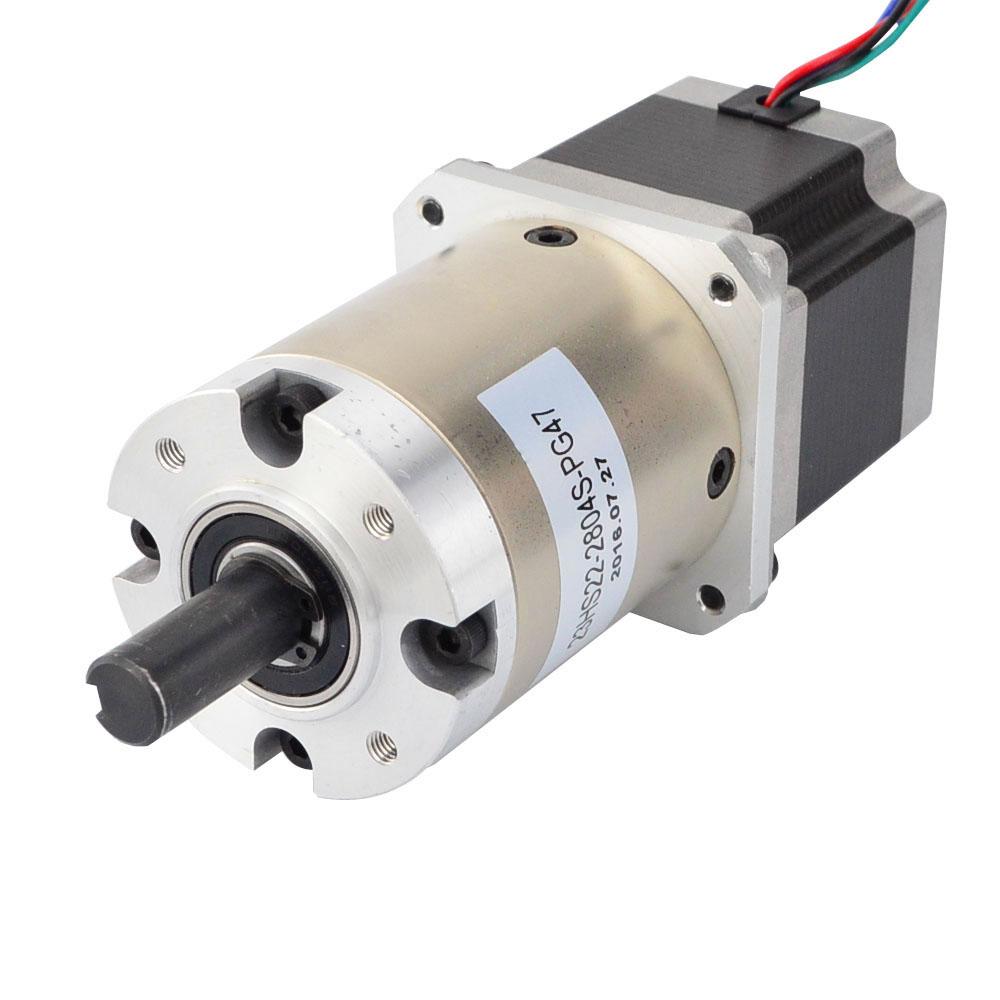

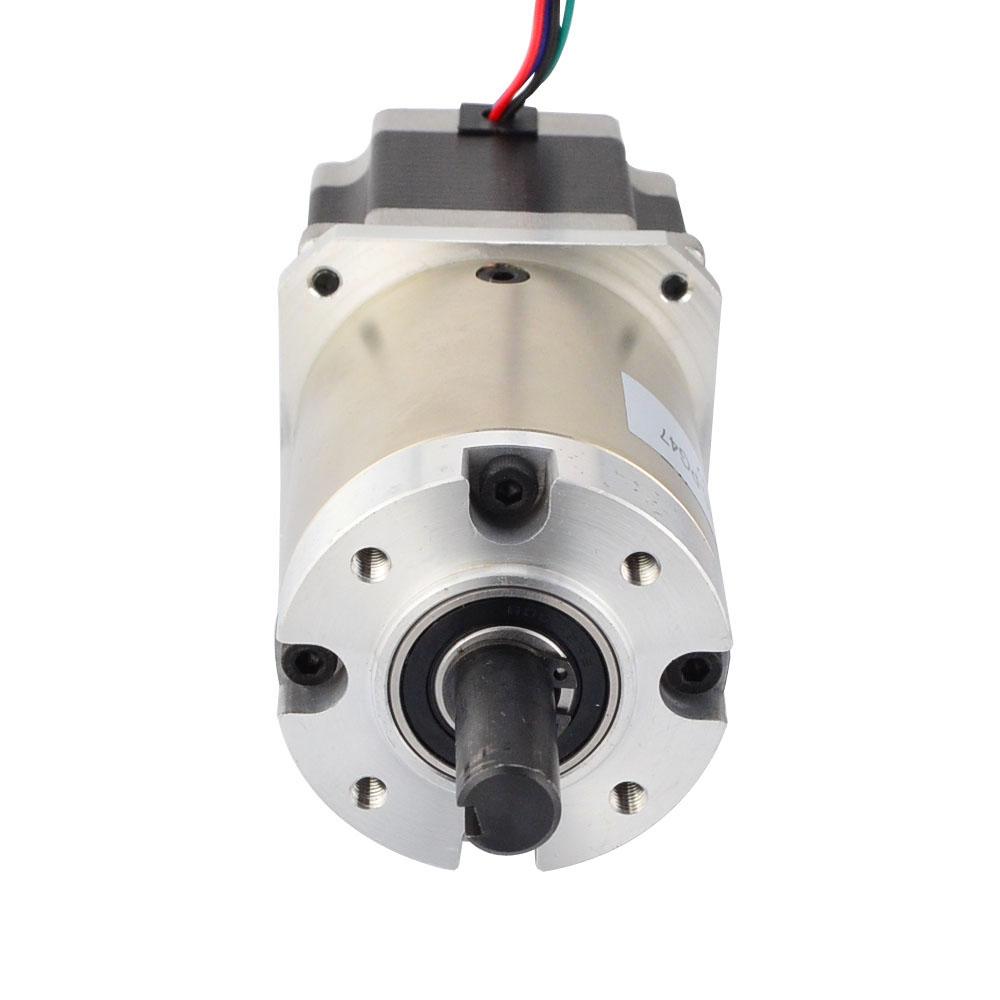

23HS22-2804S-PG47
23HS22-2804S-PG47
23HS22-2804S-PG47
Low Speed,Keyway Shaft,
Torque type planetary gearbox,
Gear ratio 46.66, Efficiency 76%,
Rated current 2.80A, 2 Phase Bipolar,
Nema 23 size, length 56mm(Motor) + 72mm(Gearbox)
USD 80.14
Availability: 183
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Motor Specification | |
| Inductance(mH) | 2.5 |
| Motor Nema Size | Nema 23 |
| Phase Resistance(ohm) | 0.9 |
| Rated Current(A) | 2.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 125 |
| Holding Torque w/o Gearbox(oz.in) | 177 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Shaft Diameter(mm) | 12 |
| Gearbox Specification | |
| Backlash at No-load(Max.°) | 1.5 |
| Efficiency | 73% |
| Gear Ratio | 46.656:1 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 4000 |
| Max. Permissible Torque(oz.in) | 5664.5 |
| Moment Permissible Torque(Ncm) | 6000 |
| Moment Permissible Torque(oz.in) | 8496.7 |
| Shaft Maximum Axial Load(N) | 100 |
| Shaft Maximum Radial Load(N) | 200 |
| Physical Specification | |
| Gearbox Length(mm) | 72 |
| Weight(g) | 1600 |
| Motor Length(mm) | 56 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | Key-Way |
| Shaft Length(mm) | 30 |
