CART 8LS11-0244AC-150E
8LS11-0244AC-150E
8LS11-0244AC-150E

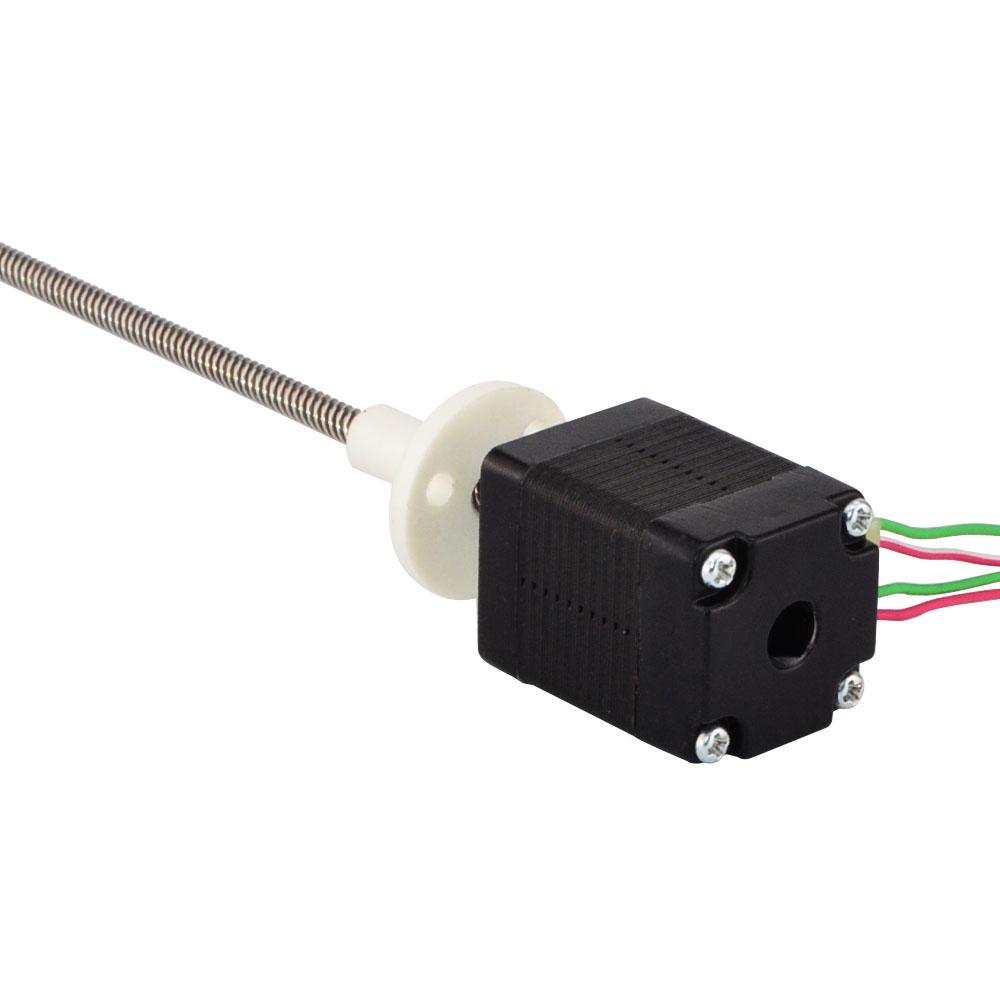

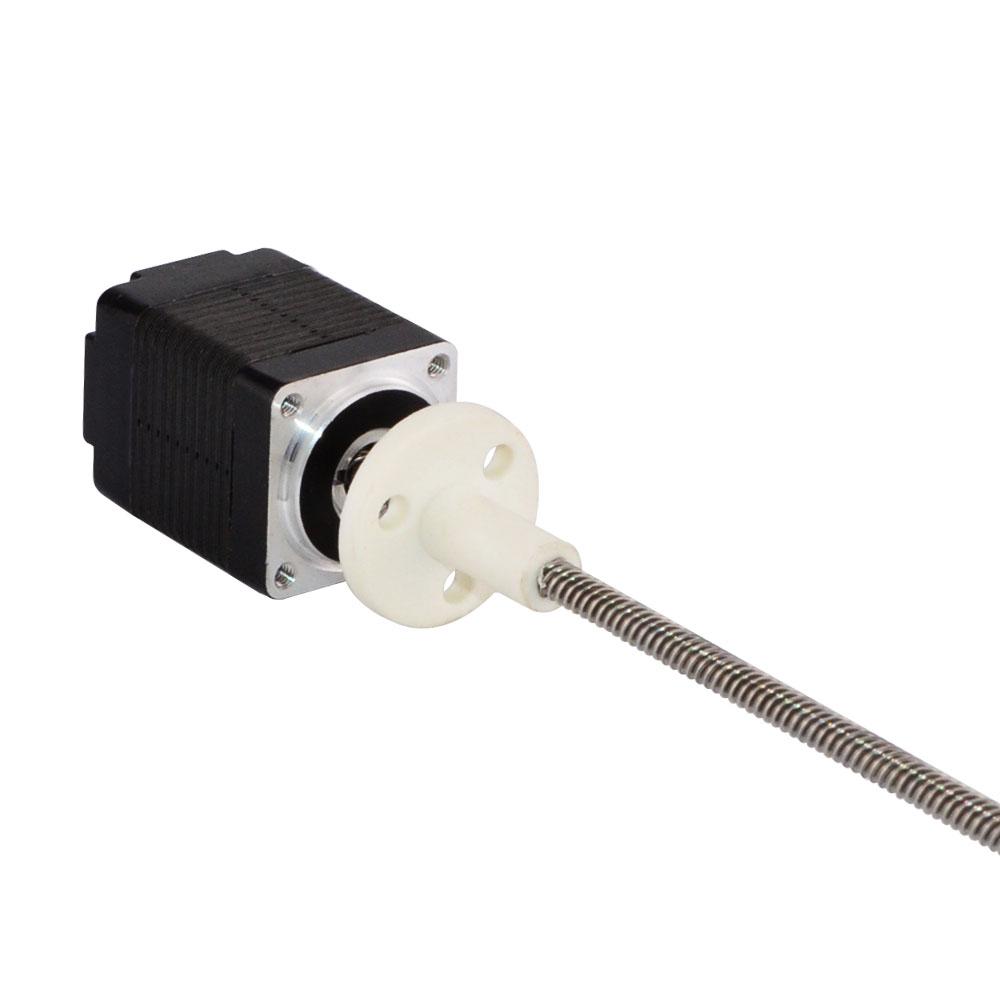

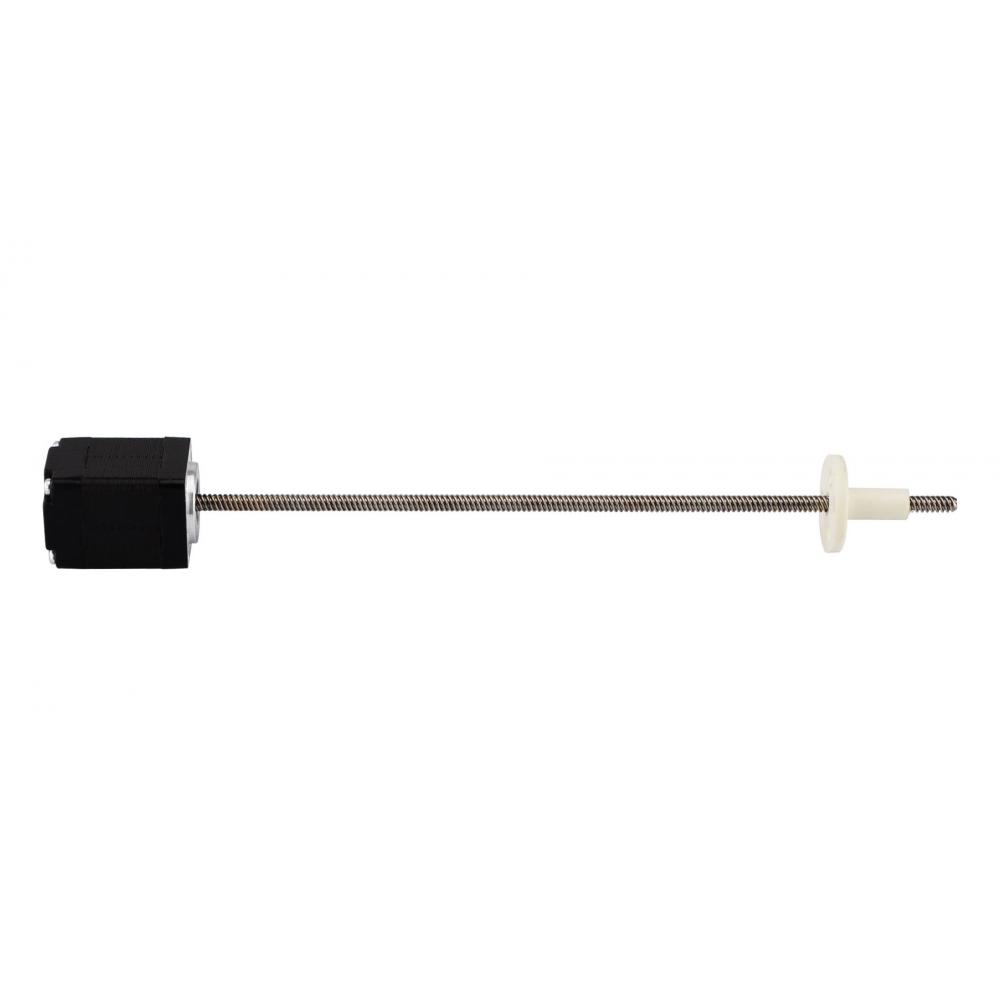

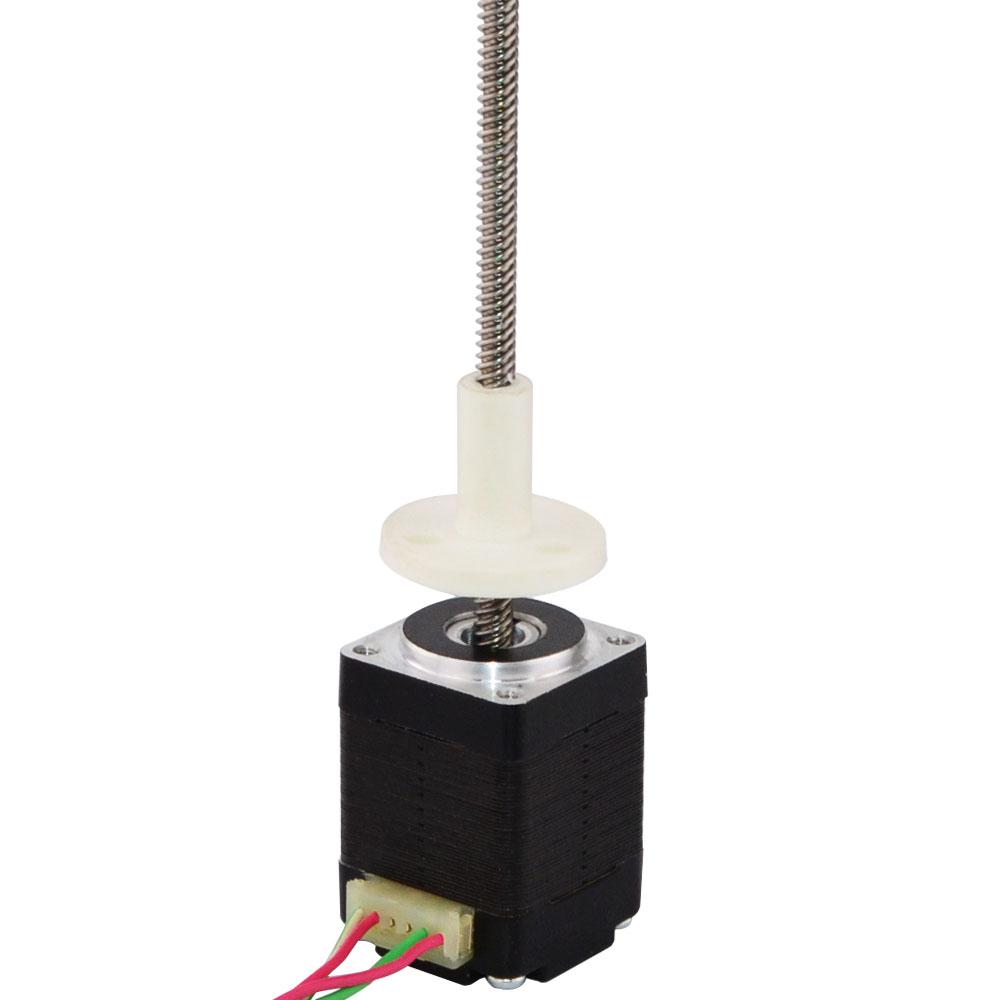

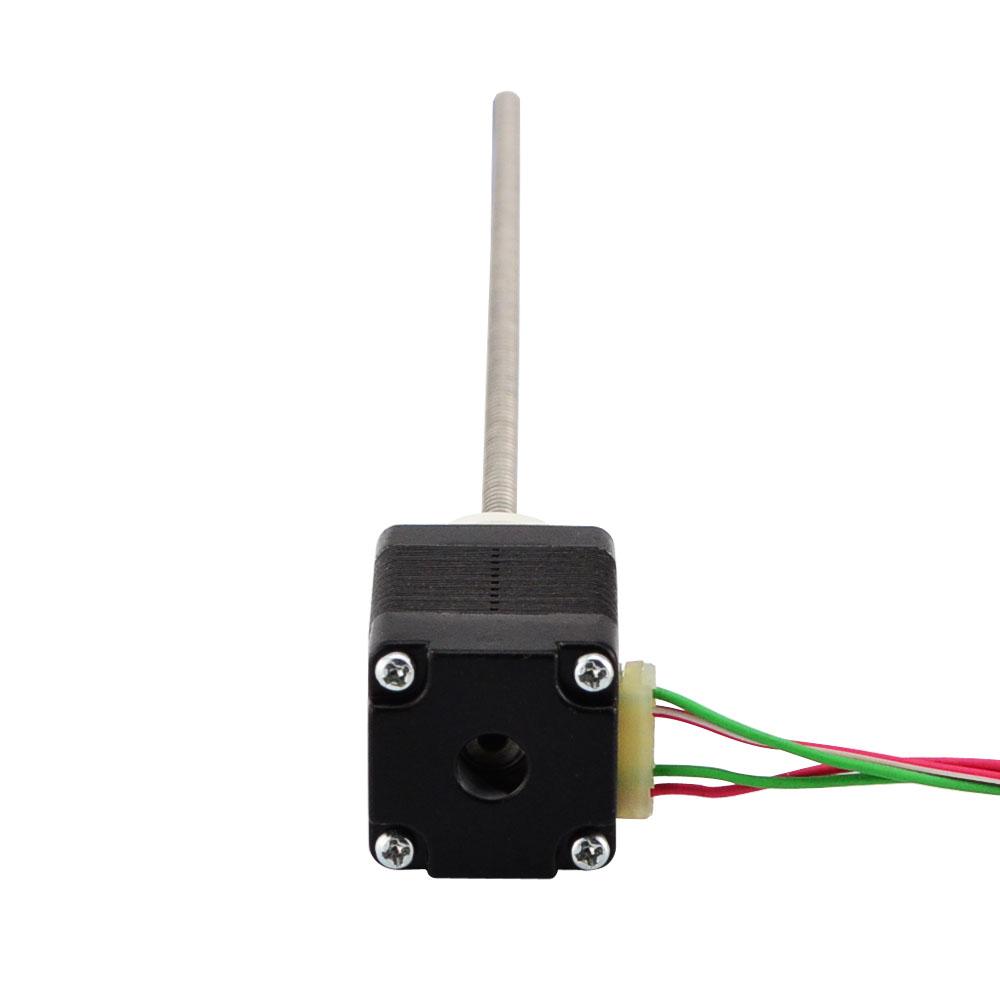

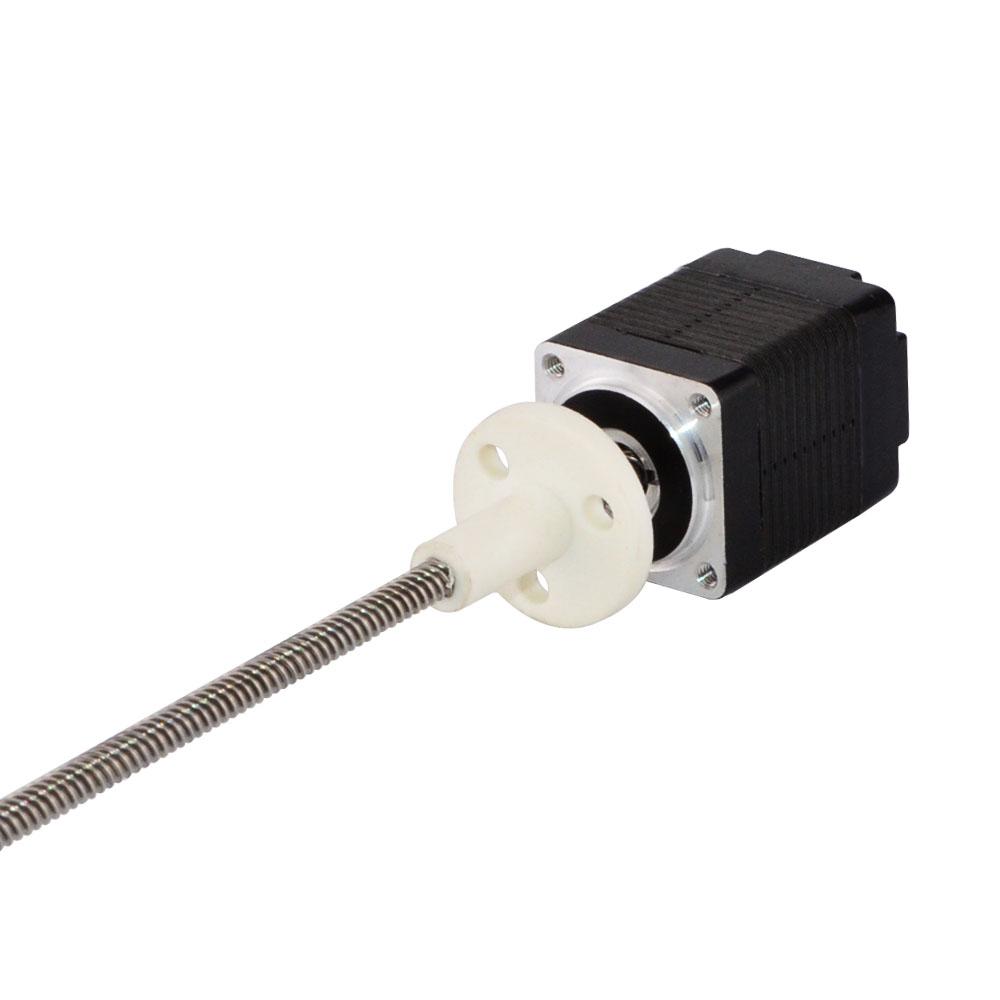

Small Size,Long Life, Precision external type, Nema 8 - 20x20x30mm, Lead /Step 0.01mm, Lead Screw Diameter Φ3.5mm, Lead Screw Length 150mm, Rated current 0.24A, 2 Phase Bipolar
USD 99.06
Availability: 100 Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Inductance(mH) | 3.83 |
| Phase Resistance(ohm) | 21.3 |
| Rated Current(A) | 0.24 |
| Minimal Thrust(N) | 33 |
| Physical Specification | |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | 20x20 |
| Body Length(mm) | 30 |
| Motor Type | External |

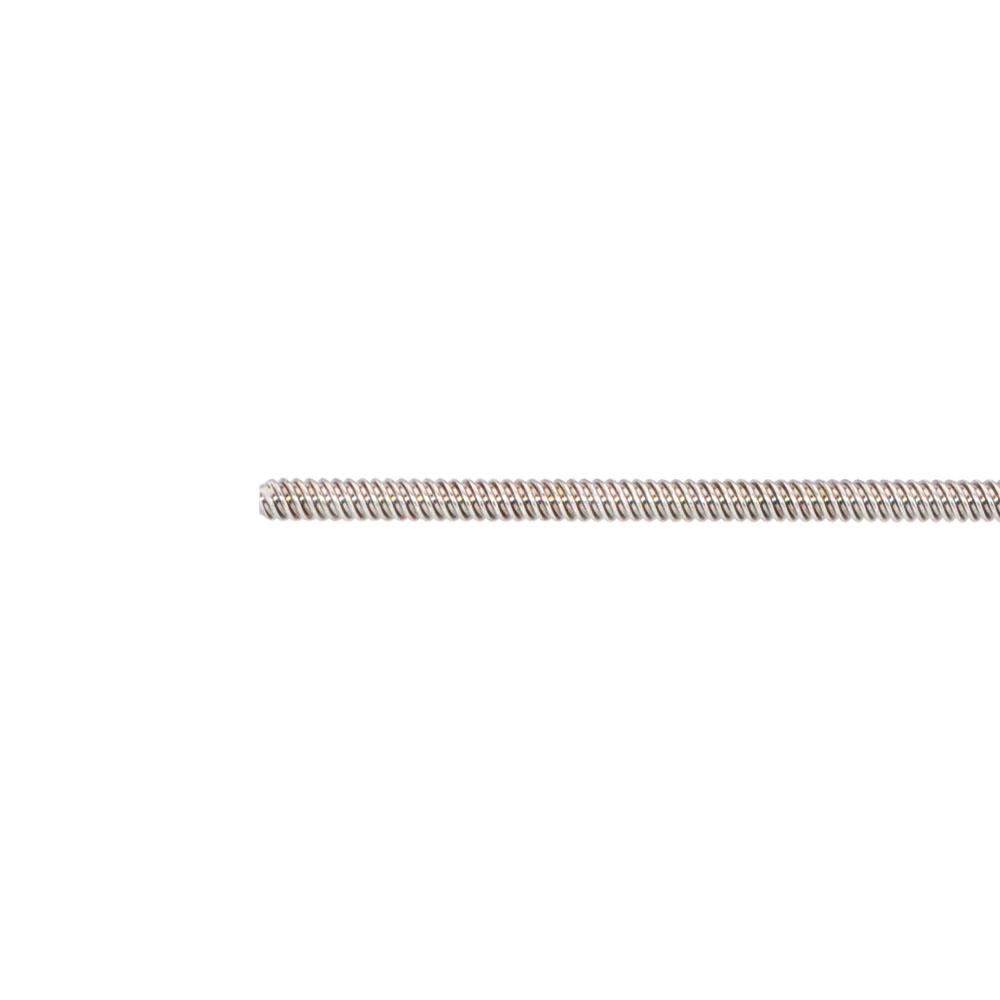

| Lead Screw Diameter(mm) | 3.5 |
| Lead Screw Length(mm) | 150 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
