CART 23LS26-25043-250N
23LS26-25043-250N
23LS26-25043-250N

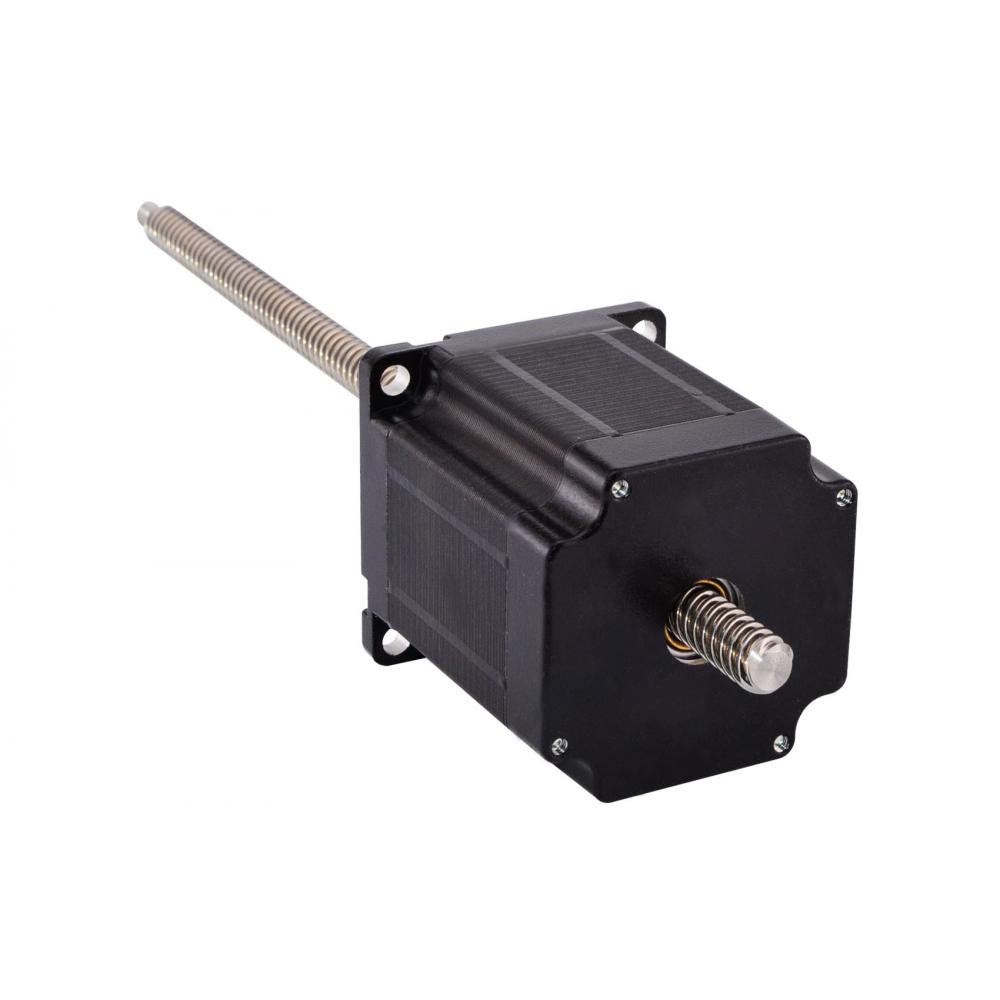

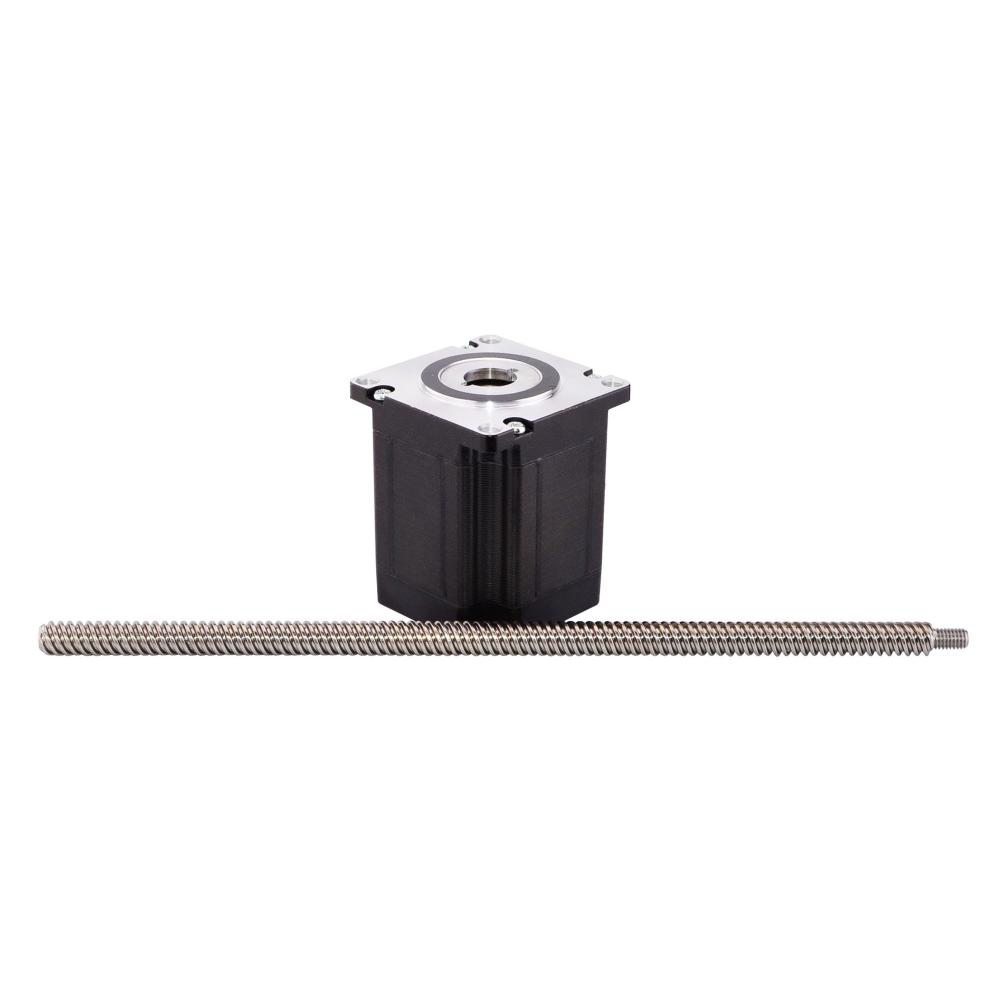

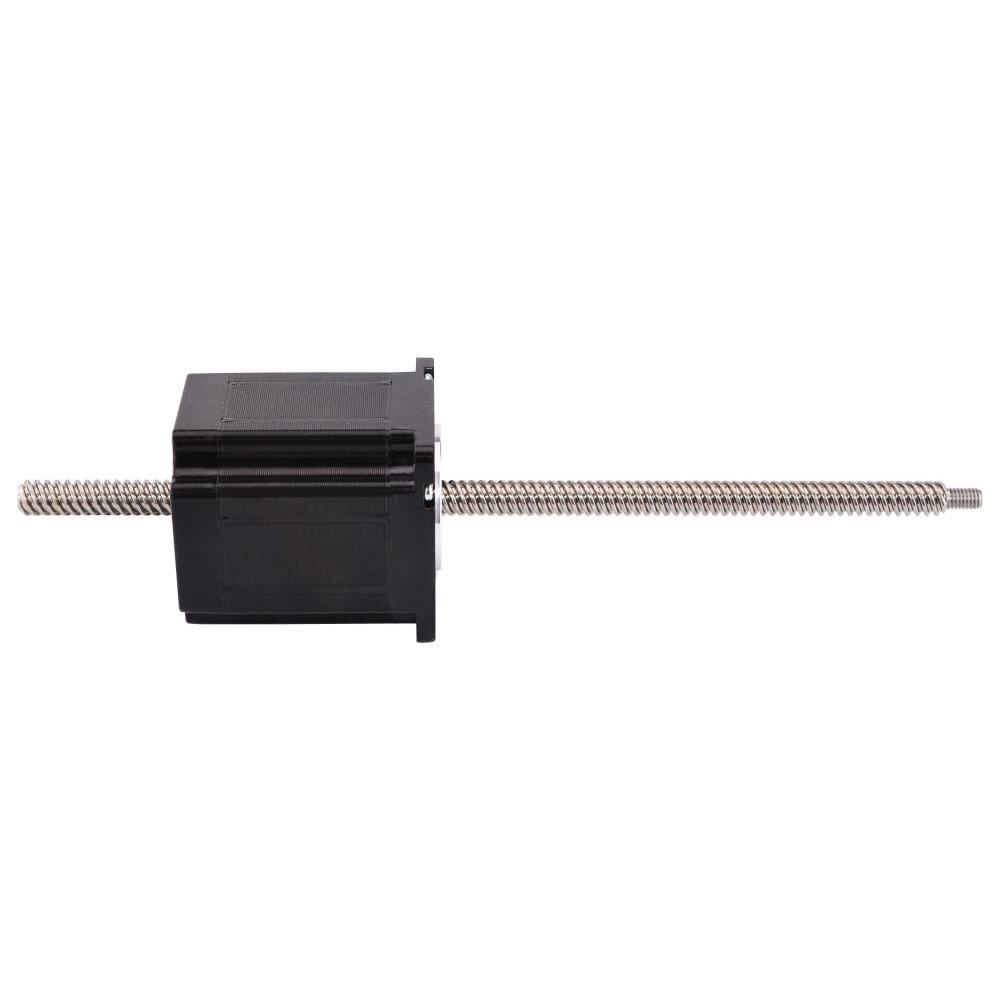

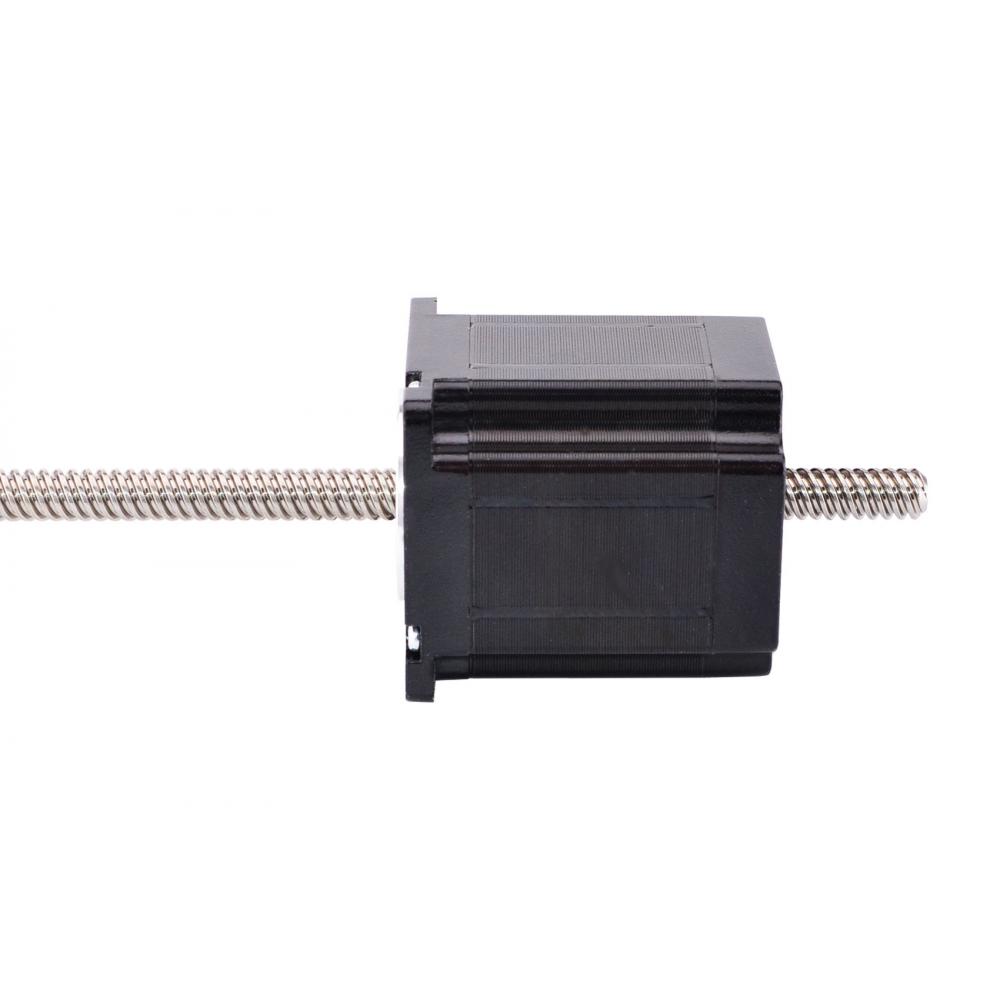

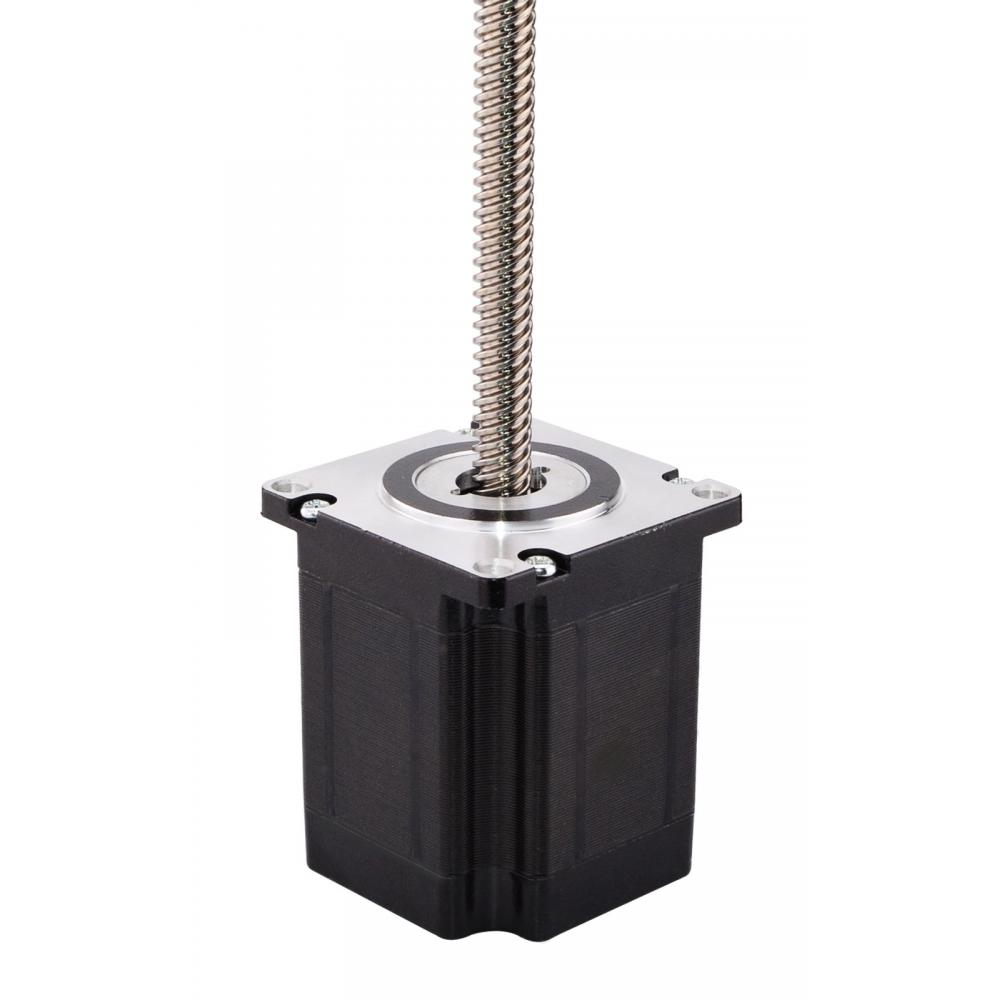

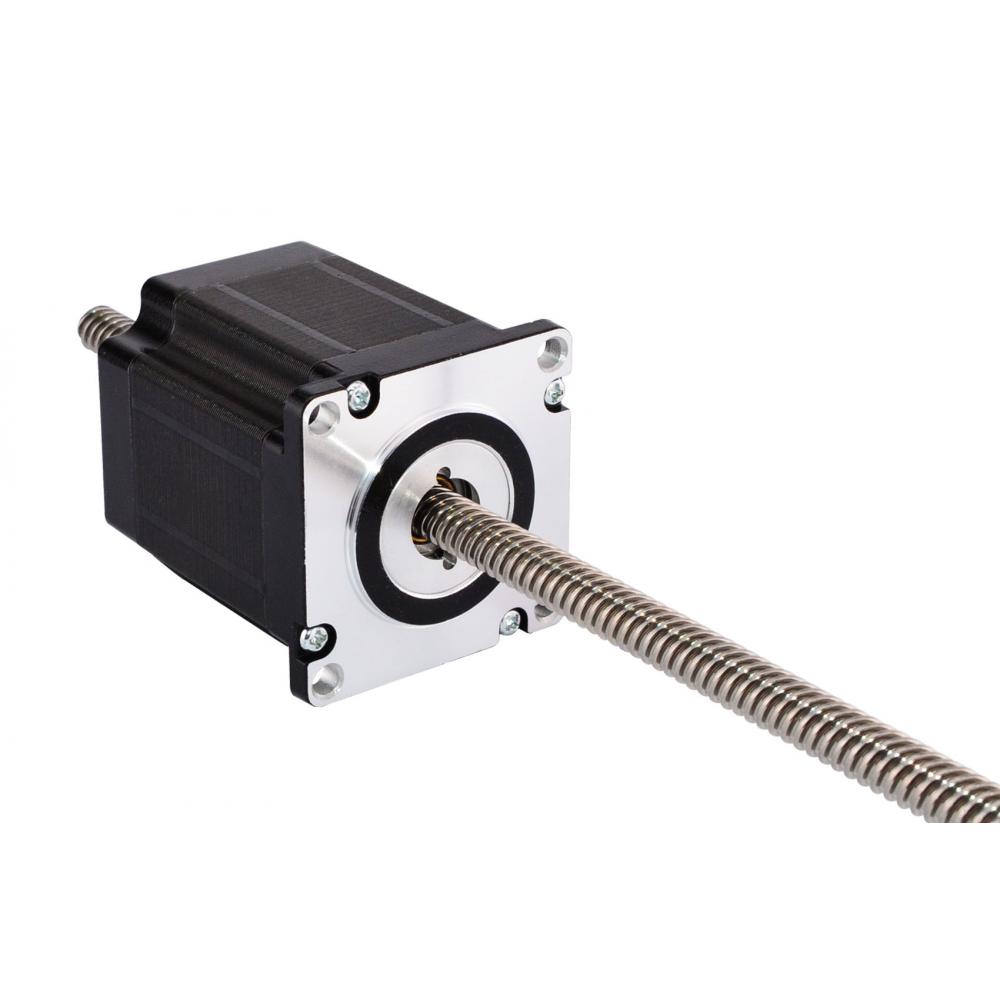

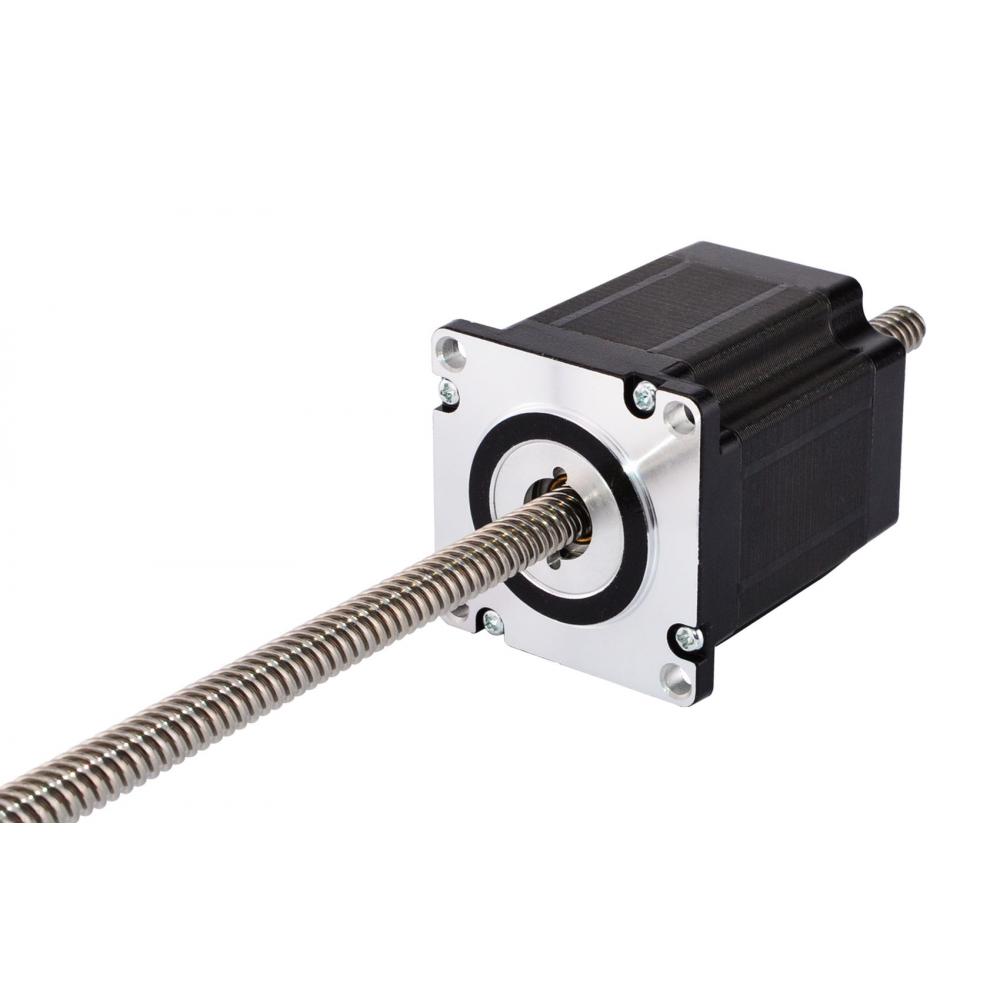

Low Losses,High Efficiency, Precision Non-captive type, Nema 23 - 56.4x56.4x66mm, Lead /Step 0.0127mm, Lead Screw Diameter Φ9.53mm, Lead Screw Length 250mm, Rated current 2.50A, 2 Phase Bipolar
USD 139.19
Availability: 14 Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Inductance(mH) | 8.2 |
| Phase Resistance(ohm) | 2.1 |
| Rated Current(A) | 2.5 |
| Minimal Thrust(N) | 540 |
| Physical Specification | |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 66 |
| Motor Type | Non-Captive |

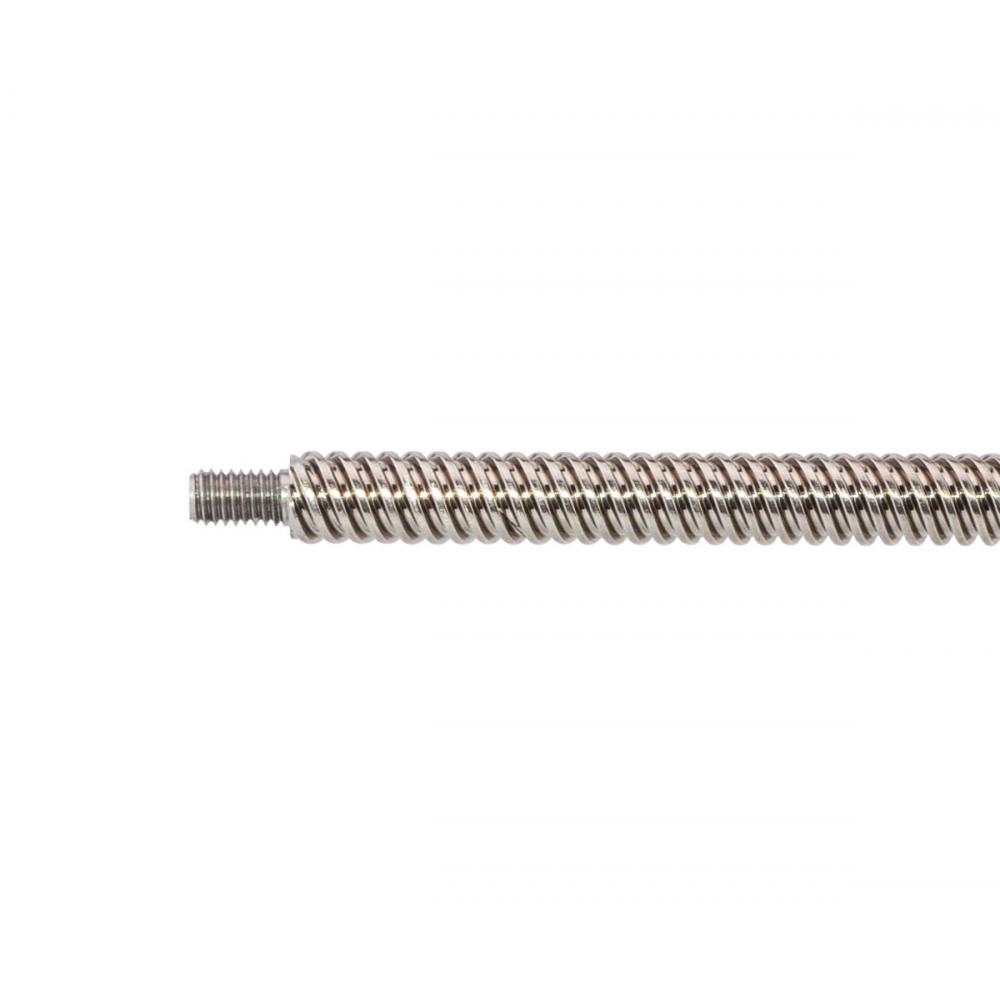

| Lead Screw Diameter(mm) | 9.53 |
| Lead Screw Length(mm) | 250 |
| Lead Travel/Revolution(mm) | 2.54 |
| Lead Travel/Step(mm) | 0.0127 |
