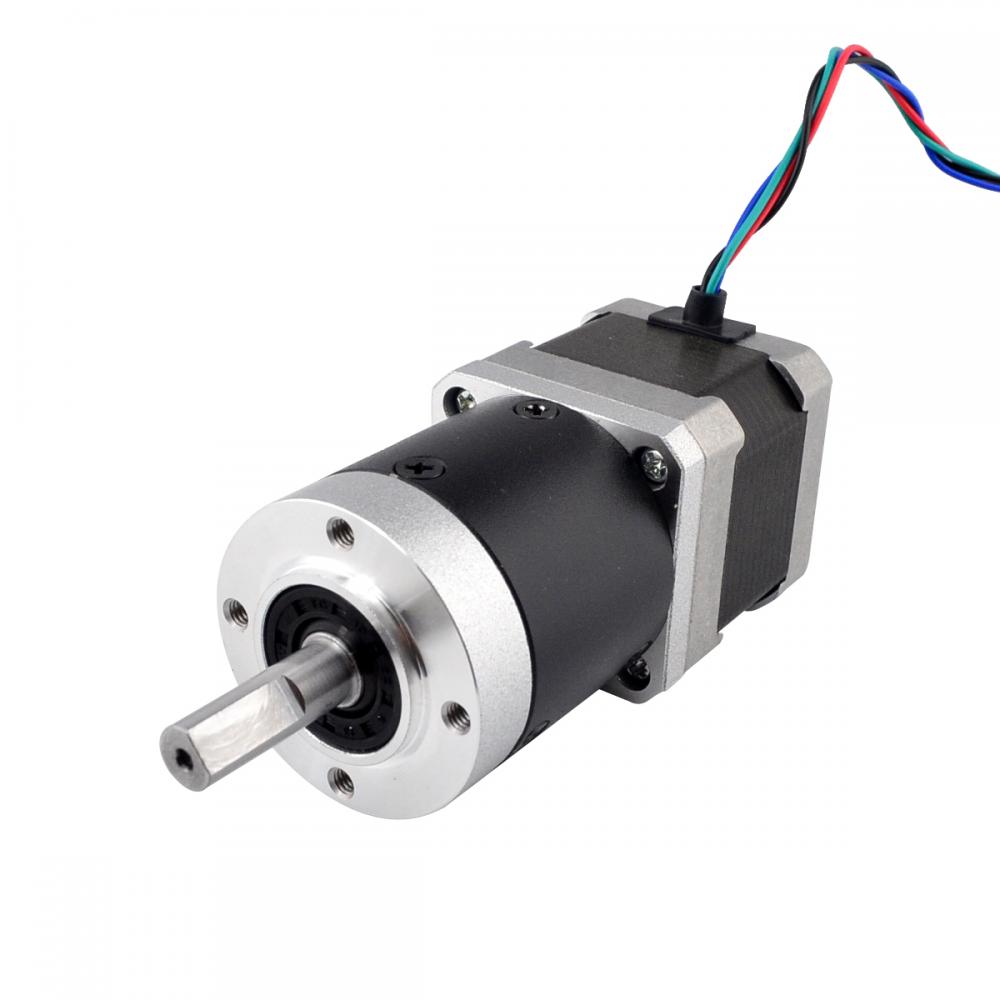

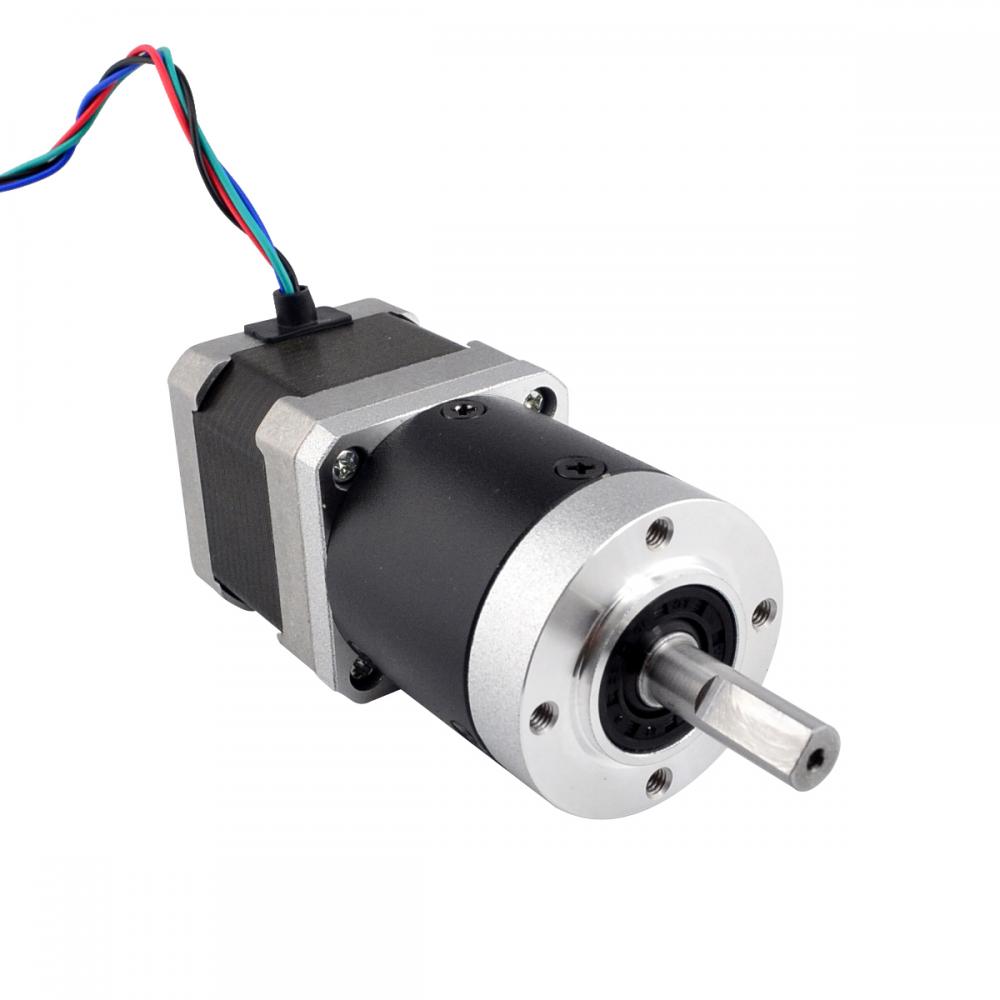

17HS15-0404S-HG20
17HS15-0404S-HG20
17HS15-0404S-HG20
Long Life,D-cut Shaft,
Precision type planetary gearbox,
Gear ratio 20, Efficiency 90%,
Rated current 0.4A, 2 Phase Bipolar,
Nema 17 size, length 39mm(Motor) + 48.3mm(Gearbox)
USD 78.17
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Motor Specification | |
| Inductance(mH) | 58 |
| Motor Nema Size | Nema 17 |
| Phase Resistance(ohm) | 30 |
| Rated Current(A) | 0.4 |
| Holding Torque w/o Gearbox(Ncm) | 40 |
| Holding Torque w/o Gearbox(oz.in) | 56.6 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 8 |
| Gearbox Specification | |
| Backlash at No-load(Max.°) | 0.25 |
| Efficiency | 90% |
| Gear Ratio | 20:1 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 1500 |
| Max. Permissible Torque(oz.in) | 2124.6 |
| Moment Permissible Torque(Ncm) | 2500 |
| Moment Permissible Torque(oz.in) | 3541 |
| Shaft Maximum Radial Load(N) | 150 |
| Physical Specification | |
| Gearbox Length(mm) | 48.3 |
| Lead Length(mm) | 320 |
| Weight(g) | 880 |
| Motor Length(mm) | 39 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Length(mm) | 25 |
