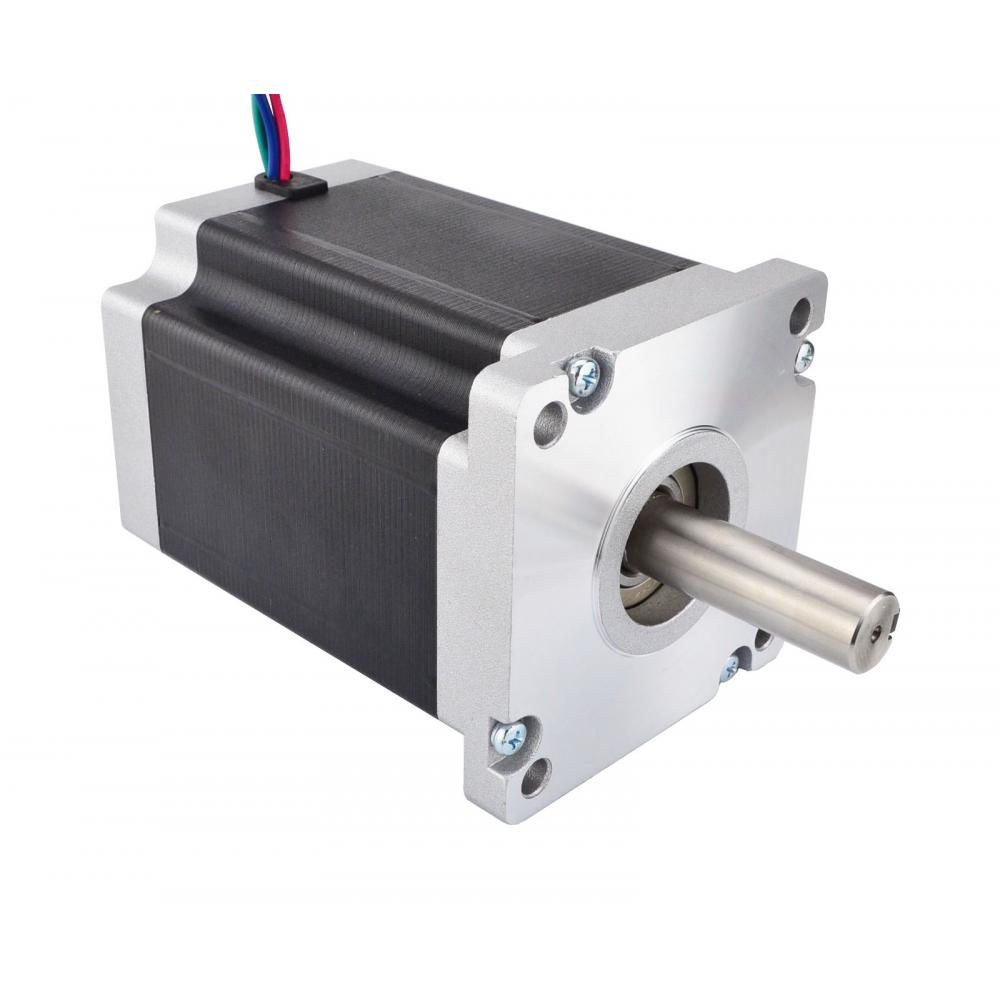

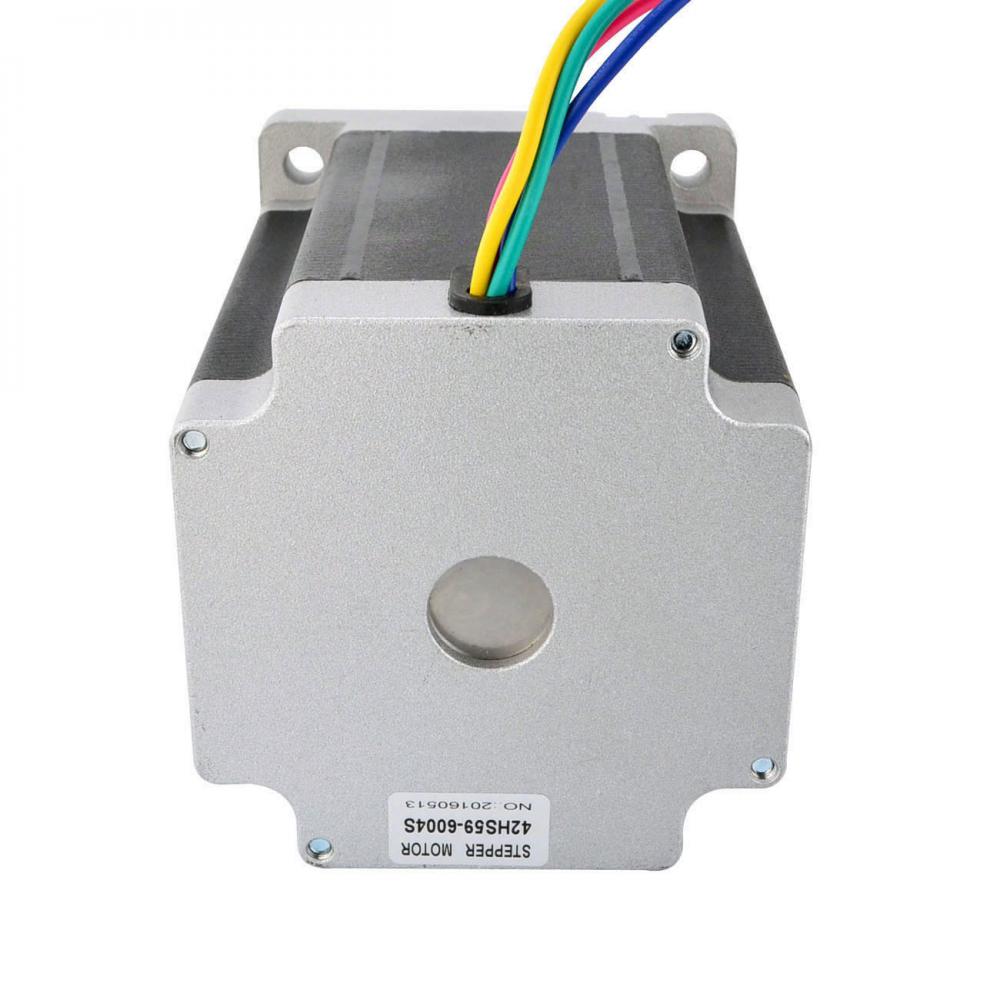

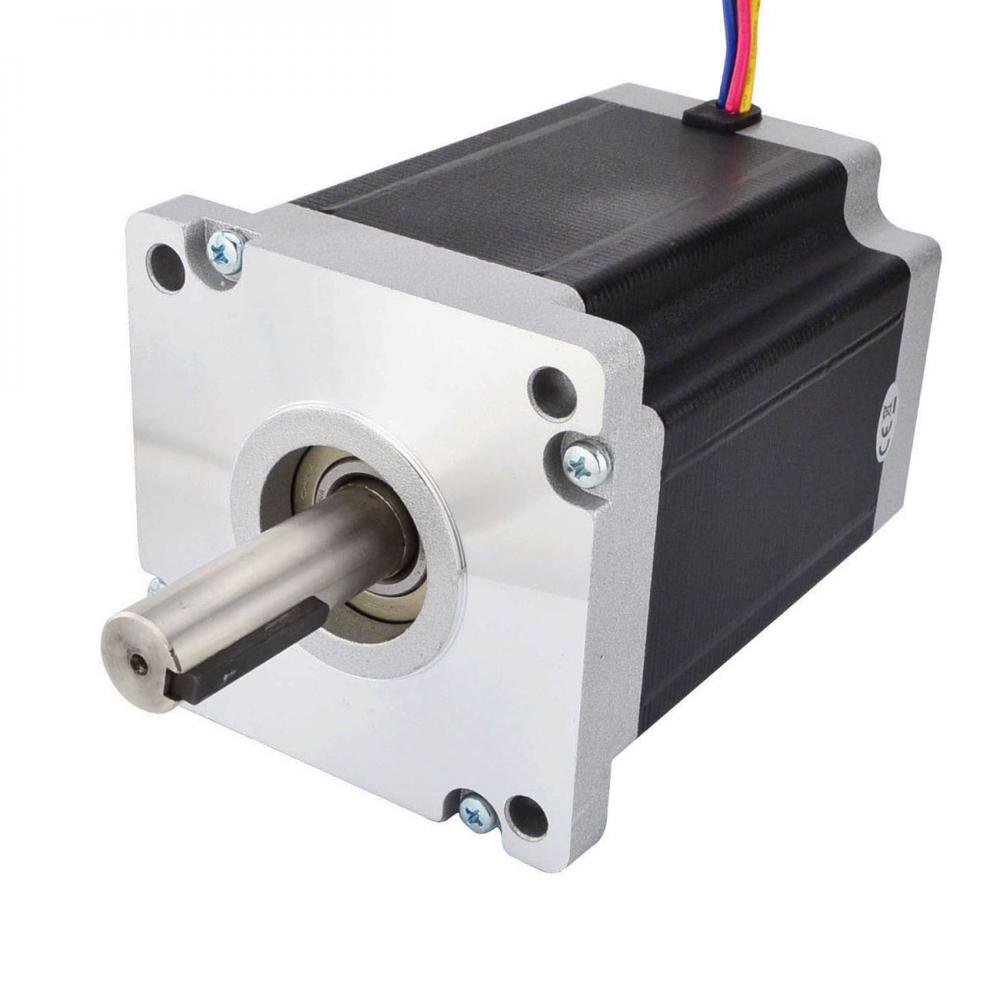

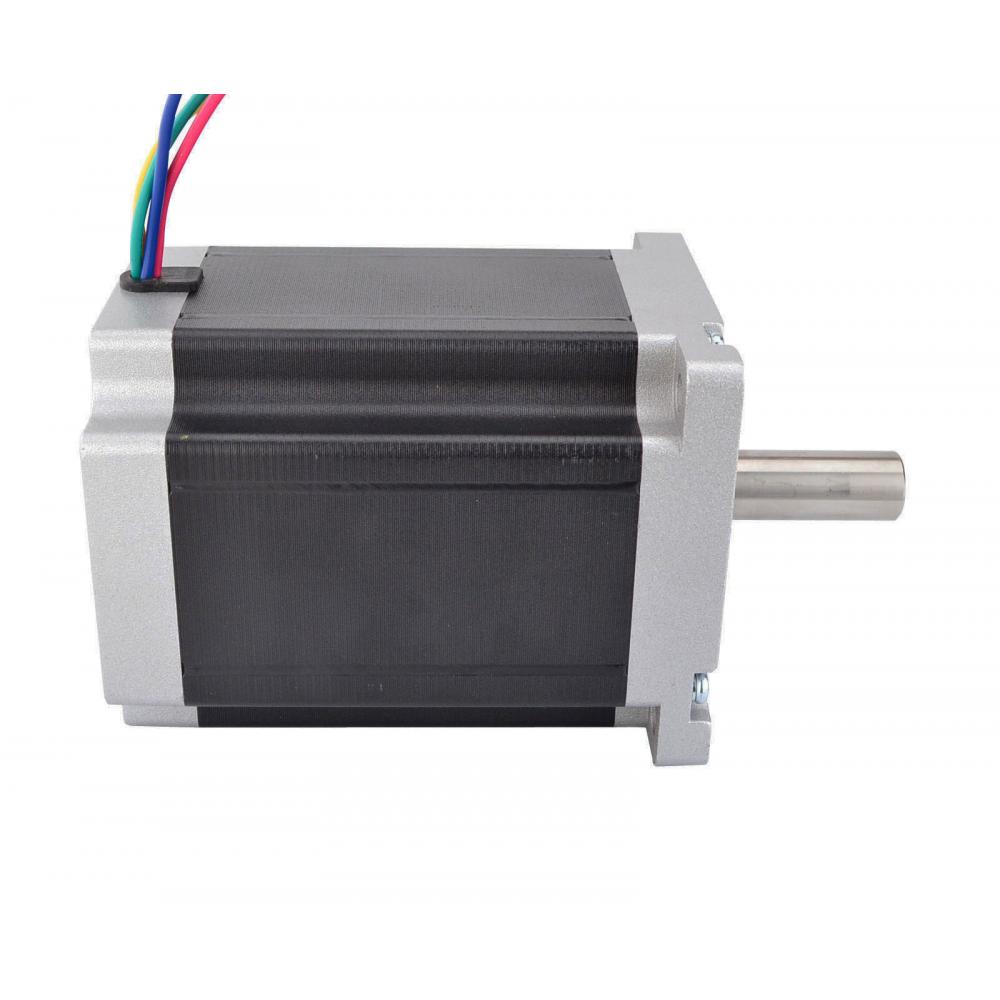

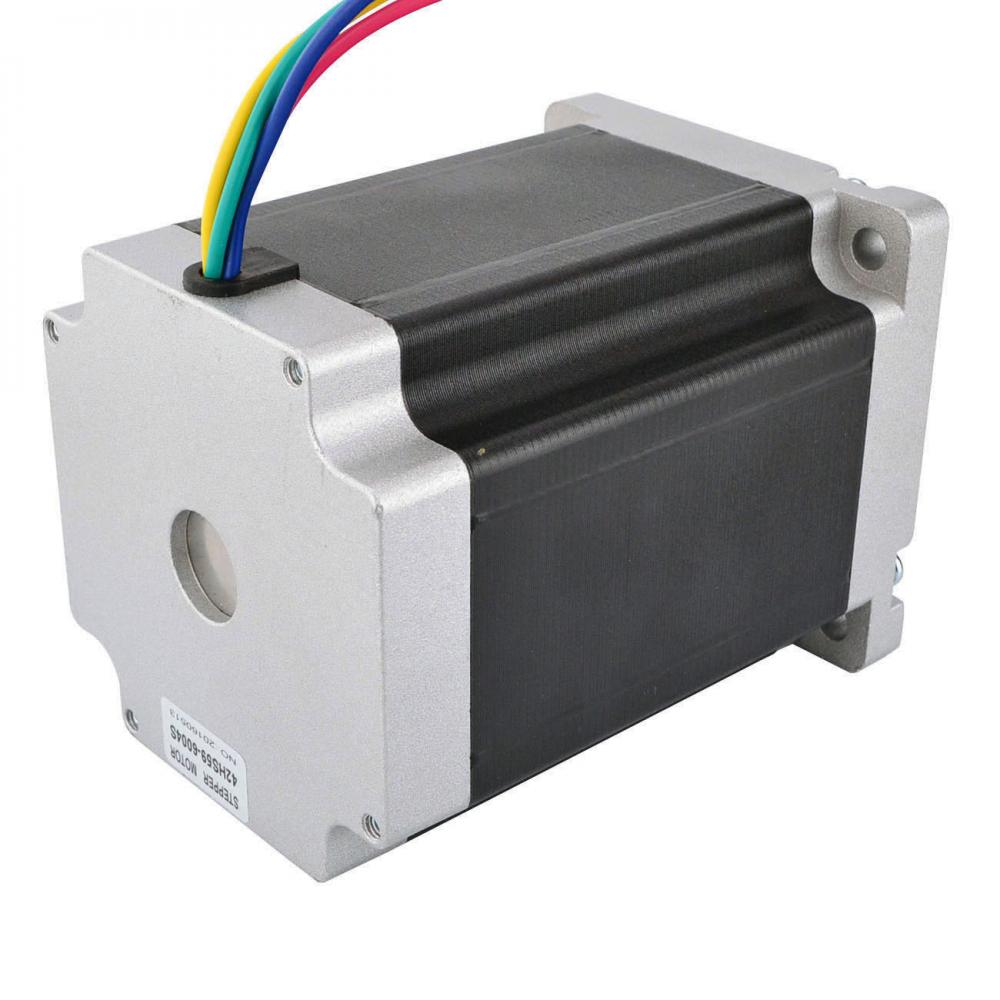

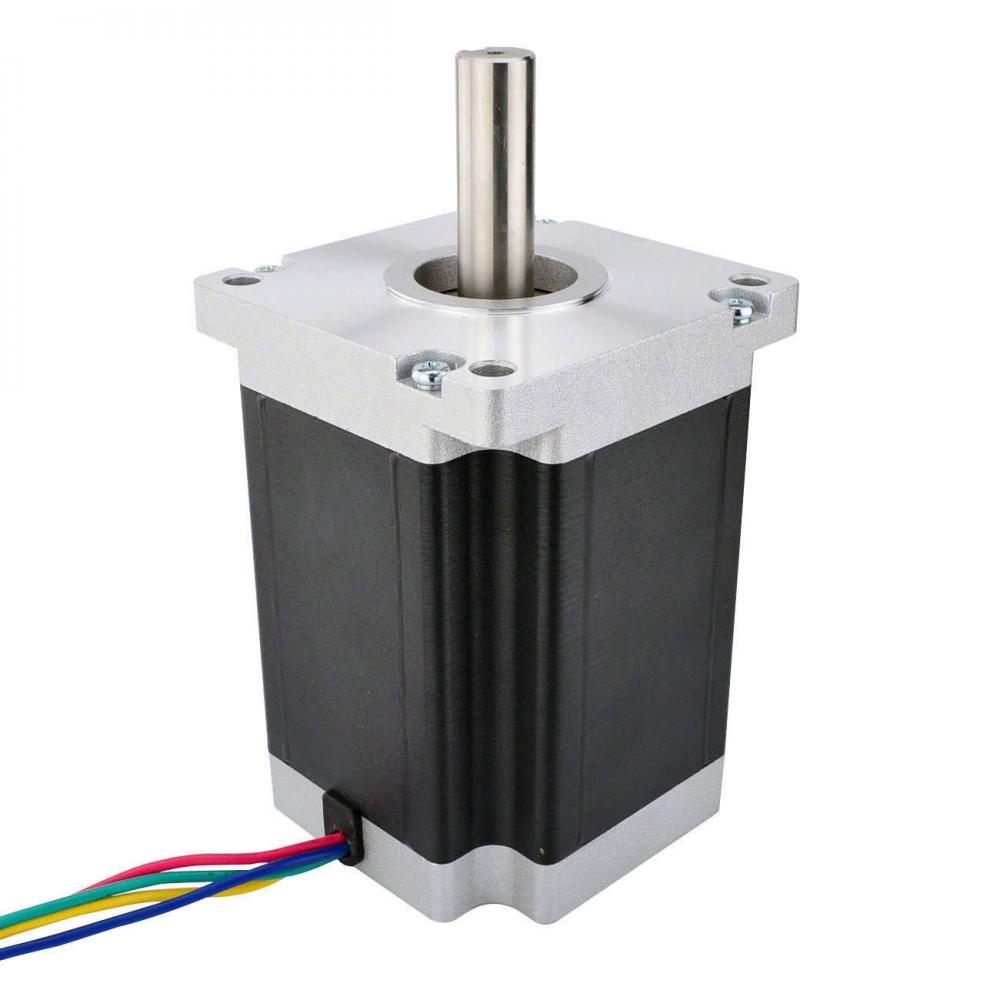

42HS59-6004S
42HS59-6004S
42HS59-6004S
High Torque, Keyway shaft,
Nema 42 - 110x110x150mm,
1.8 deg. (200 steps/rev),
Rated current 6.00A, 2 Phase Bipolar,
Holding torque 22Nm(3115oz-in)
USD 208.45
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Ncm) | 2200 |
| Holding Torque(oz.in) | 3115 |
| Inductance(mH) | 14 |
| Phase Resistance(ohm) | 0.8 |
| Rated Current(A) | 6 |
| Physical Specification | |
| Shaft Type | Key-Way |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 55.37 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 10900 |
| Single Shaft/Dual Shaft | Single Shaft |
| Frame Size(mm) | 110x110 |
| Body Length(mm) | 150 |
