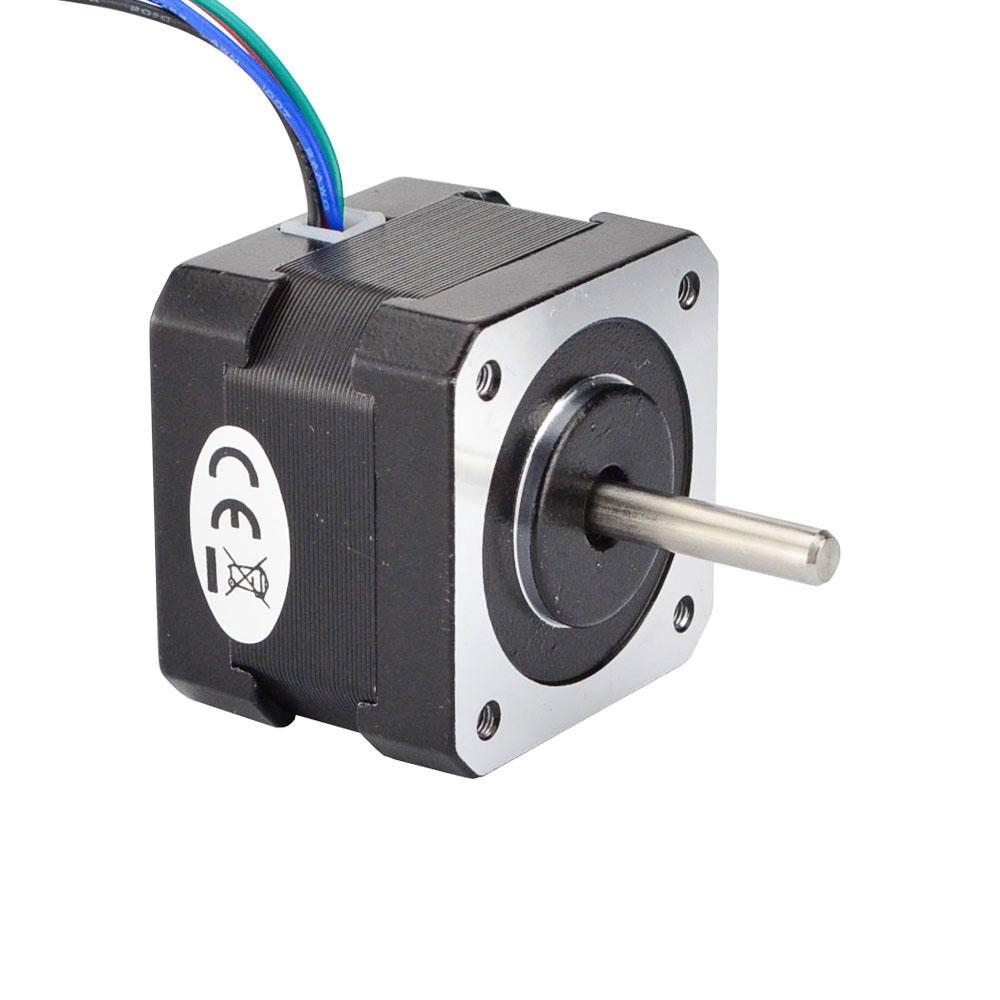

17HS13-1334S

17HS13-1334S

High Torque, Long Life, Nema 17 - 42x42x34mm, 1.8 deg. (200 steps/rev), Rated current 1.33A, 2 Phase Bipolar, Holding torque 22Ncm(31oz-in)
USD 13.55
Availability: 61
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 22
Holding Torque(oz.in) 31
Inductance(mH) 2.5
Phase Resistance(ohm) 2.1
Rated Current(A) 1.33
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 400
Weight(g) 220
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) 42x42
Body Length(mm) 34
